10

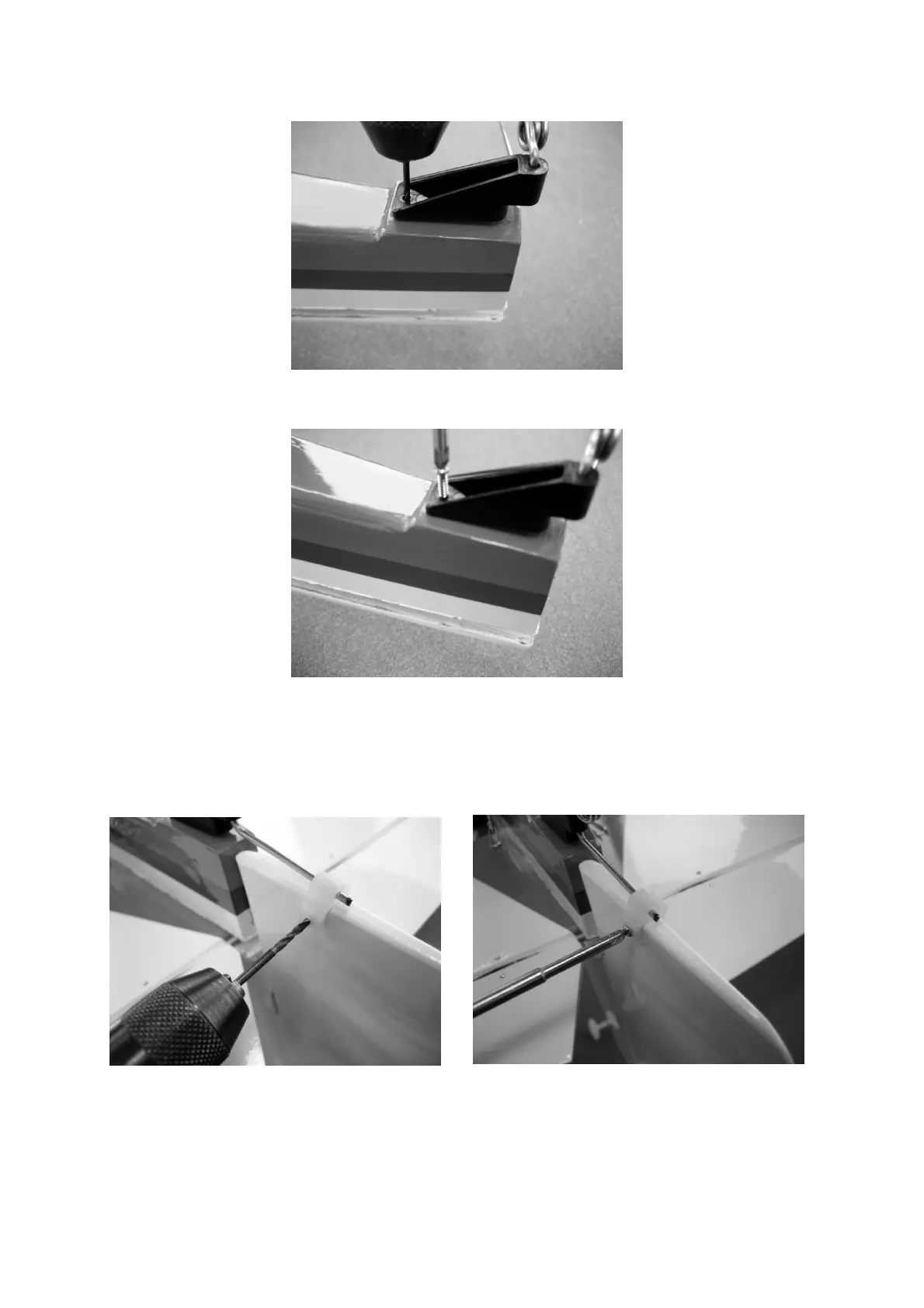

Fix the tailwheel unit to the fuselage using the two retaining screws provided.
The driver lug can now be attached to the bottom of the rudder, so that movement of
the rudder is transferred to the tailwheel. Fit the plastic lug on the projecting wire, and
fix it to the rudder using a single pan-head screw.
Use a pair of side-cutters to snip off the excess length of the driver wire at a point
about 2 mm aft of the plastic lug.
