SNOWBLOWERS, 28”, 34", 38" & 44"
FAN DRIVE

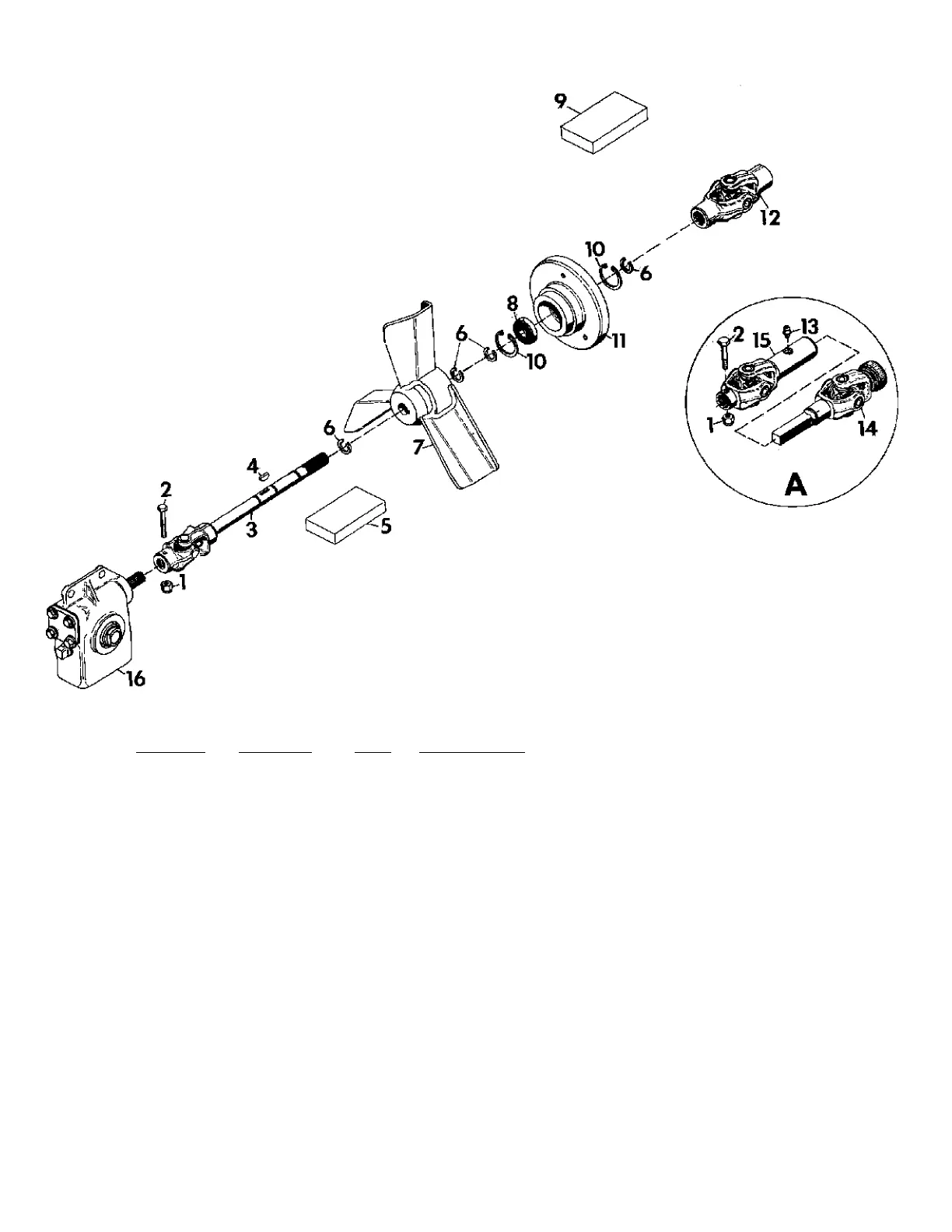

SNOWBLOWERS, 28", 34", 38" & 44"
FAN DRIVE
ITEM NO.
PART NO. QTY. DESCRIPTION
1 419454 2 Nut, Lock; 1/4-20 Washer Insert
2 180044 1 Bolt, Hex; 1/4-20 x 2
3 20992 1 Weldment, Drive Shaft
4 124553 1 Key, Woodruff; 1/4 x 1 Hard No. 15
5 20573 1 Kit, Repair Universal Joint Neapco 1605x
12134 1 Kit, Repair Universal Joint Rockwell Std.
6 14987 4 Ring, Retaining; 1.00 Shaft
7 19731 1
Weldment, Fan
8 19741 1 Bearing, Ball; 1.000 x 1.850 x .472
9 24560 1 Kit, Repair Universal Joint (Neapco)
10 20859 2 Ring, Retaining
11 19740 1 Support
12 21168 1 Assembly, U--Joint; Double; Applies to 28" & 34" Only
13 411027 1 Fitting, Lube; 1/4-28 Lube; 1/4-28
14 20727 1 Joint, Universal; Rect. Shaft
15 20728 1 Joint, Universal; Rect. Tube
16 Refer to Reel Drive Assembly
NOTE: Circle A Pertains to 38" & 44" Riding Snowblowers Only
