GB - 9
3. Push the carrier frame into the lift arms and engage the
front lock latches.
4. Connect the hydraulic lift cylinder to the deck lift arm
with the pin and spring clip that shipped with the deck.
NOTE: Use the attachment lift switch, if needed, to align the
lift cylinder and deck lift arm.
5. Use the attachment lift switch to raise the deck and pull
it back into the rear slots on the lift arms.
6. Turn off the engine.
7. Make sure the rear (gold plated) lock latches engage the
mower deck.

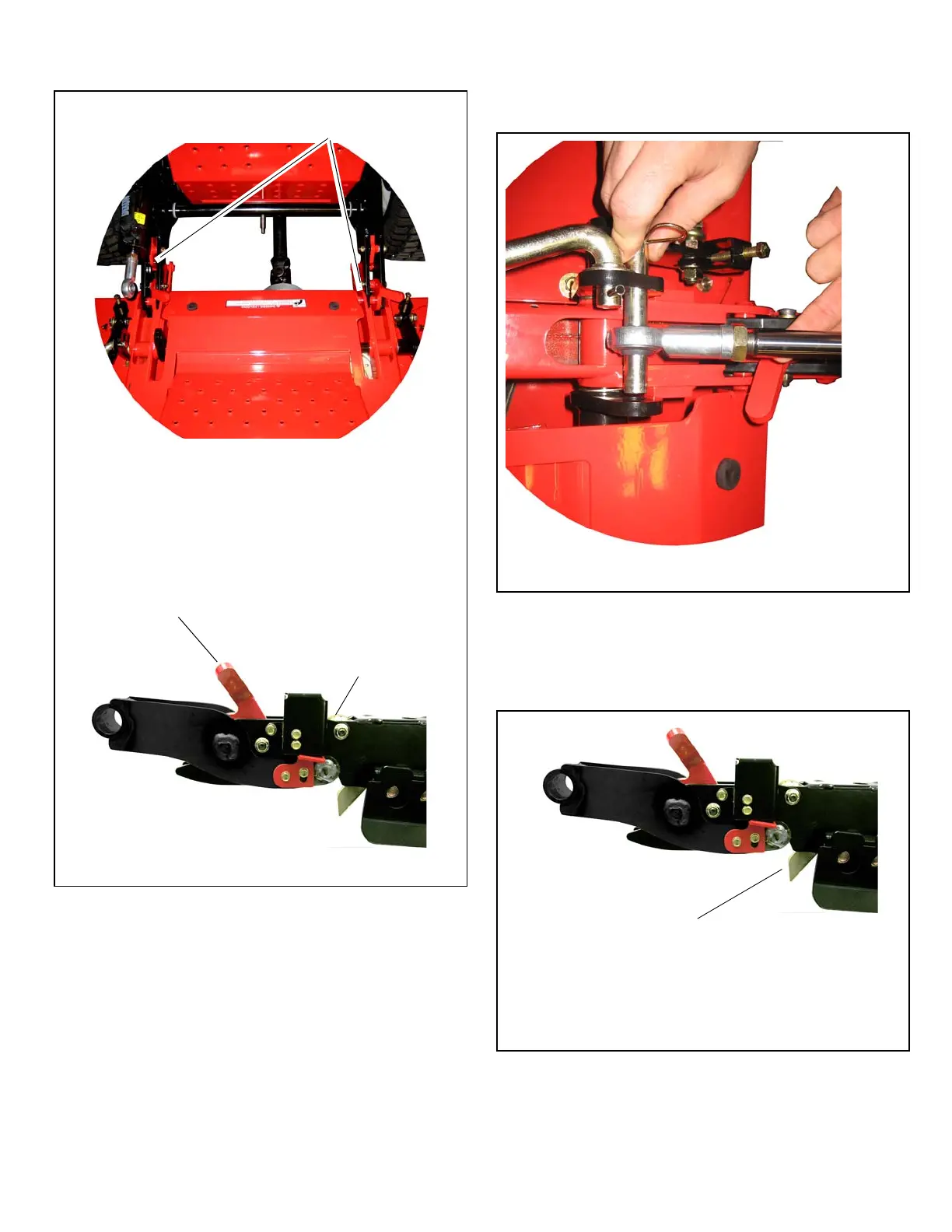

Figure 6
Deck pushed into lift
arms on the power unit.
Close the front (red) lock
latch.
NOTE: This illustration shows the rear portion
of the deck carrier connected to the lift arm on
the power unit. Make sure both latches are
closed before operating the deck.
Rear (gold plated) lock
latch will close when
deck is pulled into the
lift arms with the
attachment lift switch.
Rear (gold plated) lock latch in the
engaged position. Have the latch
in this position when using
attachments.
Figure 7
