GRE Atlantis - Page 18

T3 x 2
PV2
PE
CN
PE
T2 x 4
PV2
1
2
PE
PE
4.5
4.6
PV2
PV2 PV2PE
PSP B2
PSO
PTM
CN
PE
T2 x 4
T2 x 4
T3 x 2
LO
PE
1
3
2
4
PE
CN
PV2
PSP
PVO
B2
PTM
PV2 PTM
CN
PE PTMT3 x 2 T3 x 2
PE
PV2 PV2
PSP

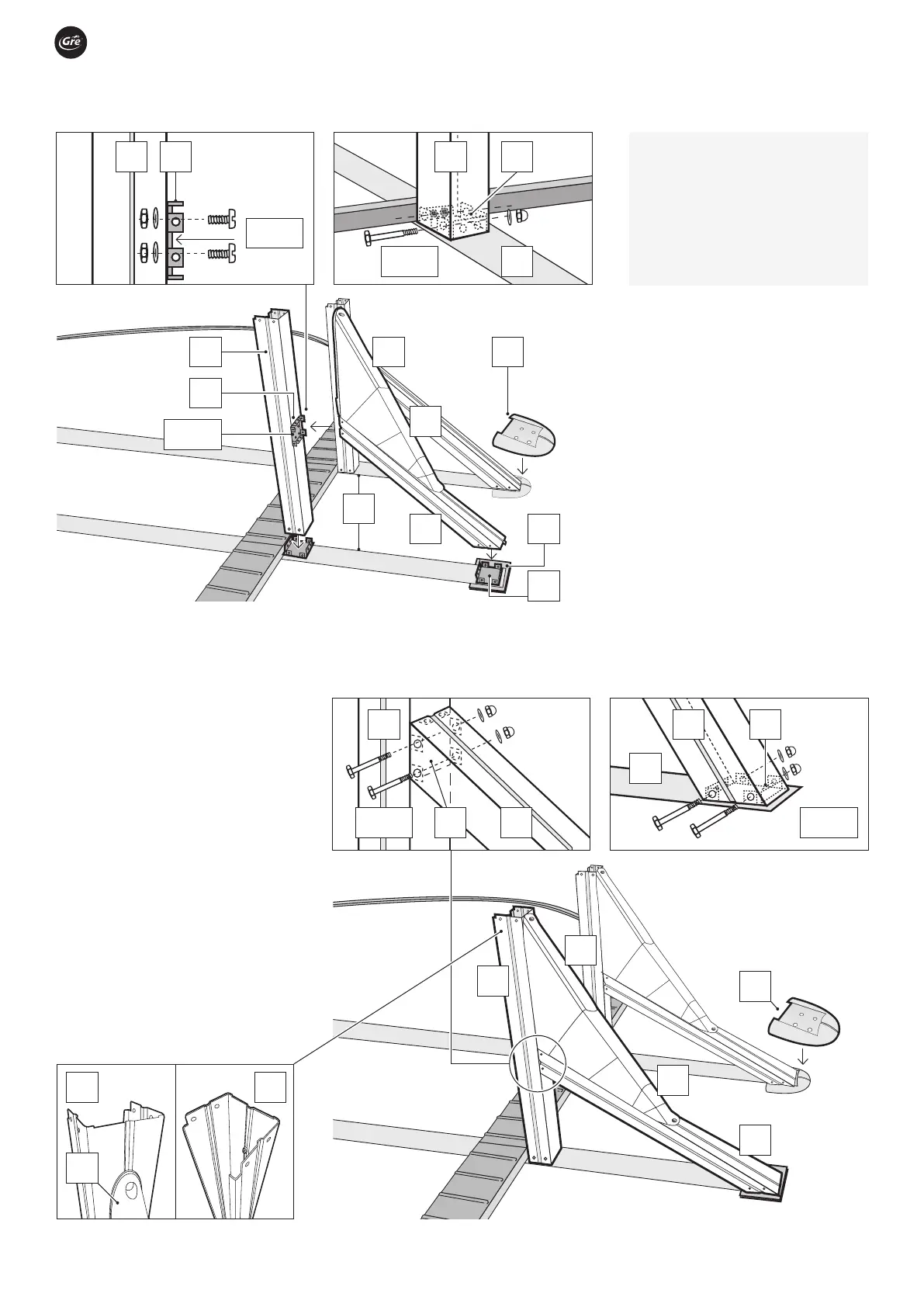

assembly instructions
This part of the structure is based on
square-sectioned upright supports (PV2)
shored up by a cross-support (PTM). Both are
attached to the struts by dropforged parts
(PE). Each upright support should be fitted as
follows:
1- Using T2 screws, attach the outer part of a
square-sectioned upright support (PV2) to one
of the drop-forged parts (PE), with the longest
tab horizontal and uppermost.
2- Place this upright on the drop-forged part
on the inner part of the strut (attached to the
metal bracket) and hold in place with two
through screws (T3). Each strap has 4 rivet-
ed pressed parts (PE) that must be situated
with their tabs upwards. Position the straps
in the entire length. The belts are transversally
placed in the straight area of the pool,
parallel to each other.
3- Take a cross-support (PTM+PSP+PVO)
and fit the squarer end to the drop-forged
part half-way up the upright support (PV2)
already fitted.
4- Use T3 screws to hold the more rectangu-
lar end of the cross-support (PTM) in place on
the drop-forged part at the end of the rele-
vant strut. Once the whole upright is in place,
tighten all screws firmly. Repeat this process
on all the struts until the straight part of the
pool is completed. (B2) ENVELOPING JOINT
PROTECTORS STRAIGHT PART: When all
the vertical perfiles of the straight part are
fixed, you can install the enveloping joint
protector B2 to the bottom of the PTM which
combine to the strap CN. NOTE: (LO) If the
ground is not firm (concrete, etc.), we rec-
ommend placing a tile under the ends of the
struts (CN) so that the cross-supports (PTM)
will not sink down under the weight of the
water in the pool.
FITTING THE UPRIGHT SUPPORTS IN
THE STRAIGHT PART:
1000 x 550 cm= 8 x (PV2 & PTM)
915 x 470 cm = 8 x (PV2 & PTM)
800 x 470 cm = 6 x (PV2 & PTM)
730 x 375 cm = 6 x (PV2 & PTM)
500 x 300 cm = 4 x (PV2 & PTM)
610 x 375 cm = 4 x (PV2 & PTM)
18
