4.7
CH PV2
SKIMMER
PU1
PV TPUPI
*
CN PV2 PTM B2
T C
C
PSP
PSO
EM2 PU1 T PU
T x 3
EM1
TT
EN
* Important! Before assembly, deburring, using
a file and sandpaper, the edge of the closing
wall (CH).

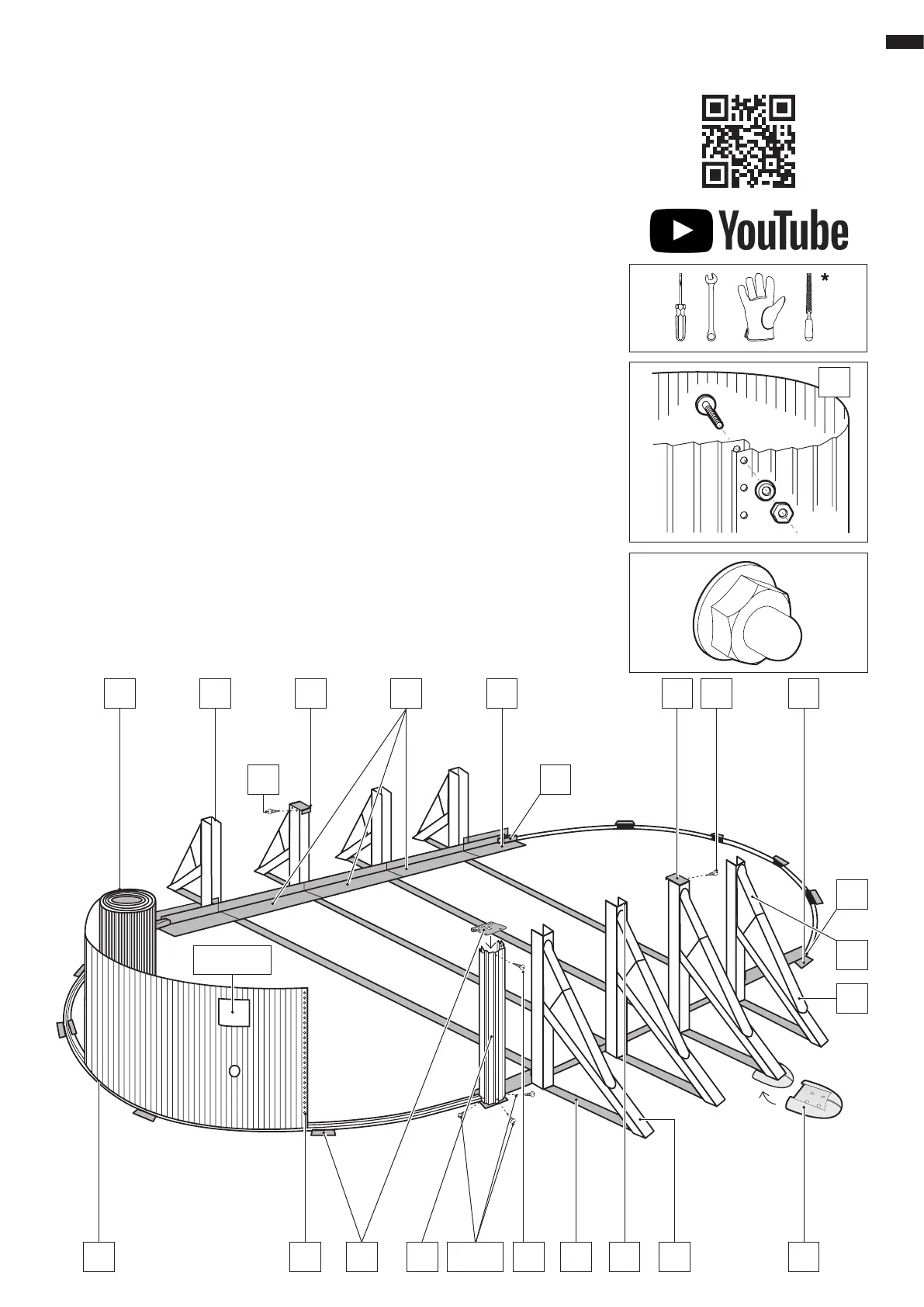

FITTING THE WALL PLATING: Fit the wall plating
CH vertically on a piece of cardboard (to avoid dam-
aging the area prepared for the installation (checking
that the cut-out for the skimmer is at the top of the
wall). DO NOT FULLY UNFOLD THE WALL PLATING
as this may complicate assembly. Fit the end into
place so that the skimmer cut-out is at the middle
of one of the curved parts, between 2 joining-pieces
(PU).
ATTENTION: For oval swimming pools 610 x 375 x
120 cm and 500 x 300 x 120 cm MAKE SURE that
the SKIMMER hole is centred between 2 PU joint
pieces (NOT AT THE MIDDLE OF A HALF CIRCUM-
FERENCE) before continuing with the assembly.
Attach the plating provisionally to the 4 upright
supports (PV) at the 4 corners (point C) of the
straight part using 4 joining-pieces (PU), each with
3 screws (T) at the bottom and one screw (T) at the
top. Attach the plating provisionally with a T screw to
one of the upright supports (PV2) at the middle on
both sides in the straight part using a joining-piece
(PU1) to stop it from falling. Fit the wall plat-
ing all around the pool and screw the
ends together, ensuring that the screw
heads face inwards and the washers and
blind nuts outwards. (Tighten the screws
without distorting the material). If the
wall plating is too long or too short, adjust
the bottom section-pieces in the curved part
of the pool to ensure that they are properly
butted against each other and against the
metal brackets where the curved parts meet
the straight part. ATTENTION: If the lower
profiles have to be cut, this must be shared
among the two half circumferences, me-
aning, cutting half of the profile dimension
from right half-circumference and the other
half from the other left half-circumference.
Before cutting, make sure that around all the
pool the sheet steel is fitted into the slot of
all the curved profiles and is well fitted to the
metallic angles inn the straight area. If the cir-
cumference is too large to close the steel wall
even when the profiles are joined together,
only then must they be cut out.
installation
19
