We recommend you assemble the pool between two or three persons and on a wind-free day. The use of gloves for the
installation is recommended for safety. THE ENTIRE PROCESS SHOULD BE CARRIED OUT ON FIRM AND LEVEL
GROUND, BEFORE EXCAVATING THE TRENCHES

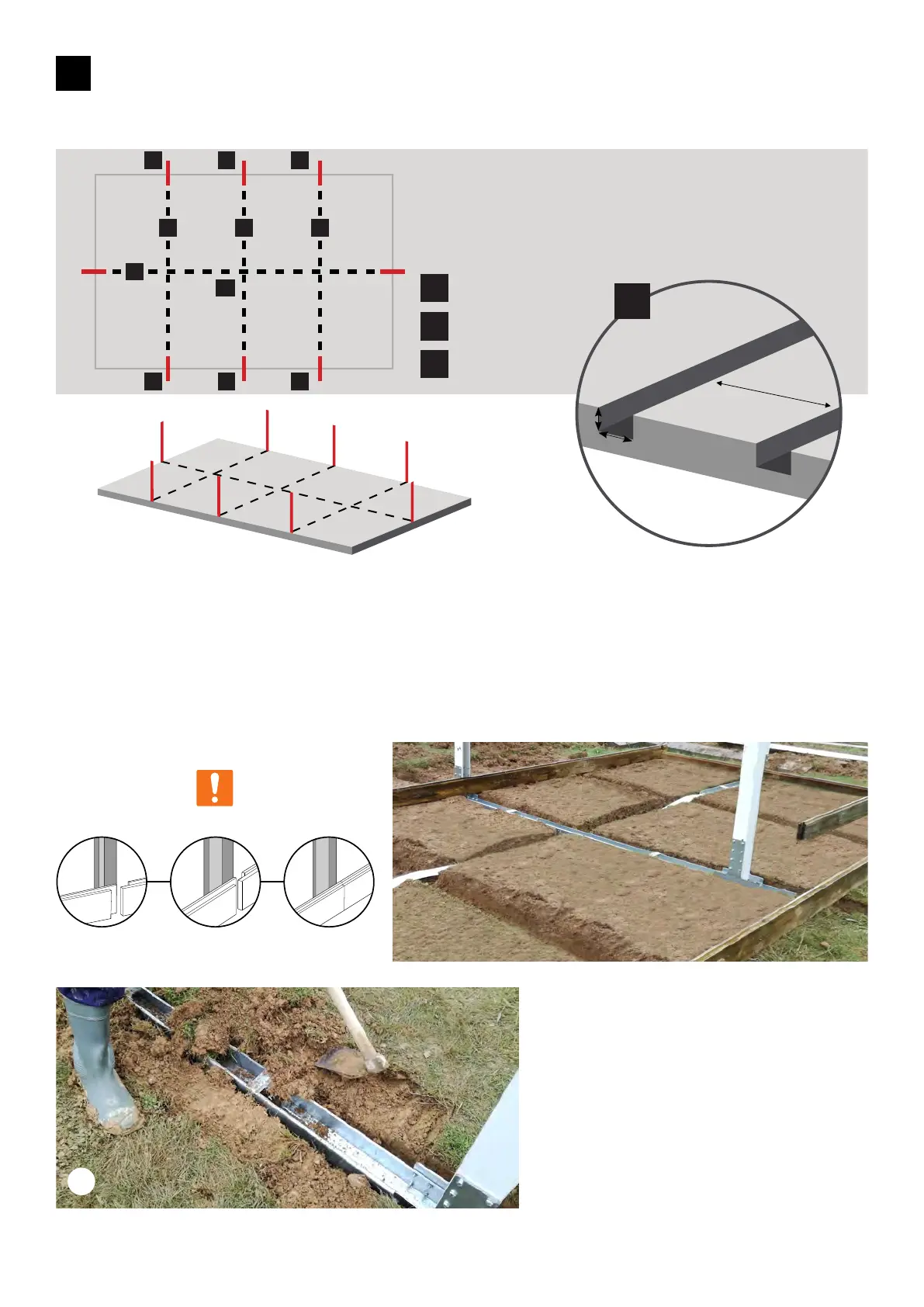

EXCAVATION OF THE TRENCHES (Z) FOR THE COLUMNS (C) AND METALLIC STRAPS (CN).
Dimension of the foundations: ZA = 420 cm ZB = 700 cm
The distance between them is 80 cm.
420cm
700cm
420cm
700cm
Trenches
Columns
C.Metallics
Z
ZAZA ZA
ZB
C
CN
C
C
C
C
C
C
DIRECTLY ON THE GROUND
A
15cm
20cm
80cm
Z
IMPORTANT: When excavating
the foundations, the rectangular
space reserved for situating
the AP that should be buried 5
cm and transversally fixed with
their respective PG should be
excavated(*). All the structural
system should be perfectly levelled
(columns and internal structure,
beams).
(*)
CN
