54

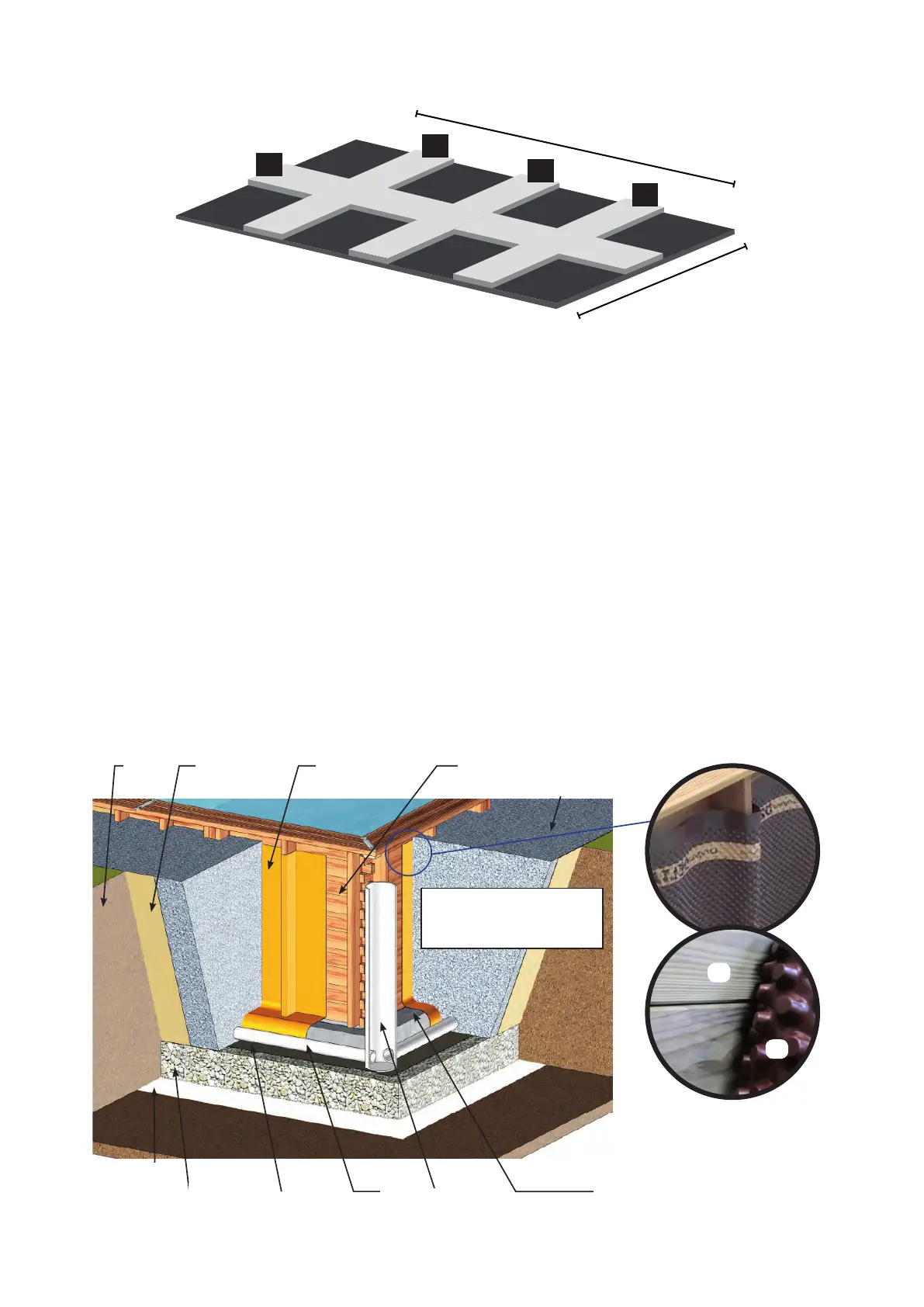

The (Y) concrete sleeper should have the following dimensions: YA= 421x50x15cm YB= 718x50x15cm.
All the sleepers must be levelled with each other for the pool to be perfectly level. The indicated dimensions and distances
must be respected for correct assembly.
When the concrete is dry, the pool structure can be placed on top. The distance between the centres of the columns is
1000 mm.To do that, follow the next pages of this manual.
When the structures have been assembled on top of the concrete slabs, the entire structure must be fully covered with
soil/sand. The terrain must be well-compacted for correct assembly of the pool. Pieces (AP) must be covered by at least
2cm of sand.
PARTIAL OR COMPLETELY IN-GROUND INSTALLATION
According to the nature of the land, you should install a peripheral drainage and connect it to a decompression well. The well will be
excavated before the construction of the pool to avoid that the excavations fill with water during the works. It should be near the pool,
a few centimetres lower than the deepest point of the same and reach up to the surface. The decompression well is located at the
most humid point. It acts as an overflow in the case of water infiltrations or clay soil, starting from the fact that water rises quicker
through a tube than through the soil.
Natural
ground
Anti-roots or felt
Protection and
alveolar draining
roll of HDPE
Wood
frame
Concrete
slab
Descompression
wel
l
Peripheral
drainage
Watertight
film
Layer of
stabilized
gravel
Geotextile
blanket
Draining gravel
ø10-30
Respect the direction of the
alveolar protection roll, with
the bubbles against the wall, to
allow the wood to “breathe”.
7188cm
4218cm
YA
YA
YB
YA
1
2
1- Wood frame
2- Roll of alveolar protection an
drainage of HDPE
*In the case of installing any
accessory in contact with the
wood, the use of the alveolar roll is
necessary for correct protection.
