57
x3A
PG
E
*

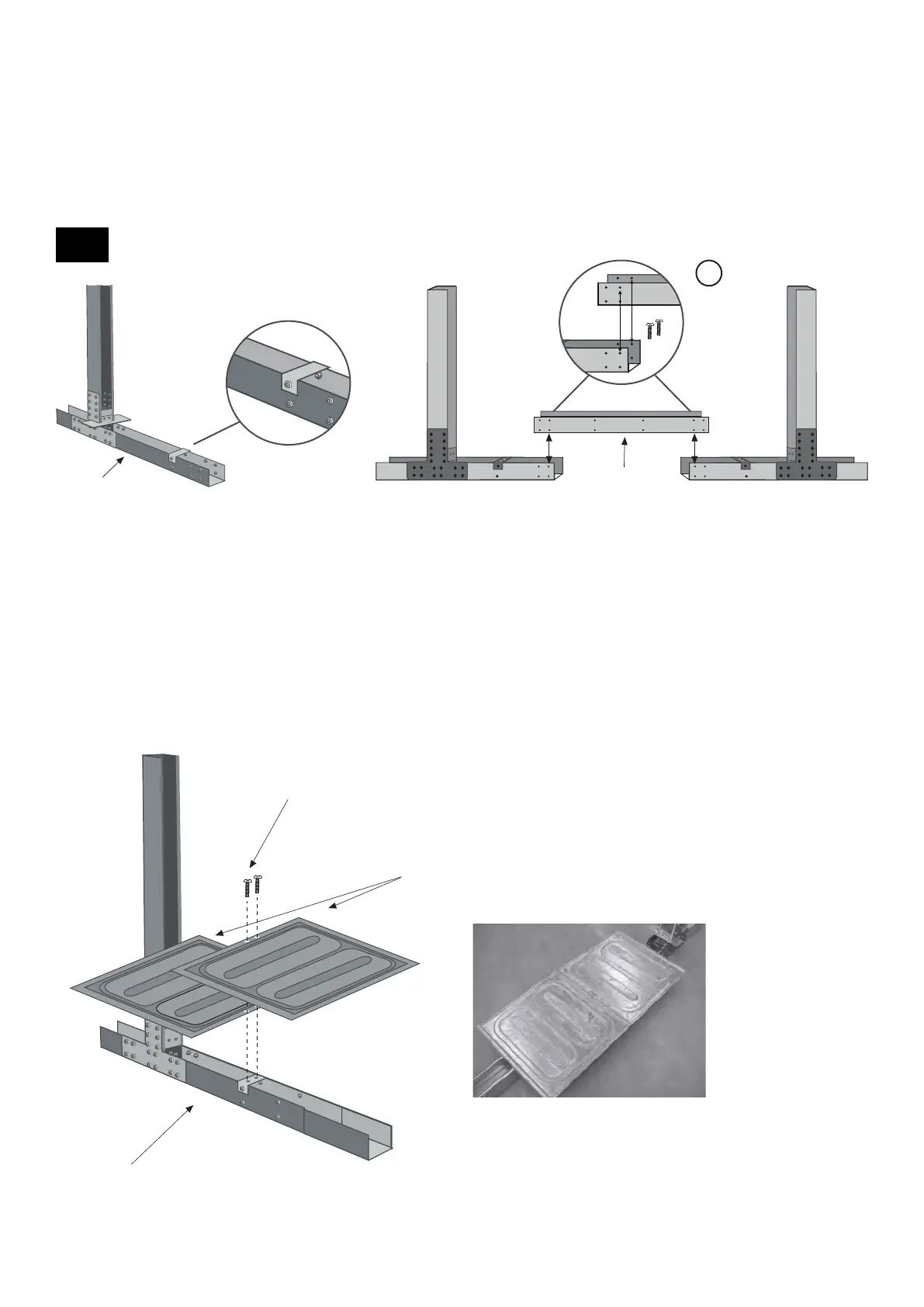

ASSEMBLY OF THE
CROSSBASE AND
THE COLUMNS
AP
TM640
x2
PG
IMPORTANT:
Install in the following order:
1- Metallic belt (x1A) lengthwise, so that the belt is supported on the bottom of trench.
2- Install the other three elements (3B) as indicated by the drawing.
• Take one crossbar type Part E and fix it to the PG crossbar with the TV screws.
• Lastly, place the other PG crossbar with the previously installed column PV1335.
NOTE: there is only one crossbar
between the PG crossbars (Part E)
To assemble part PG with part E:
Make the two holes situated at the end of part PG coin-
cide with those situated inside (second line) of part E.
To Next Page
