We recommend you assemble the pool between two or three persons and on a wind-free day. The use of gloves for the
installation is recommended for safety. THE ENTIRE PROCESS SHOULD BE CARRIED OUT ON FIRM AND LEVEL
GROUND, BEFORE EXCAVATING THE TRENCHES

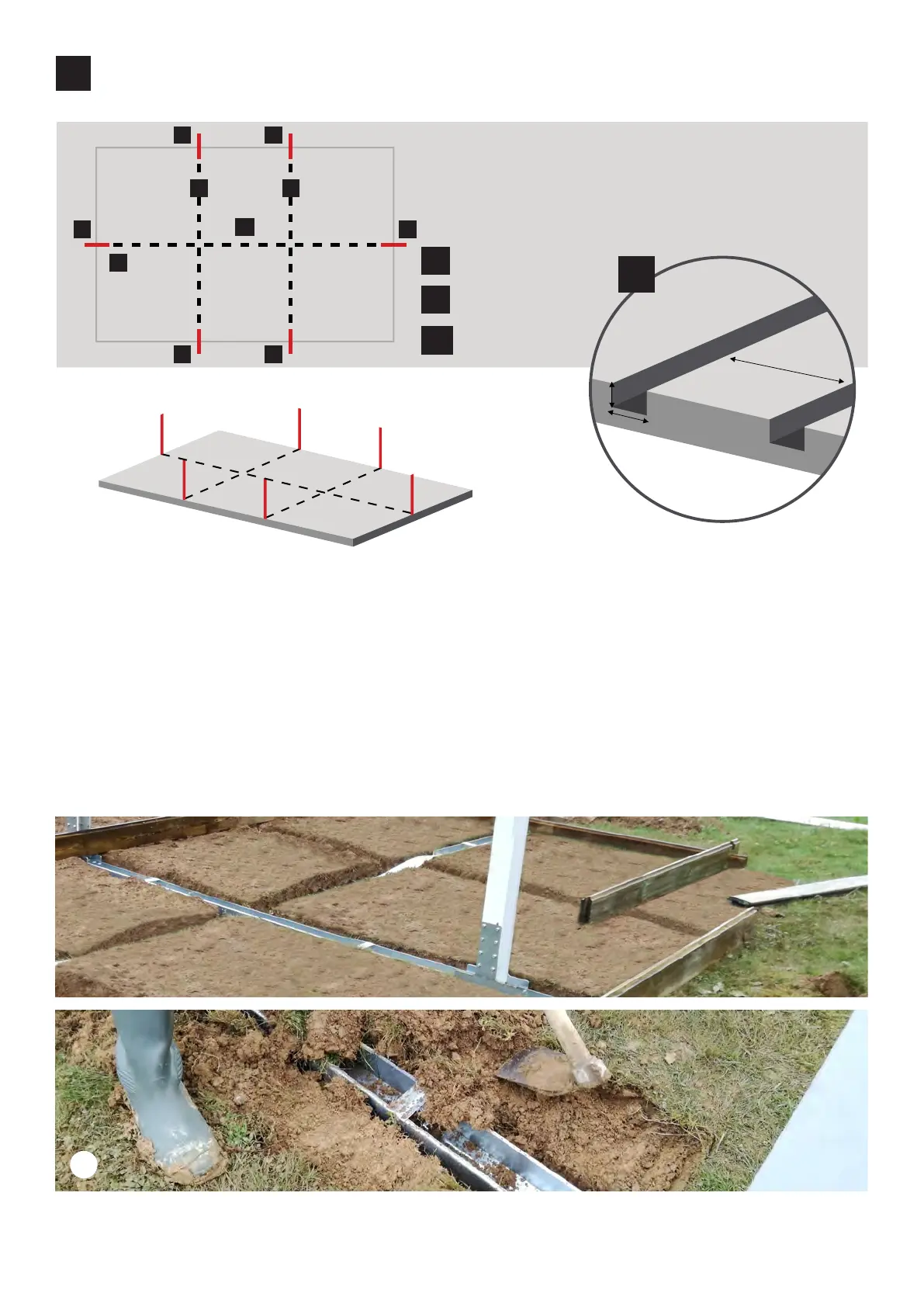

EXCAVATION OF THE TRENCHES (Z) FOR THE COLUMNS (C) AND METALLIC STRAPS (CN).
Dimension of the foundations: ZA = 334 cm ZB = 483 cm
The distance between them is 125 cm.
IMPORTANT: When excavating the foundations, the rectangular space reserved for situating the AP that should be buried
5 cm and transversally fixed with their respective PG should be excavated(*). All the structural system should be perfectly
levelled (columns and internal structure, beams).
A
DIRECTLY ON THE GROUND
(*)
334cm
483cm
334cm
483cm
Trenches
Columns
C.Metalics
Z
ZAZA
ZB
CN
C
CN
C
C
C C
C
C
15cm
20cm
125cm
Z
