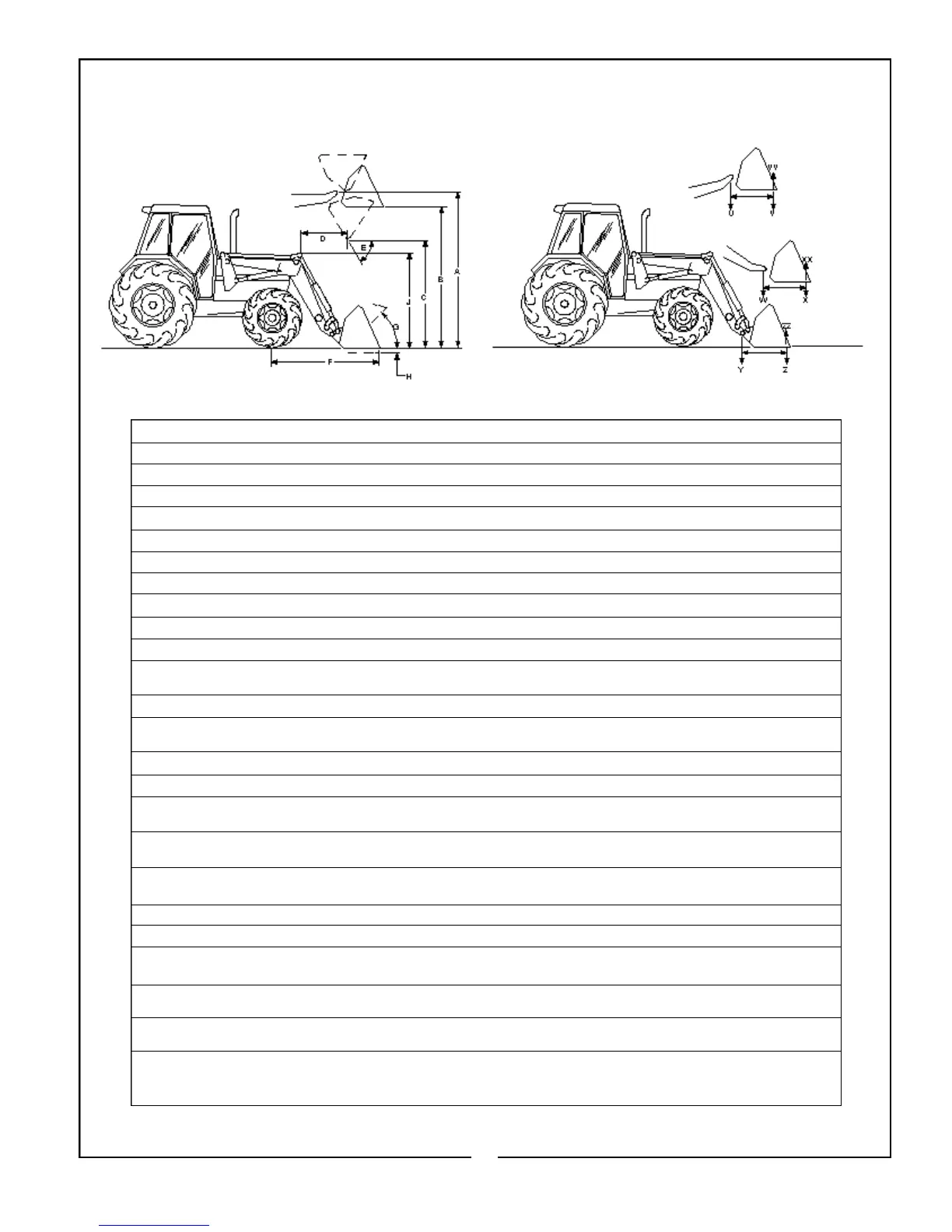

SERIES LOADER 3545 4045 5045 6045
A. Maximum Lift Height - Measured at Pivot Pin 120” 126” 133” 153”
B. Maximum Lift Height - Under Level Bucket 110” 116” 123” 144”
C. Clearance with Attachment Dumped 45° 92 in. 90” 97” 105 125”
D. Reach at Maximum Height 23” 36” 30” 30”
E. Maximum Dump Angle 45° 45° 45° 42°
F. Reach with Bucket on Ground 77 in. 78 in. 75” 83”
G. Maximum Rollback Angle 25° 25° 25° 25°
H. Digging Depth 3.5 in. 3.5 in. 7” 6”
J. Overall Height in Carry Position 52 in. 63 in. 66” 76”
U. Lift Capacity to Maximum Height - At Pivot Pin 3000 lbs. 3500 lbs. 4000 lbs. 4950 lbs.
V. Lift Capacity to Maximum Height - 31.5” 1950 lbs. 2200 lbs 2560 lbs. 3075 lbs.
Forward of Pivot Pin
W. Lift Capacity to 59” Height - At Pivot Pin 3900 lbs. 4100 lbs. 5000 lbs. 6500 lbs.
X. Lift Capacity to 59” Height - 31.5” 2500 lbs. 2950 lbs. 3500 lbs. 4325 lbs.
Forward of Pivot Pin
Y. Breakout Force - At Pivot Pin 4300 lbs. 5000 lbs. 6000 lbs. 8450 lbs.
Z. Breakout Force - 31.5” Forward of Pivot Pin 2750 lbs. 3500 lbs. 4280 lbs. 5400 lbs.
VV. Rollback Force at Maximum Height - 3550 lbs. 5100 lbs. 4800 lbs. 5820 lbs.
31.5” Forward of Pivot Pin
XX. Rollback Force at 59” Height - 4050 lbs. 5300 lbs. 5600 lbs. 6180 lbs.
31.5” Forward of Pivot Pin
ZZ. Rollback Force at Ground Level - 3550 lbs. 3600 lbs. 3750 lbs. 3840 lbs.
31.5” Forward of Pivot Pin
Raising Time - Ground Level to Full Height 5 sec. 5 sec. 5 sec. 9 sec.
Lowering Time - Full Height to Ground 4 sec. 3 sec. 3 sec. 6 sec.
Bucket Dumping Time - Full Rollback 5 sec. 5 sec. 5 sec. 6 sec.
to Full Dump
Bucket Rollback Time - Full Dump 3 sec. 3 sec. 3 sec. 4 sec.
to Full Rollback
Tractor HP Range 40 - 60 40 - 70 60 - 90 70 - 110
2 & 4 WD 2 & 4 WD 2 & 4 WD 2 & 4 WD
Based On Tractor Hydraulic System:
Pressure 2850 psi 2850 psi 2850 psi 2850 psi
Flow 11 gpm 11 gpm 16 gpm 29 gpm
Table 1-1 TECHNICAL SPECIFICATIONS
9
