5-8 OPTIONAL BUCKET ITEMS ASSEMBLY
29
SPILL GUARD ATTACHMENT
1. Place spill guard on bucket & center.
2. Mark hole centers for attaching fasteners. Allow
clearance for side cutting edges on bolts in side
plates if necessary.
3 . Remove spill guard and drill 9/16” holes. Install spill
guard and torque fasteners per Torque Specifications,
page 30.

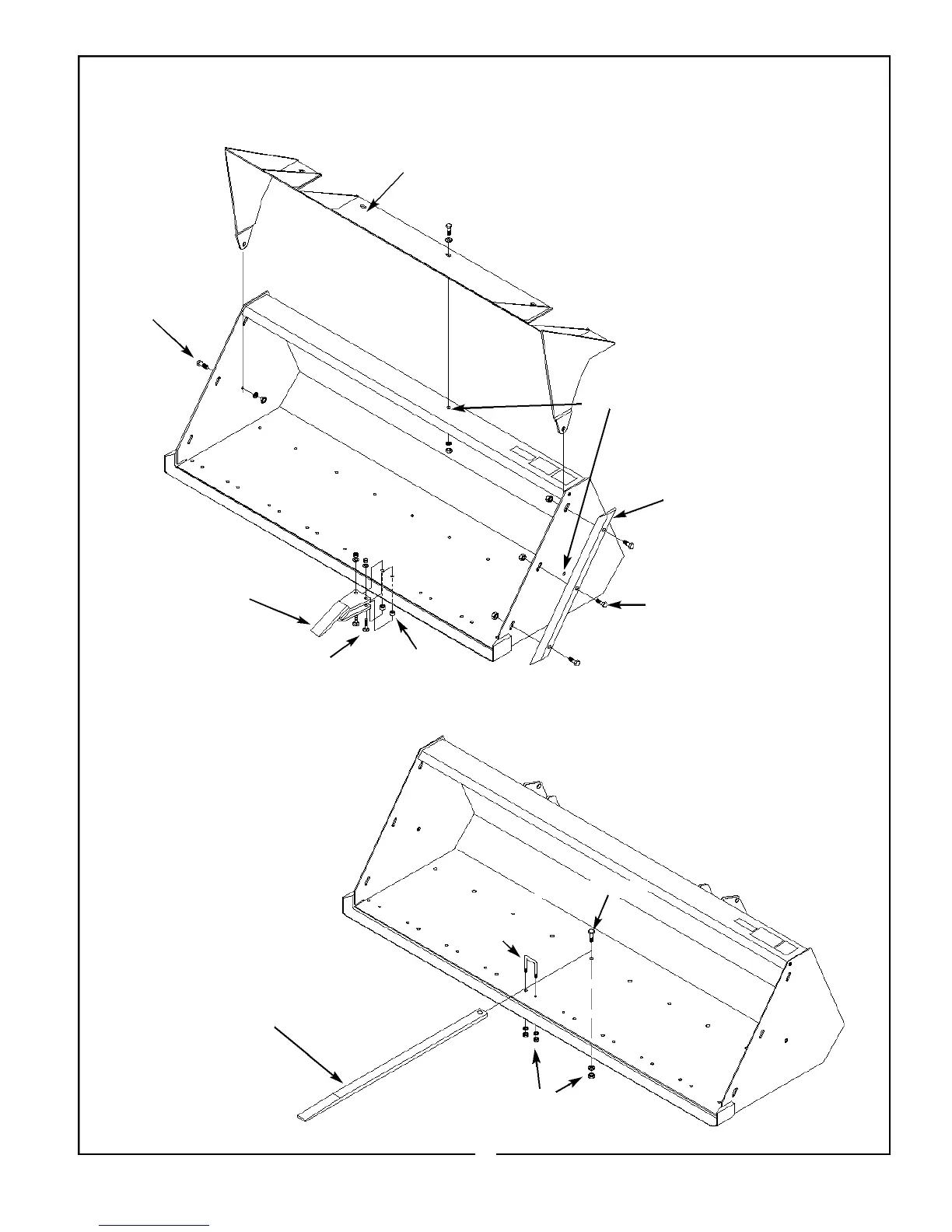

SPILL GUARD
9/16” Holes (7Places)
1/2 x 1-1/2” Bolt,
Lockwasher & Nut
1/2 x 1” Bolt & Locknut
SIDE CUTTING EDGES
DIGGING TEETH
3/8 X 2-1/2” Bolt,
Lockwasher & Nut
Bushings
TINE TEETH
3/8” U-BOLT
1/2 X 1-1/2” BOLT
Lockwashers & Nuts
