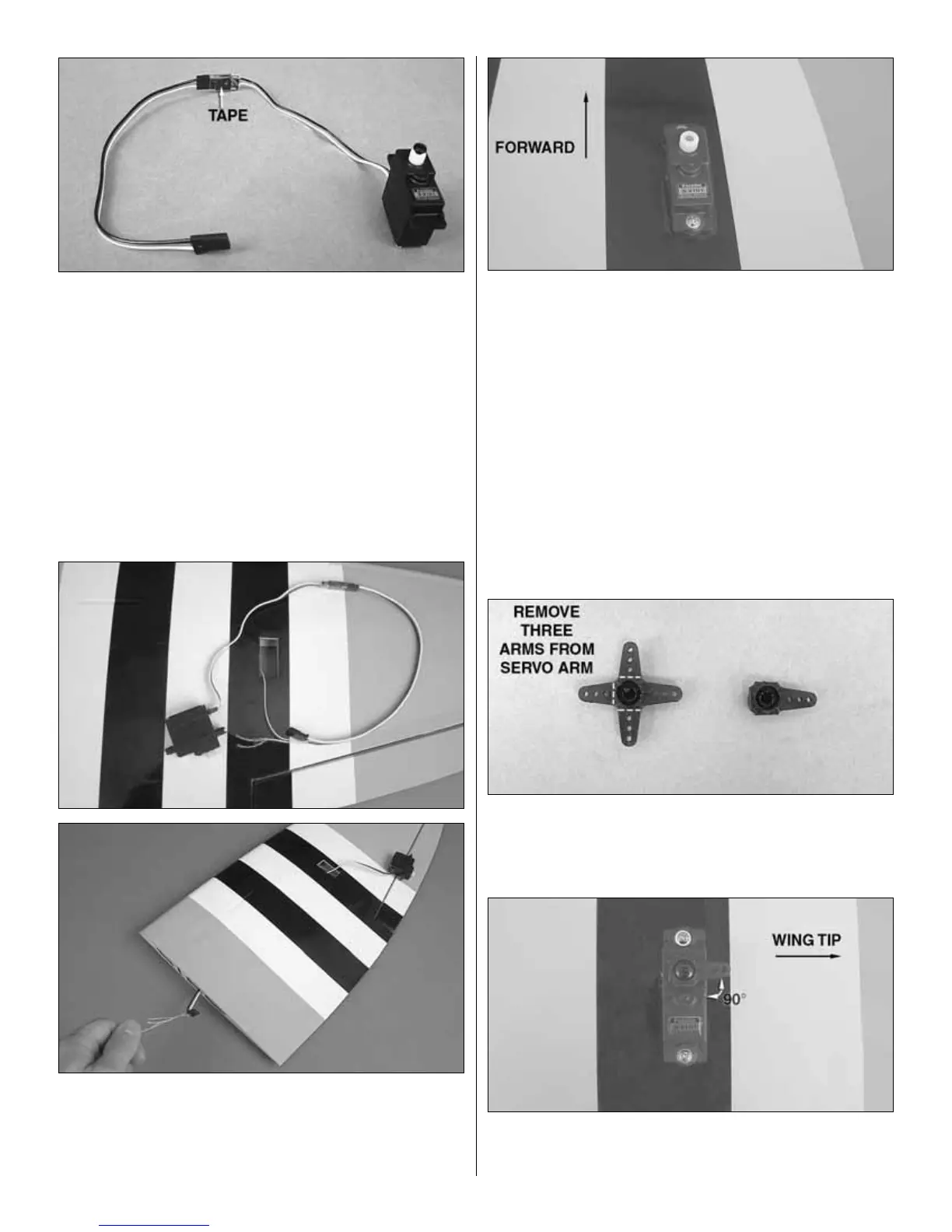

❏ 2. Attach a 9" [230mm] servo extension to each aileron
servo. Secure the connection with tape or heat-shrink tubing
(not included).
❏❏3. Pull the outside end of the servo wire string through
the servo bay opening. Tie the string to the end of the servo
extension. The other end of the string is taped to the root rib
of the wing panel. Remove the tape and use the string to pull
the servo wire through the wing panel.
❏❏4. Install the rubber grommets and eyelets that were
included with the servo. Mount the servo in the servo bay
and drill a 1/16" [1.6mm] hole through each mounting hole
location. Remove the servo and install and remove a servo
mounting screw (included with your servo) into each hole.
Apply a couple drops of thin CA into the holes to harden the
wood. When the CA has hardened completely, install the
servo into the servo bay using the servo mounting screws
with the servo spline facing forward.
❏ 5. Repeat steps 3 and 4 for the other wing panel.
❏ 6. Cut three arms from a four-armed servo arm for
each servo.
❏ 7. Use your radio system to center the servos. Install the
servo arms perpendicular to the servo case pointing to the
wing tips.
9
