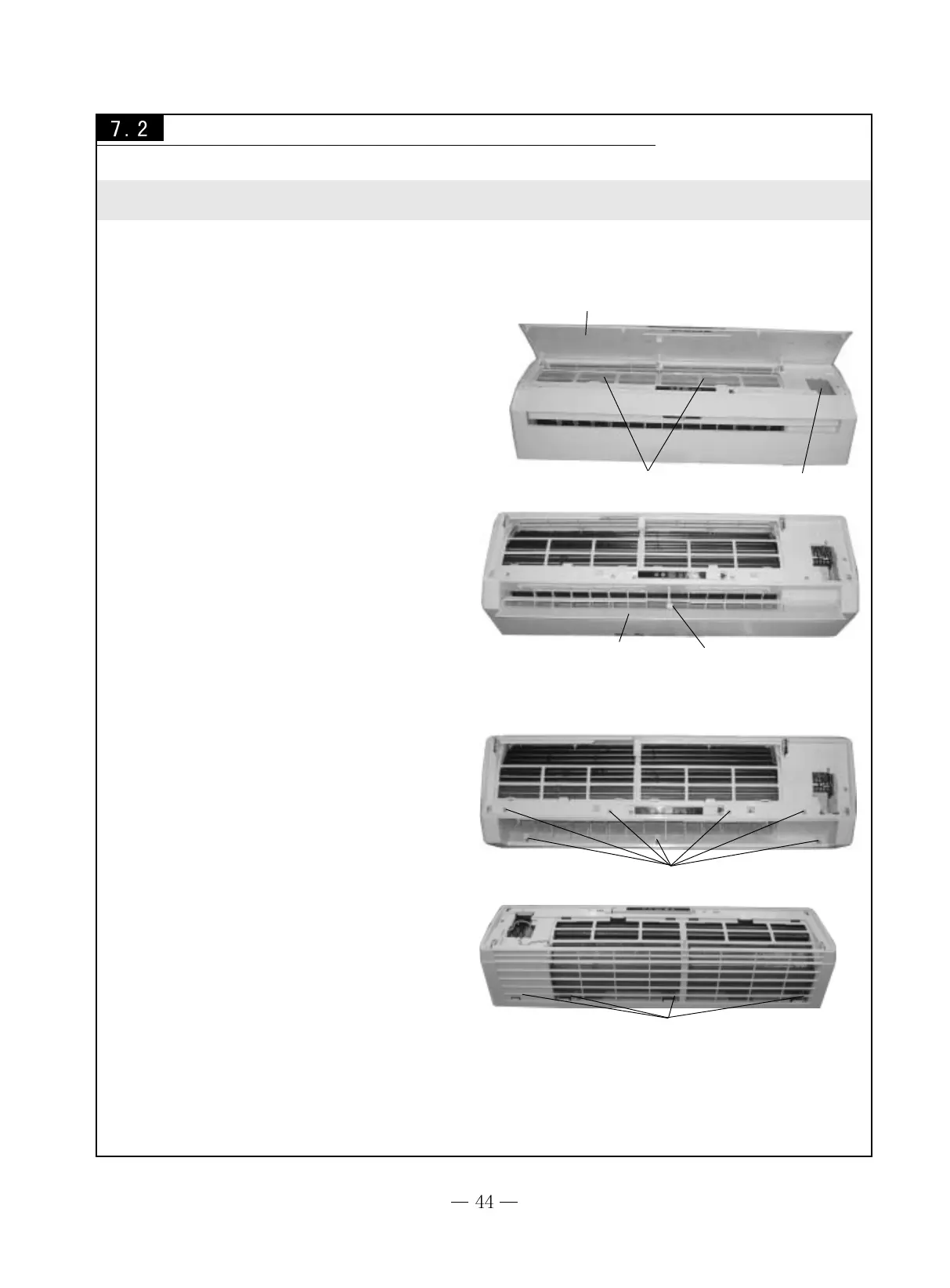

18K(MC)Disassembly procedures for indoor unit
1.Disassemble the front panel
Open the front panel, slightly press the axial of
both sides, then to make the axial slide, can take
down the front panel. Push the filter onwards, can
take down the front panel. Push the filter, can take down
the filter.
Unscrew one screw from top cover, can take it down.
Front panel
Filter
Top cover
Air guide board
Bearing sleeve
Clasp
Screw
2.Disassemble the air guide board
Use the screwdriver to push the axial,
hold both side of air guide board. Then can
take them down.
3.Disassemble the front case
Open the screw cover, screw off 5pcs screw
fix on the front case, loosen the rear clasp, lift
it up, can take down it.
