Operating Procedures / Photos

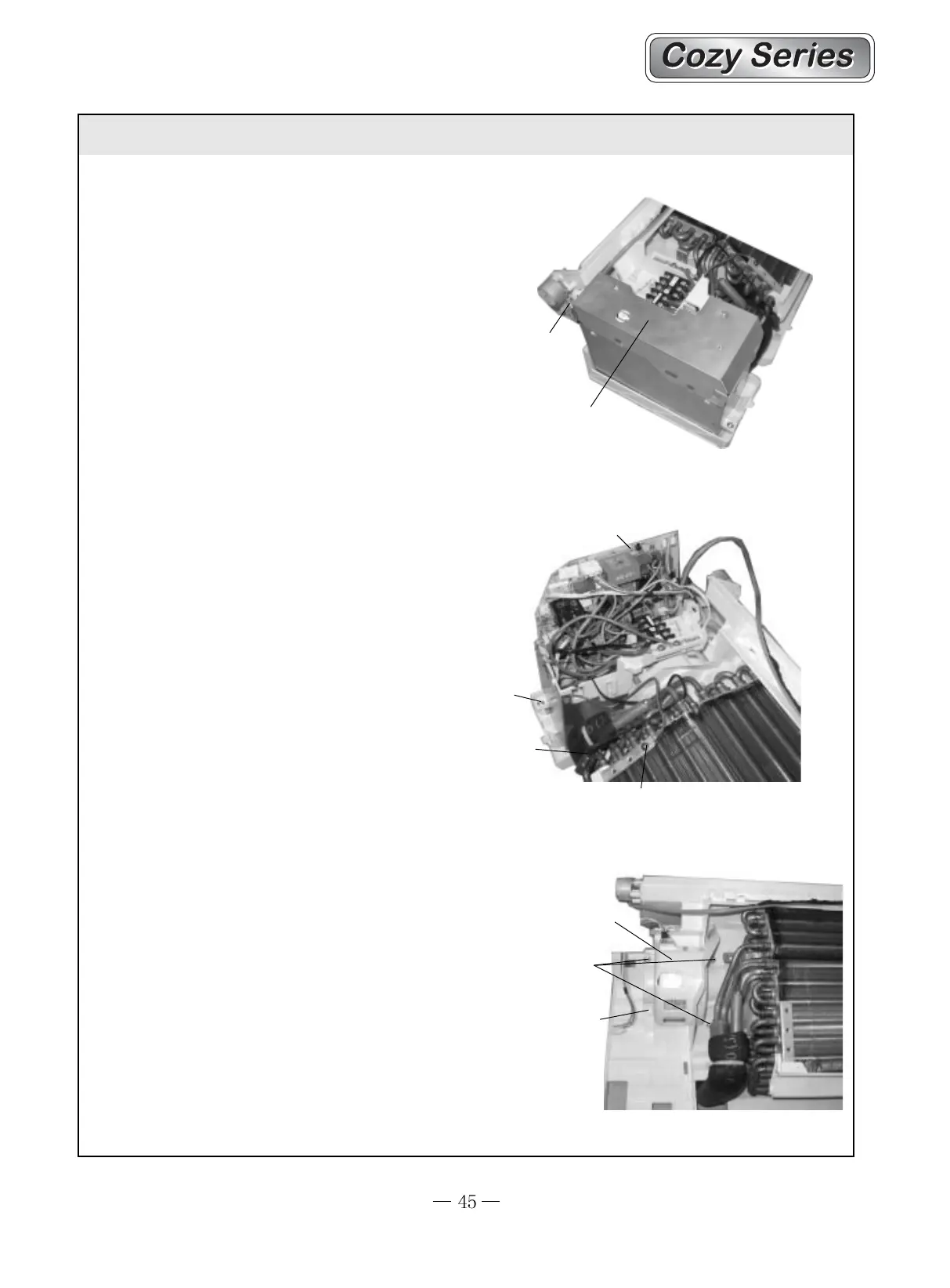

4.Disassemble the electrical box cover
Slightly press the clasps around the electric box cover,
take down the ambient sensor, take down the electric box cover.
Ambient sensor
Electric box cover
5, Disassemble electric box
Screw off screws on electric box, screw off earth screw
pull out tube sensor, mainboard, LCD, air guide motor,
wire terminal of motor then can take down the electric
box.
Screws
Tube sensor
Earth screw
6.Disassemble evaporator
Screw off screws from evaporator, and loosen clasp,
can take down the motor clamp.
Screw off one screw from the evaporator and motor clamp,
can take down the motor clamp.
Motor clamp
Clasp
Screw
Mainboard
