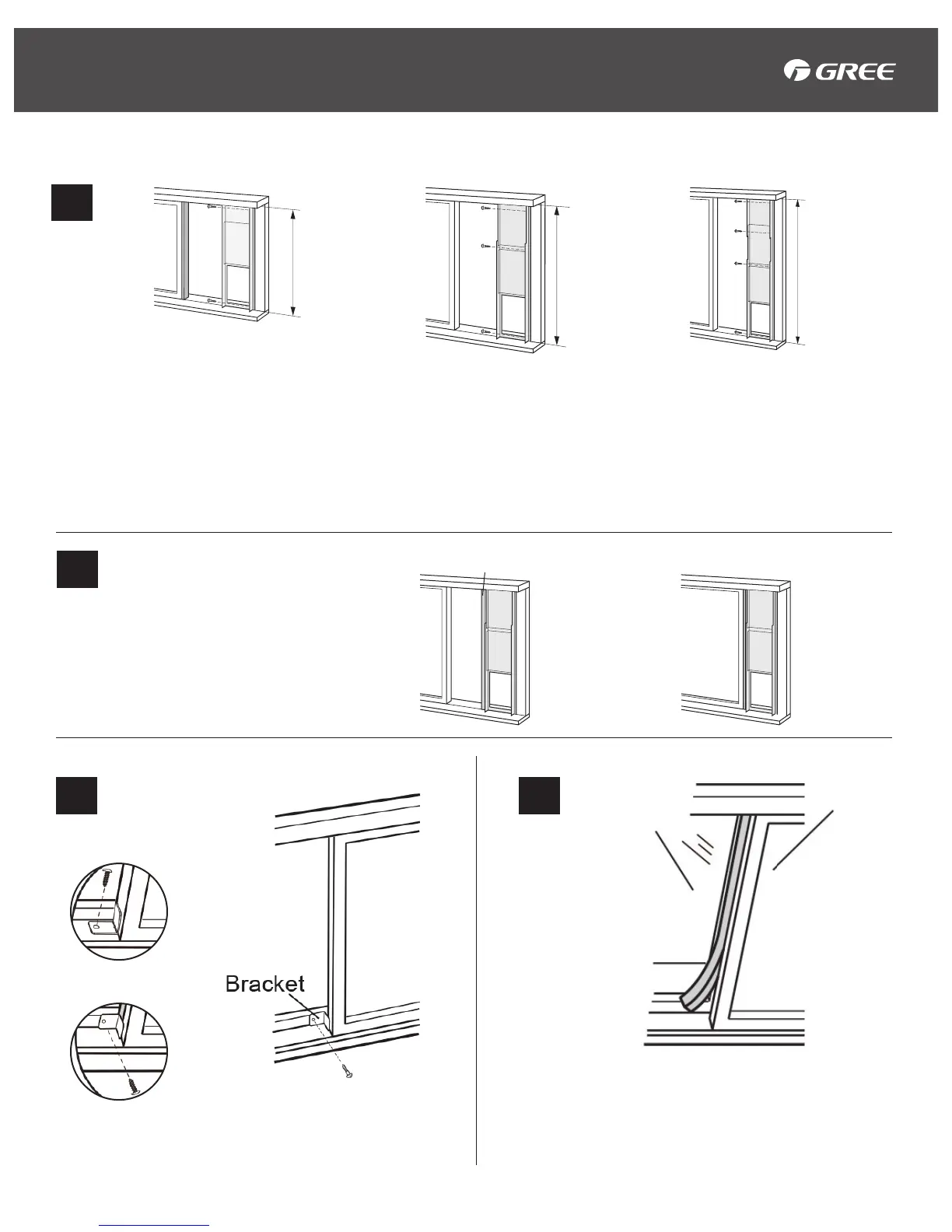

INSTALLATION INSTRUCTIONS
Horizontal Sliding Window
20.5" - 38.5"
Vinyl Window
Wooden Window
Cut the Foam Seal to a proper length and
seal the gap between upper part of inner
window sash and outer window sash.
Fix the inner window with
Bracket and 1 Screw,
so that it cannot slide horizontally.
7 8
20.5"
38.5" - 56.7"
The Window Panel cannot be
installed in windows less than
20.5" (52.07 cm) high.
Secure the
Window Panel to
the window sill with
2 Screws.
Inner height of the window:
20.5" (52.07 cm)- 38.5" (98 cm)
Adjustment Panel was added,
secure the
Window Panel to
the window sill with
3 Screws.
Inner height of the window:
38.5" (98 cm) - 56.7" (144 cm)
Adjustment Panel and
Extension Panel were added,
secure the
Window Panel to
the window sill with
4 Screws.
5
6
A) Cut
Foam with Adhesive to
length of window and attach
to top of
Window Panel.
B) Close window sash
securely against the
Window
Panel
.
Foam with Adhesive
A
B
