Gree GKH(12)BA-D3DNA2A/I

Super Free Match
Service Manual
MAINTENANCE
N
183
43 Display Board 30294220 1 30294220 1 30294220 1
44 Terminal Board 420111041 1 420111041 1 420111041 1
45 Capacitor CBB61 33010089 1 33010026 1 33010027 1
46 Electric Box Cover 01429420 1 01429420 1 01429420 1
47 Transformer 43110257 1 43110257 1 43110257 1
48 Main Board 30226350 1 30226350 1 30226350 1
49 Electric Box 01429419 1 01429419 1 01429419 1
50 Room Sensor 3900019822 1 3900019822 1 3900019822 1

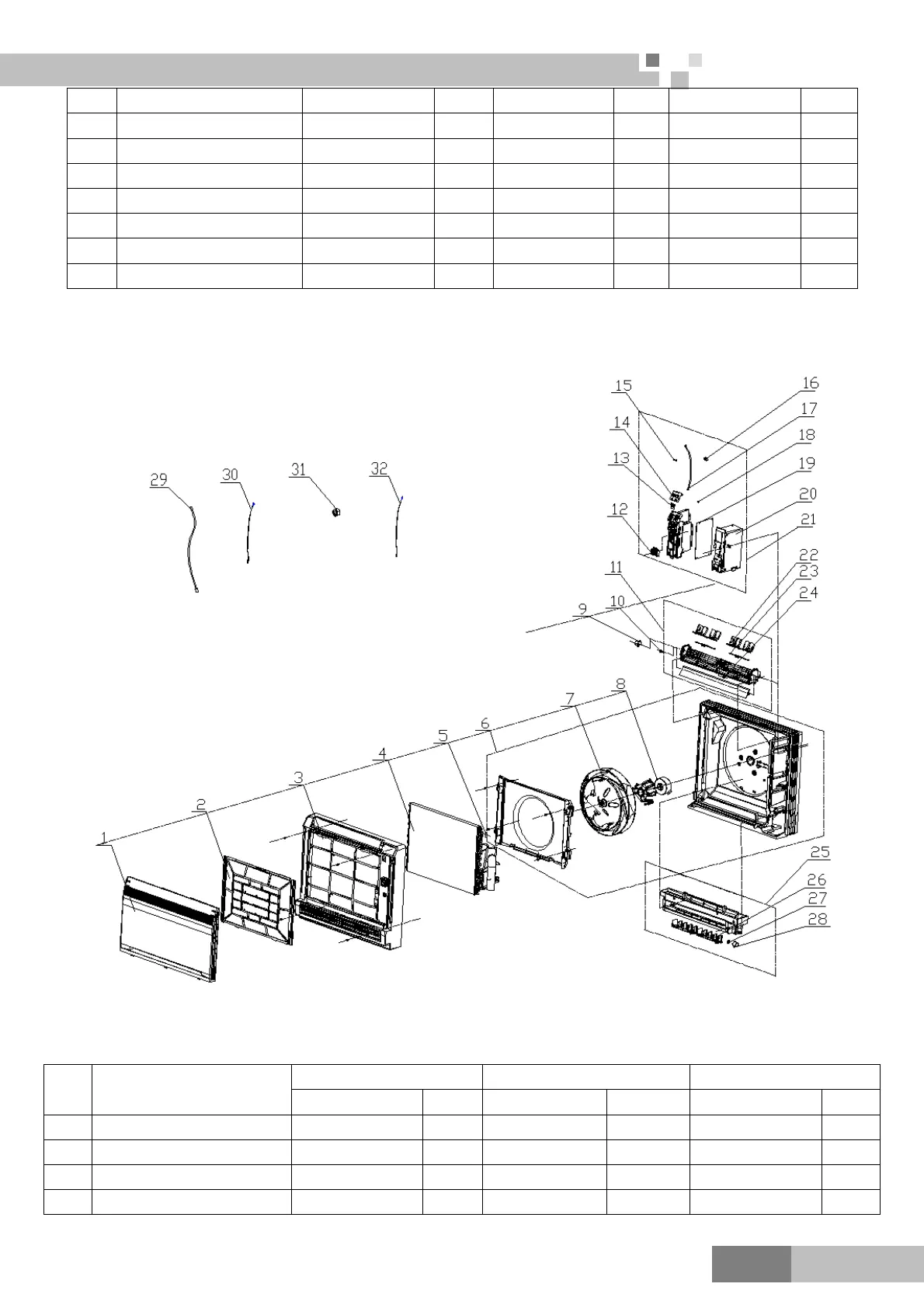

7.2.5 Console type
GEH(09)AA-D3DNA1C/I; GEH(12)AA-D3DNA1C/I; GEH(18)AA-D3DNA1C/I
Part list:
GEH(09)AA-D3DNA1C/I for CV010N00900; GEH(12)AA-D3DNA1C/I for CV010N01000;
GEH(18)AA-D3DNA1C/I for CV010N01100
NO. Description
GEH(09)AA-D3DNA1B/I GEH(12)AA-D3DNA1B/I GEH(18)AA-D3DNA1B/I
Code Qty Code Qty Code Qty
1 Front Panel Assy 20012756 1 20012756 1 20012756
1
2 Filter Sub-Assy 11122139 1 11122139 1 11122139
1
3 Front Case Assy 20012601 1 20012601 1 20012601
1
4 Evaporator Assy 01002637 1 01002333 1 01002332
1
