Multi Variable Air Conditioners Cassette Type Indoor Unit
10

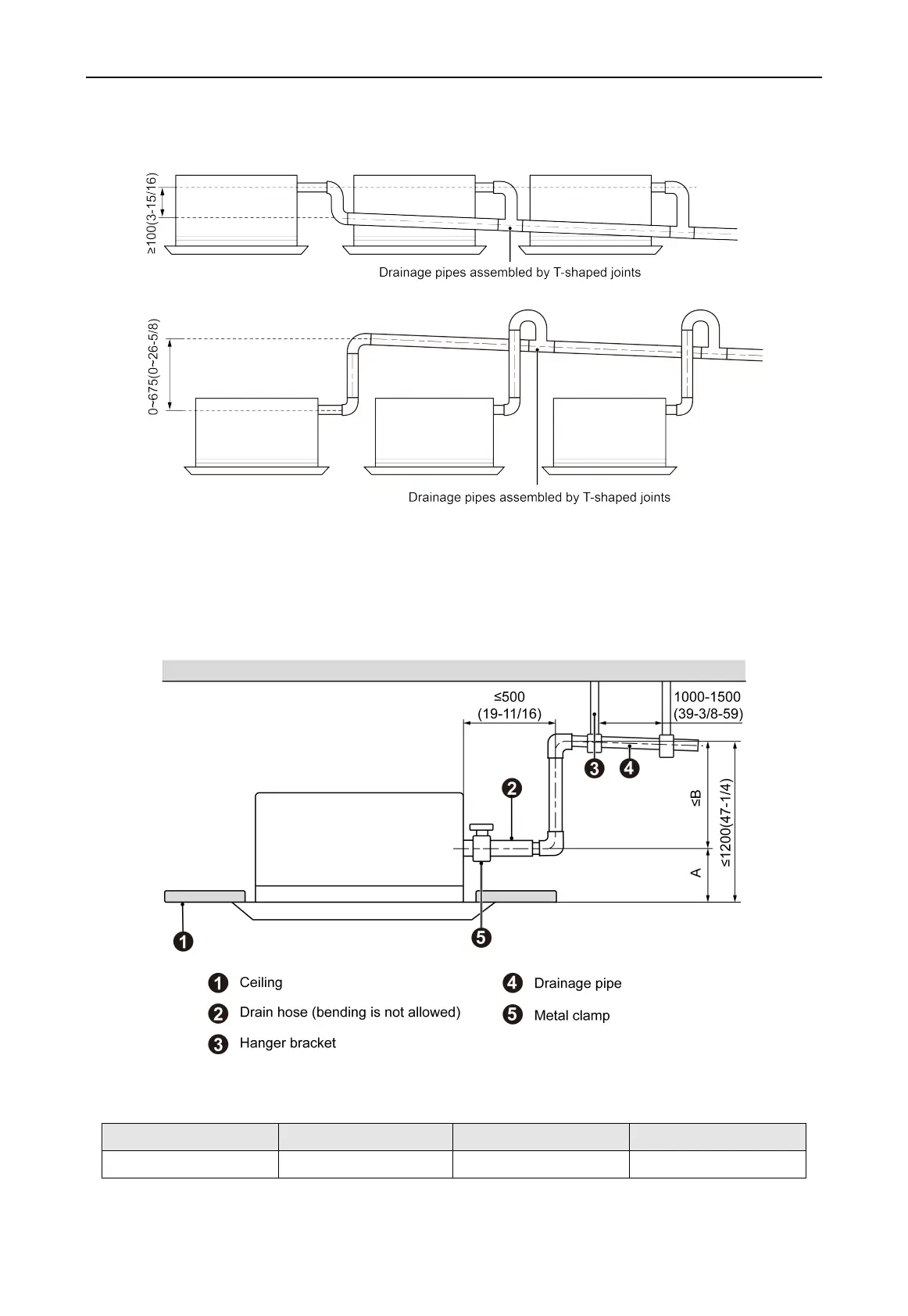

(7) Apply the suitable diameter for converging drainage pipe according to the operating capacity
of the unit.
Unit: mm (inch)
Fig.4.3.2
(8) The installation height of raising pipe for drainage should be lower than B. The gradient from
raising pipe towards drainage direction should be at least 1%~2%. If the raising pipe is
vertical with the unit, the raising height should be less than C.
Unit: mm (inch)
Fig.4.3.3
Unit: mm (inch)
Model A B C
GMV-ND07~48T/C-T(U) 220(8 5/8) 980(38 5/8) 930(36 5/8)
(9) Drain pipes should have a downward slope of at least 1%~2%, in order to prevent pipes from
