Multi Variable Air Conditioners Cassette Type Indoor Unit
14

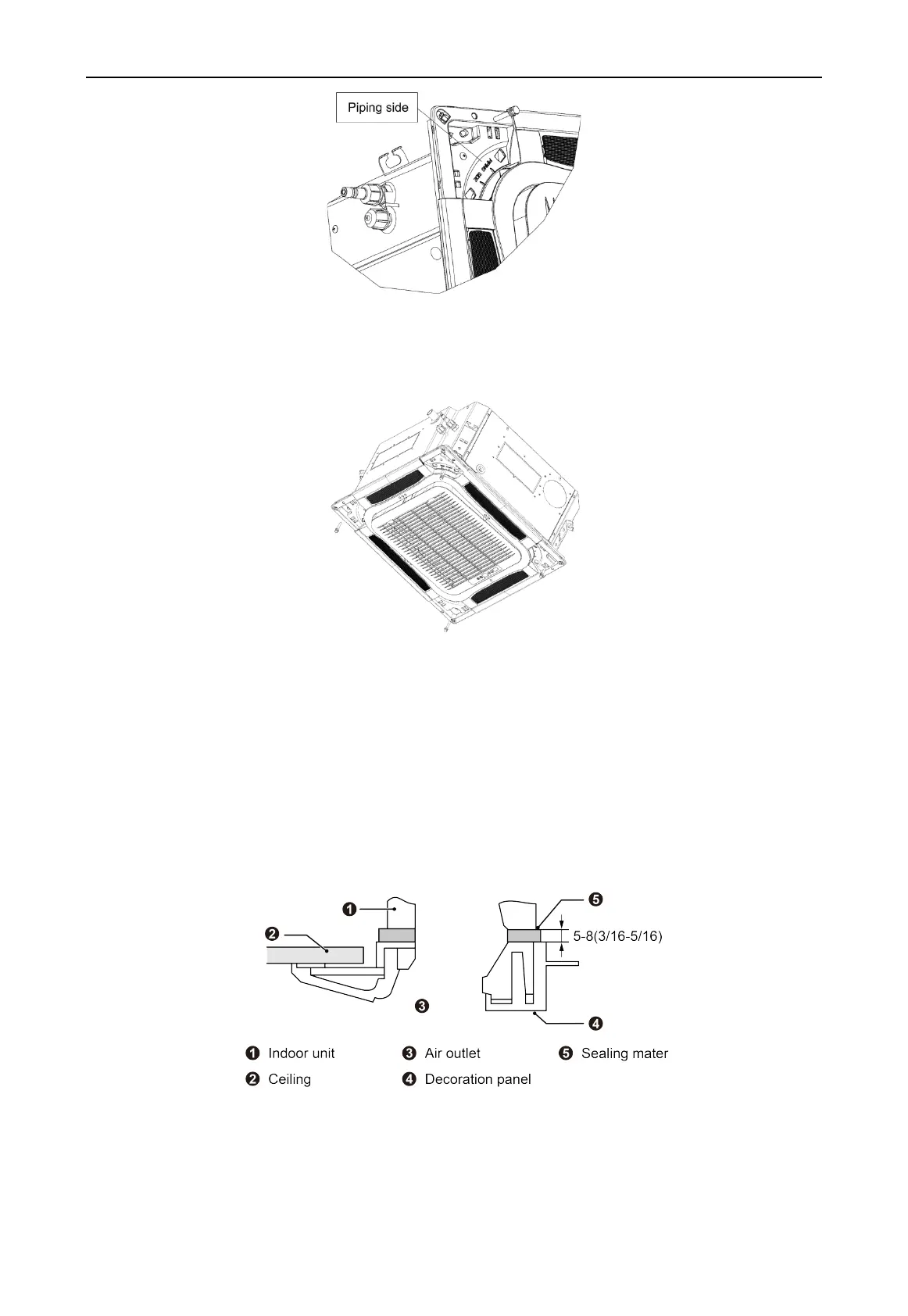

Fig.4.5.4
(2) Adjust the position of panel to make the panel holes fix at the holes on the units.
(3) Fix the 4 screws at the two side of panel, as shown in Fig.4.5.5.
Fig.4.5.5
(4) Detach the air inlet grille from panel, make a wiring connection of signal receiver. Notices
that the connection wire not stuck in the middle of body and panel, or may cause air leakage
and lead to condensation water drop.
(5) Tighten 4 screws at each corner of panel respectively, fix the panel on the body firmly.
(6) Tighten the screw until the thickness of sealing material between panel and indoor unit is
about 5-8mm(3/16~5/16inch).
Unit: mm (inch)
Fig.4.5.6
