GMV5 Compact Series VRF Outdoor Unit
6
4 Installation Instruction
Note: The picture is only used for reference and the actual product prevails.
Please observe the following installation principle to insure the operating unit is perfect:
☆There is enough space for the installation and maintenance. Otherwise, there is not any obstacle near the air inlet
and outlet of the indoor and outdoor units.
☆Good ventilation is needed for outdoor unit;
☆Install the unit at a place where is adequate to withstand the weight of the unit and is insulated against all noise,
which makes sure the noise doesn’t disturb the neighbors;
☆Only use the appointed suspender orifice to suspend outdoor unit. Please protect the unit when suspending it, and
forbid destroying sheet metal in case of rustiness;
☆Never expose the unit under direct sunshine;
☆Rain water and thaw water should be discharged in time;
☆The place must insure outdoor unit will not be under the influence of snow, rubbish, oil smear;
☆Rubber or spring absorber should be installed on the outdoor unit to meet the standard of noise and vibration;
☆Installation dimension should observe the installation instruction, and outdoor unit must be fixed on the
installing place;
☆Please call GREE appointed professional people to install units.
4.1 Physical Dimension of the Outdoor Unit and Mounting Hole
1) Outdoor unit physical dimension (Unit: mm.)

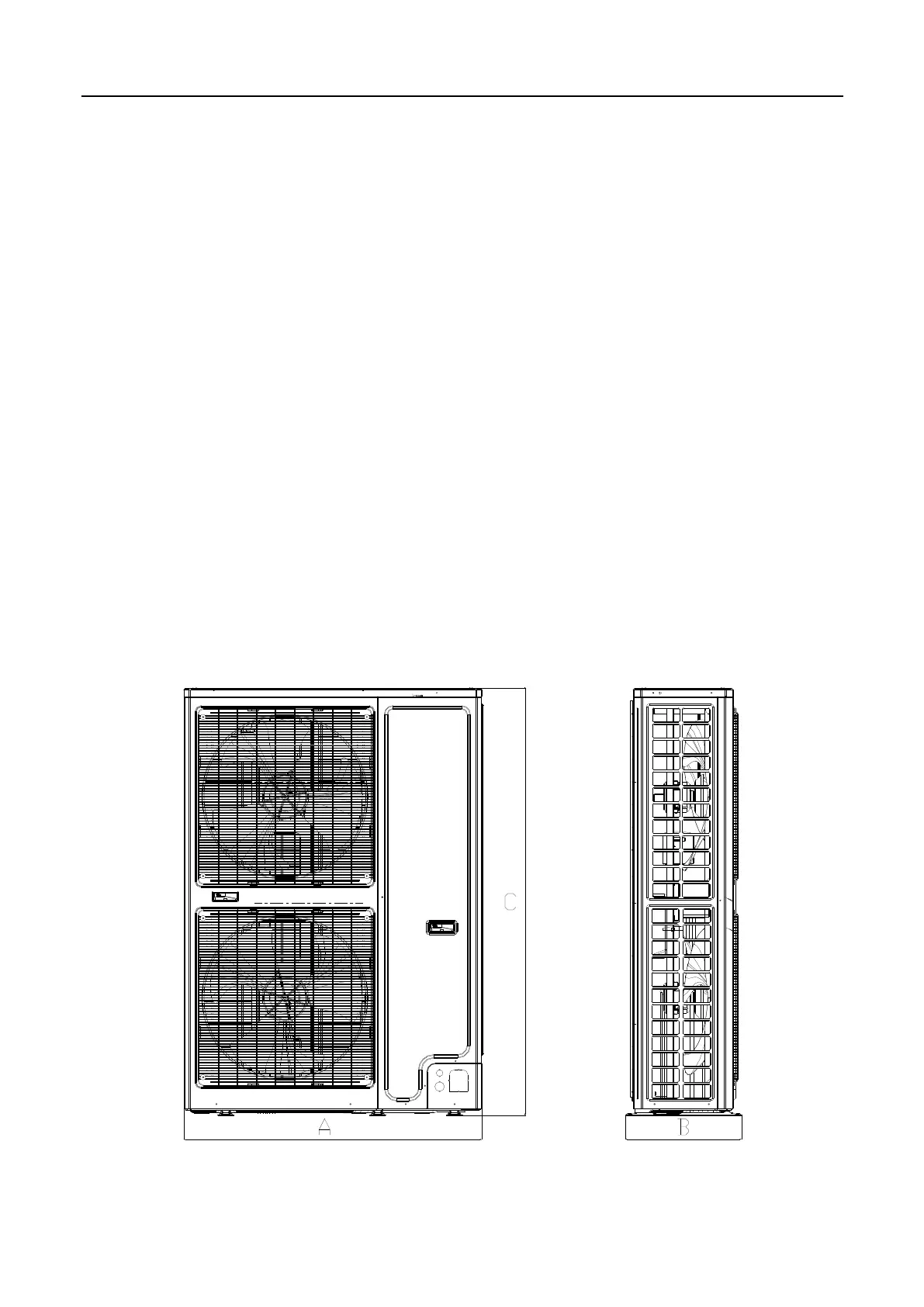

Fig.2 Outdoor unit physical dimension
