4.1.2 Suspend Indoor Unit

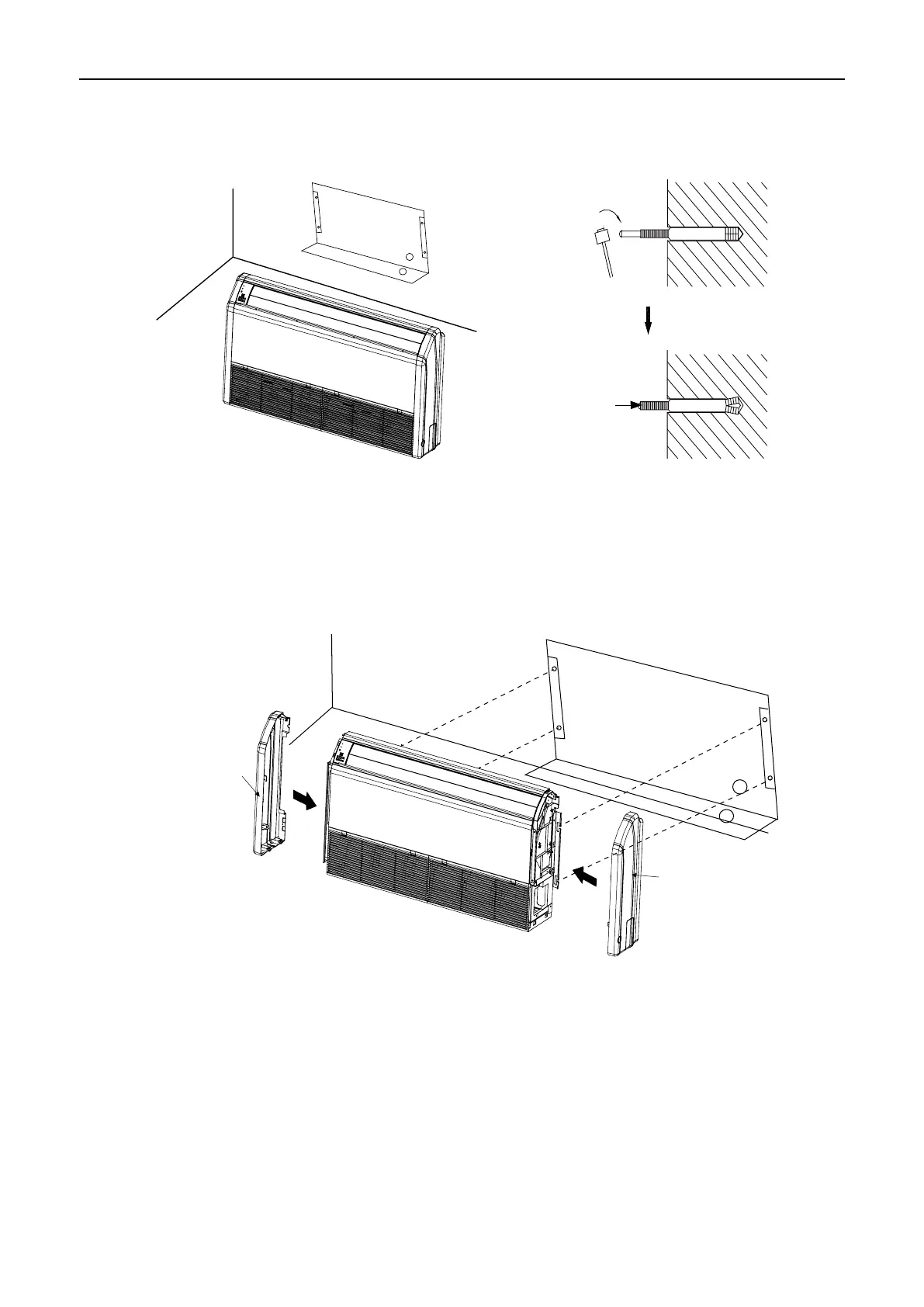

(1) Determine the location of the hanger through the paper pattern for installation, and then
remove the paper pattern, as shown in the left g of Fig 4.1.2.1.
Paper template
Anchor bolt
Fig 4.1.2.1
(2) Insert the expansion bolts into the drilled holes, and drive the iron nail into the bolt with a
hammer, as shown in the right g of Fig 4.1.2.1.
(3) Remove the right and left side panels, as shown in Fig 4.1.2.2.
(4) Put the hanger bolt into the clasp of the indoor unit and then tighten the bolt on the hanger to
prevent the indoor unit from moving, as shown in Fig 4.1.2.2.
◆
Floor type
Wall
Left side panel
Right side panel
Paper template
Fig 4.1.2.2
(5) Reinstall and tighten the right and left side panels, as shown in Fig 4.1.2.3.
(6) Adjust the height of the unit to make the drainage pipe slant slightly downward so that the
water will drain out smoothly, as shown in Fig 4.1.2.3
◆
Ceiling type
