Gree GMV-ND28ZD/A-T

Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit
8
4 Installation Instructions
4.1 Installation of Indoor Unit

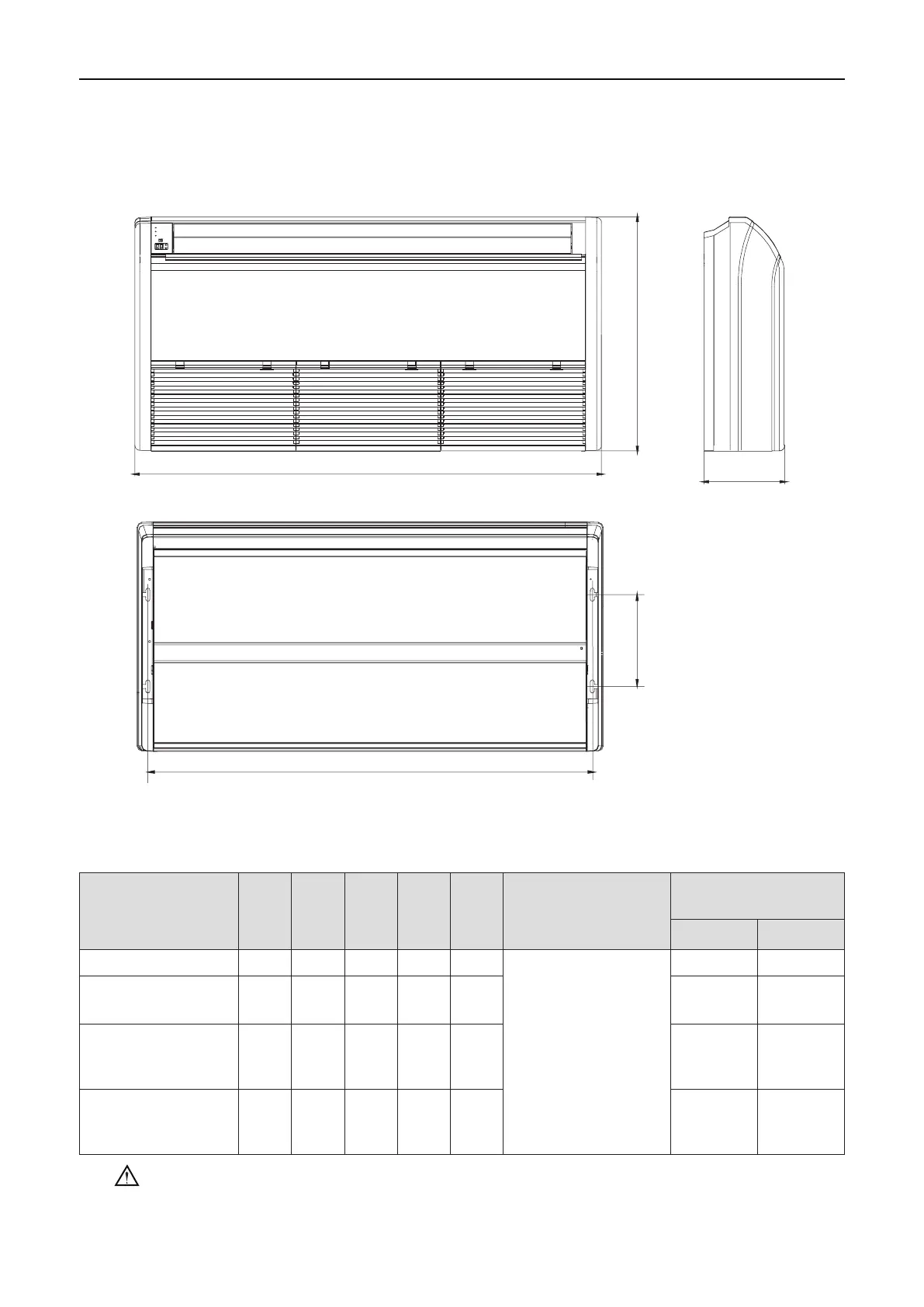

4.1.1 Outline Dimension and Installation Spots
C
A
HD
B
Fig 4.1.1
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Models: A B C D H
Drainage Pipe(Outer
Diameter × wall
thickness)
Outer Diameter of
Connection Pipe
Liquid pipe Gas pipe
GMV-ND28ZD/A-T 1220 225 1158 280 700
φ17×1.75
6.35 9.52
GMV-ND36ZD/A-T
GMV-ND50ZD/A-T
1220 225 1158 280 700 6.35 12.7
GMV-ND63ZD/A-T
GMV-ND71ZD/A-T
GMV-ND90ZD/A-T
1420 245 1354 280 700 9.52 15.9
GMV-ND112ZD/A-T
GMV-ND125ZD/A-T
GMV-ND140ZD/A-T
1700 245 1634 280 700 9.52 15.9
Important: The drilling work and installation of unit must be carried out by qualied personnel.
