Gree GRP-E05SH-R4 User Manual

13

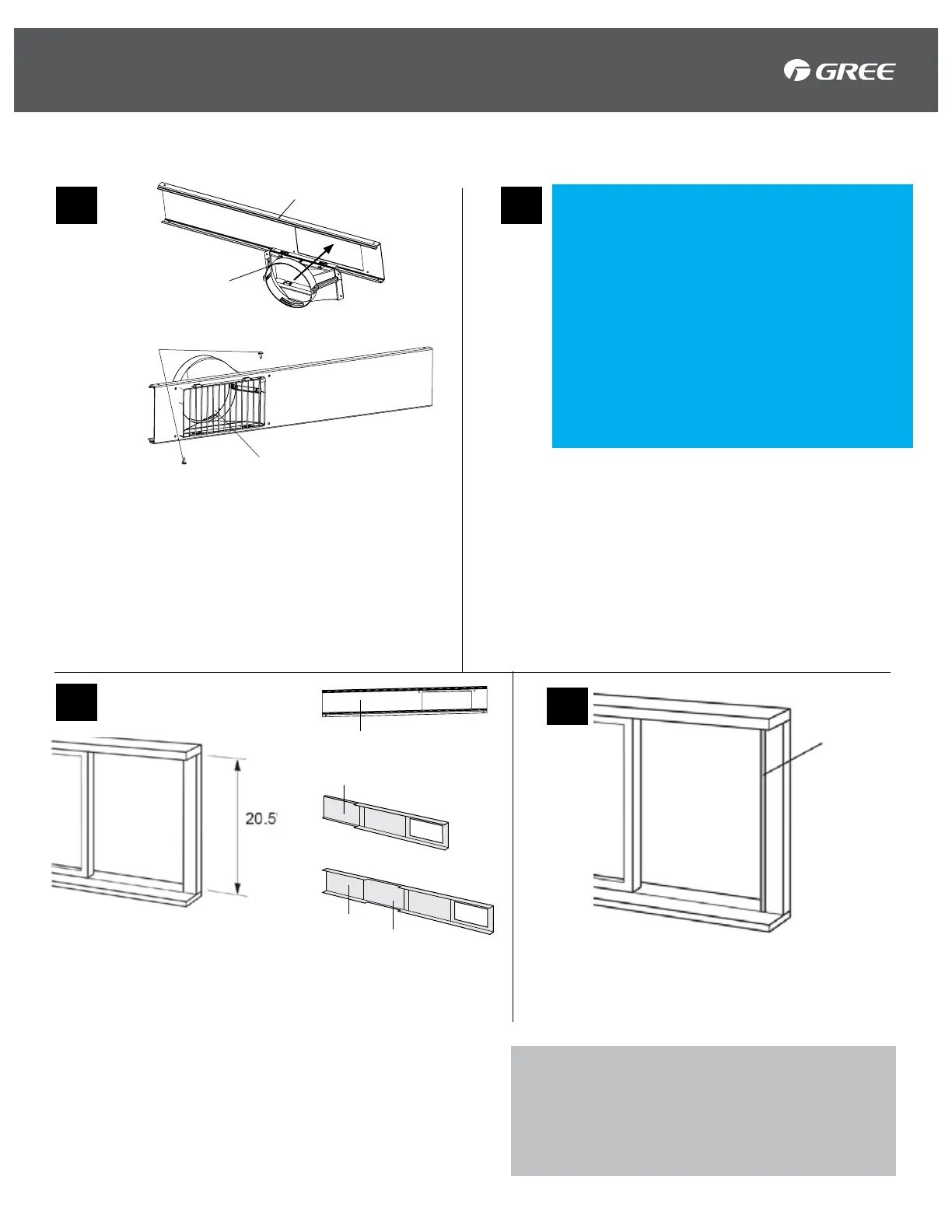

INSTALLATION INSTRUCTIONS
Horizontal Sliding Window
1
3
4
2
A) Insert Exhaust Nozzle into Window Panel.
B) Attach Protective Guard onto Exhaust Nozzle
with 2
Screws.
Window Panel
Inner Side
Protective Guard
Exhaust Nozzle
Screws
A
B
Open the window and measure the height inside the
window frame.
A) For windows with inner height of 20.5" (52 cm)
only use the Window Panel
B) For windows with inner height over 20.5” (52 cm) up
to 38.5” (98 cm) insert
Adjustment Panel
C) For windows with inner height over 38.5” (98 cm)
up to 56.7” (144 cm) insert
Adjustment Panel and
Extension Panel
.
A
B
C
Extension panel
Adjustment panel
Adjustment panel
Foam
Adhesive
Cut the Foam with Adhesive to fit length of
the window and attach to window sill.
A) Attach Support A on the outer side of the
Window Panel with 2 Bolts, 2 Washers, 2 Spring
Washers, 2 Nuts
in this order.
B) Attach the
Rain Shield on top of the Support
with
2 Bolts, 2 Washers, 2 Spring Washers, 2
Nuts
in this order.
Window Panel
Note: If Extension Panel or Adjustment
Panel are too long, use a Pencil and Saw
to cut panels to fit window frame.
Robert to insert
correct image

Gree GRP-E05SH-R4 Specifications

General

Brand	Gree
Model	GRP-E05SH-R4
Category	Air Conditioner
Language	English
