Exhaust Hose Removal
3
2
Remove the
Exhaust Hose from the Exhaust
Nozzle
by turning hose counter-clockwise.
INSTALLATION AND DISASSEMBLY

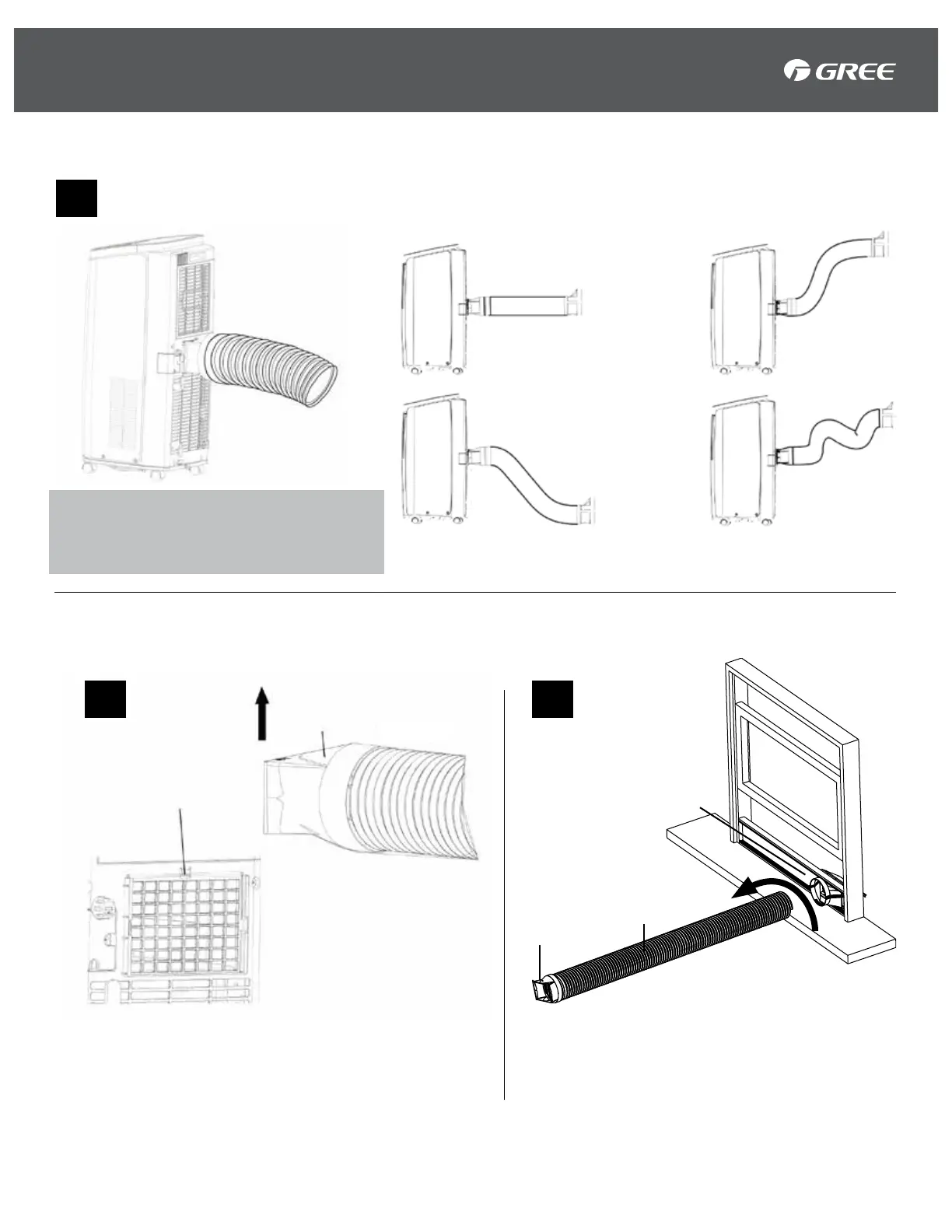

Exhaust Hose Connection
INCORRECT
CORRECTCORRECT
CORRECT
1
Remove
Exhaust Hose Connection from unit by
pressing the Clasp and lifting the
Exhaust Hose
Connection
upwards.
Clasp
Upwards
Exhaust
Hose
Connection
Exhaust
Hose
Exhaust
Nozzle
Exhaust
Hose
Connection
Note: In order to improve cooling
efficiency, the Exhaust Hose should be
as short as possible, and without bends.
