INSTALLATION INSTRUCTIONS
Vertical Double Hung Window

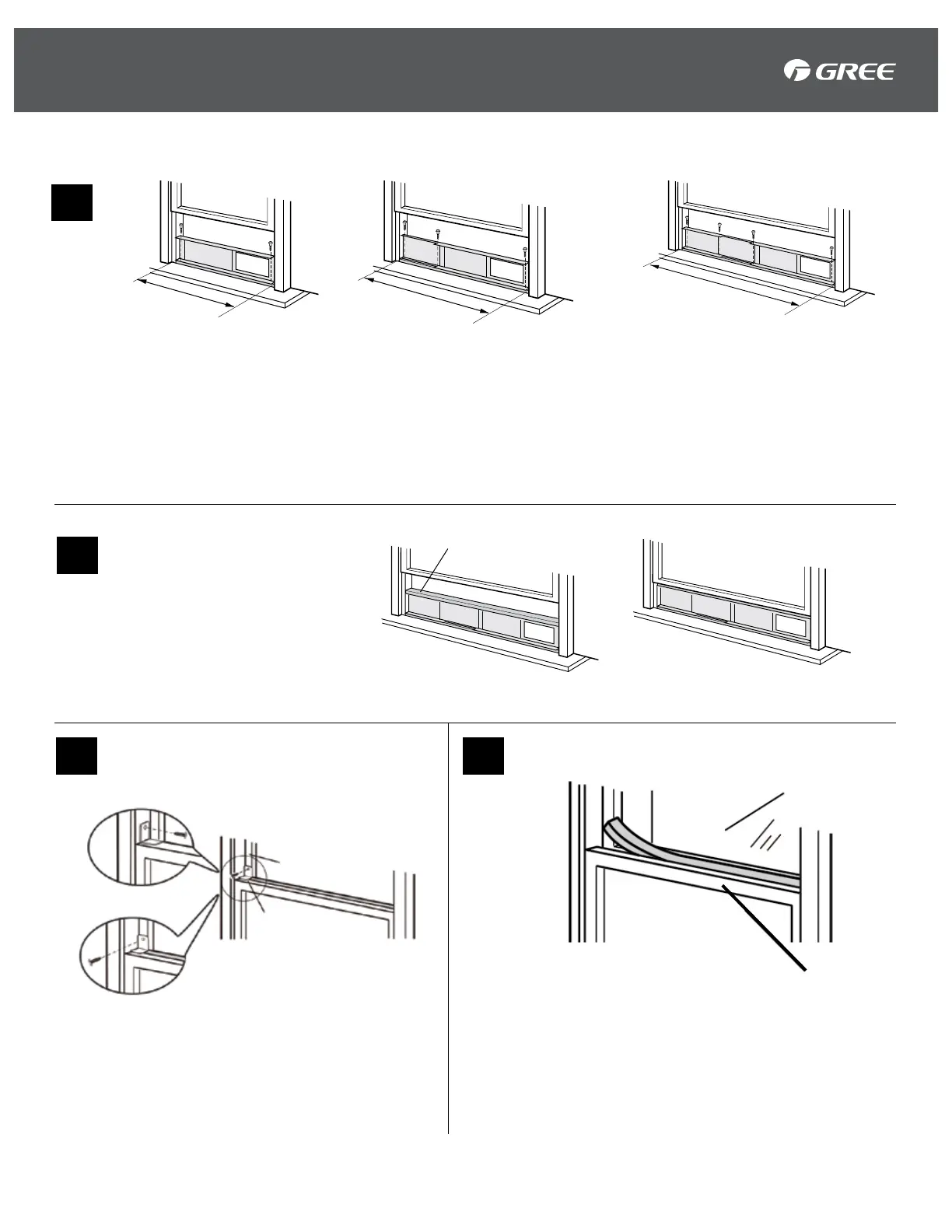

Cut the Foam Seal to a proper length and seal
the gap between upper part of inner window
sash and outer window sash.
Inner Window Sash
Outer Window
Foam Seal
38.5" - 56.7"
8
Fix the inner window with Bracket and 1 Screw,
so that it cannot slide vertically.
It is recommended that you attach the
Bracket to
the top of the window sash.
5
6
7
Window Sash
Vinyl Window
Wooden Window
Bracket
A) Cut Foam with Adhesive to
length of window and attach
to top of
Window Panel.
B) Close window sash
securely against the
Window
Panel
.
Foam with Adhesive
20.5"
20.5" - 38.5"
A
B
The Window Panel cannot be
installed in windows less than
20.5" (52 cm) wide.
Refer to saw note (page 11).
Secure the
Window Panel to
the window sill with
2 Screws.
Inner width of the window:
20.5" (52 cm)- 38.5" (98 cm)
Adjustment Panel was added,
secure the
Window Panel to
the window sill with
3 Screws.
Inner width of the window:
38.5" (98 cm) - 56.7" (144 cm)
Adjustment Panel and
Extension Panel were added,
secure the
Window Panel to
the window sill with
4 Screws.
