U-Match Series DC Inverter Service Manual
73
(2) Install the paper template on the unit, and fix the drain pipe at the outlet vent.
(3) Adjust the unit to the best position.
(4) Check if the unit is installed horizontally at four directions. If not, the water pump and the float
switch would function improperly and even lead to water leakage.
(5) Remove the gasket anchor board and tighten the nut remained.
(6) Remove the paper template.
1.3.4 Installing the Suspension Bolts

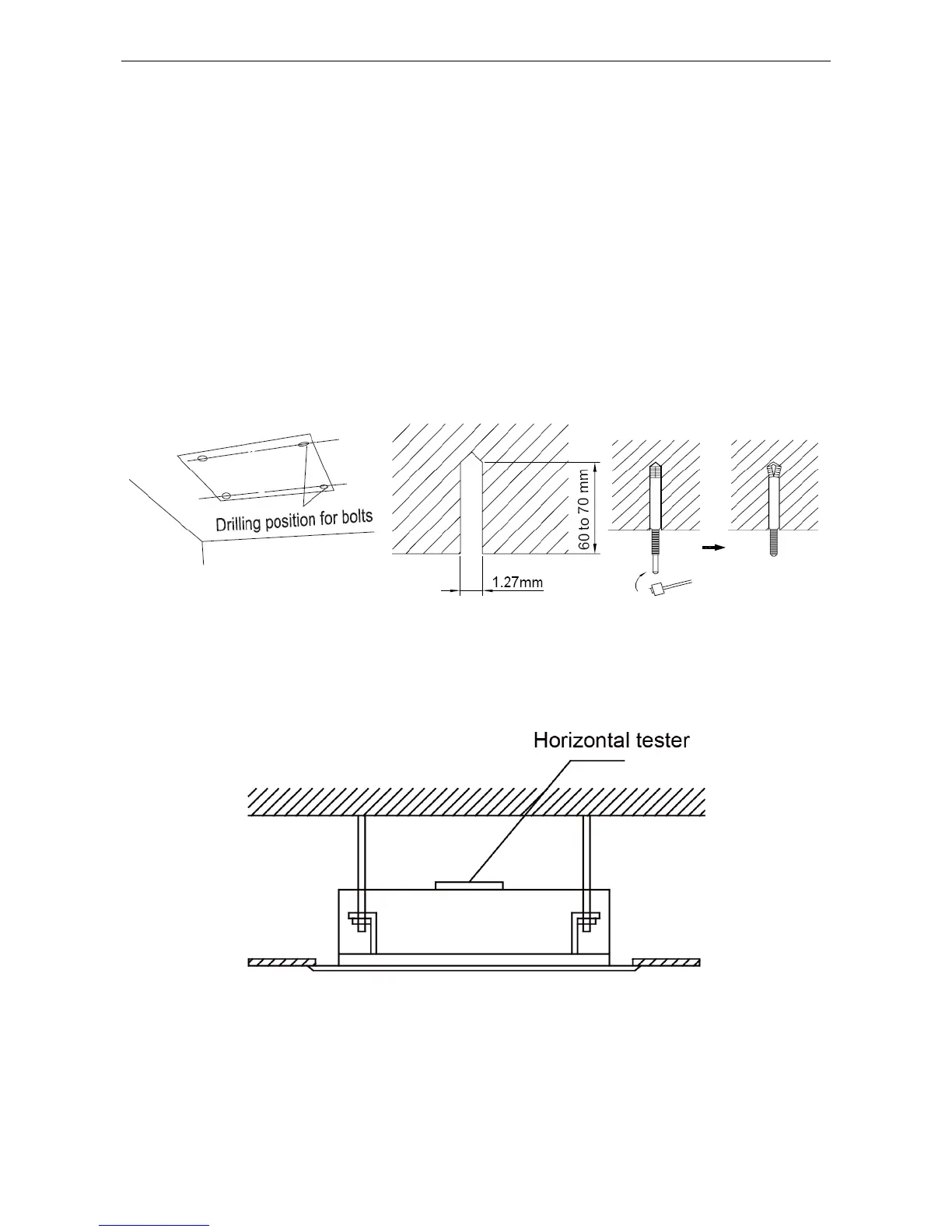

(1) Using the installation template, drill holes for bolts (four holes). (Figure 3-1-40)
(2) Install the bolts to the ceiling at a place strong enough to hang the unit. Mark the bolt positions
from the installation template. With a concrete drill, drill for 12.7 mm (1/2”) diameter holes.
(Figure 3-1-41)
(3) Insert the anchor bolts into the drilled holes, and drive the pins completely into the anchor bolts
with a hammer. (Figure 3-1-42)
Figure 3-1-40 Figure 3-1-41 Figure 3-1-42
1.3.5 Leveling
The water level test must be done after installing the indoor unit to make the unit is horizontal, as
shown below.
Figure 3-1-43
