DC Inverter U-match Series Duct Type Unit
48
Only for GUD160PH/A-T, GUD160PHS/A-T.
2) Outdoor side
Remove the big handle/front panel of the outdoor unit and insert one end of the
communication cord and the power cord to the terminal board.
Single-phase:GUD35W/NhA-T,GUD50W/NhA-T,GUD71W/NhA-T,GUD85W/
NhA-T.

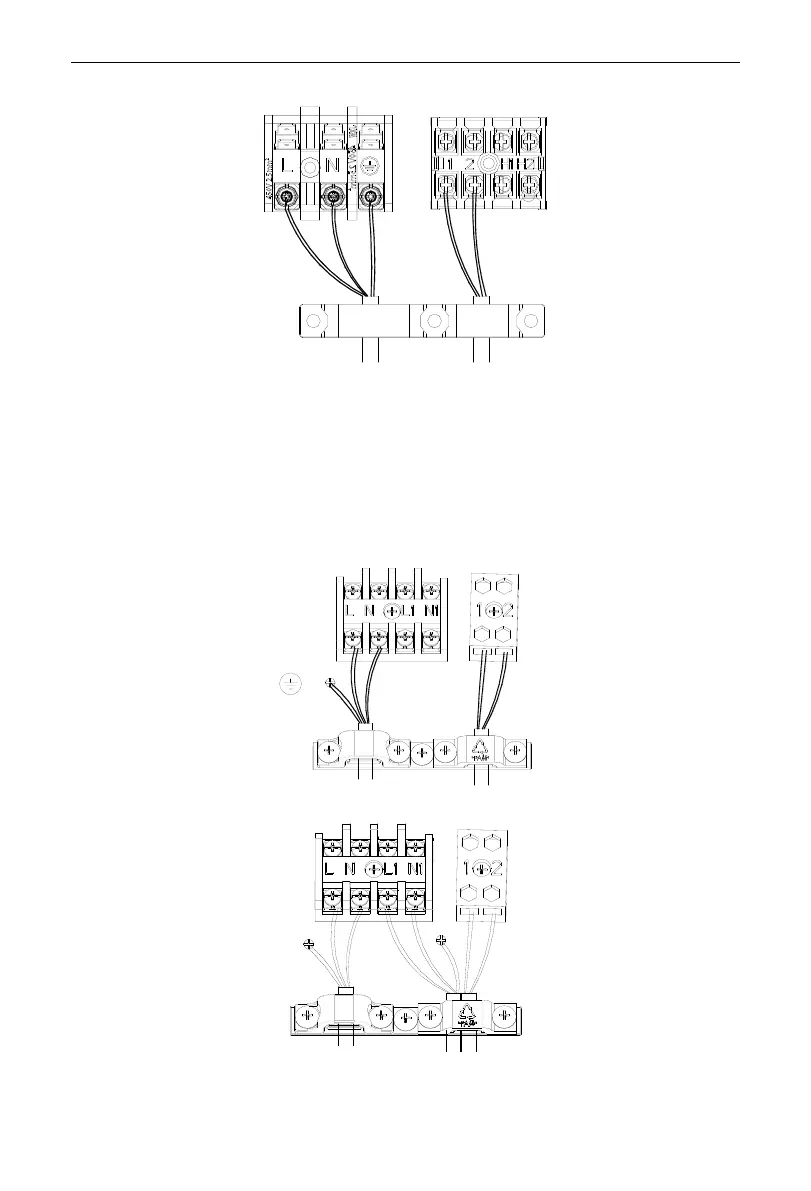

a) Wire routing of separated power supply:
b) Wire routing of unified power supply:
