DC Inverter U-match Series Duct Type Unit
49
Single-phase: GUD100W/NhA-T, GUD125W/NhA-T, GUD140W/NhA-T

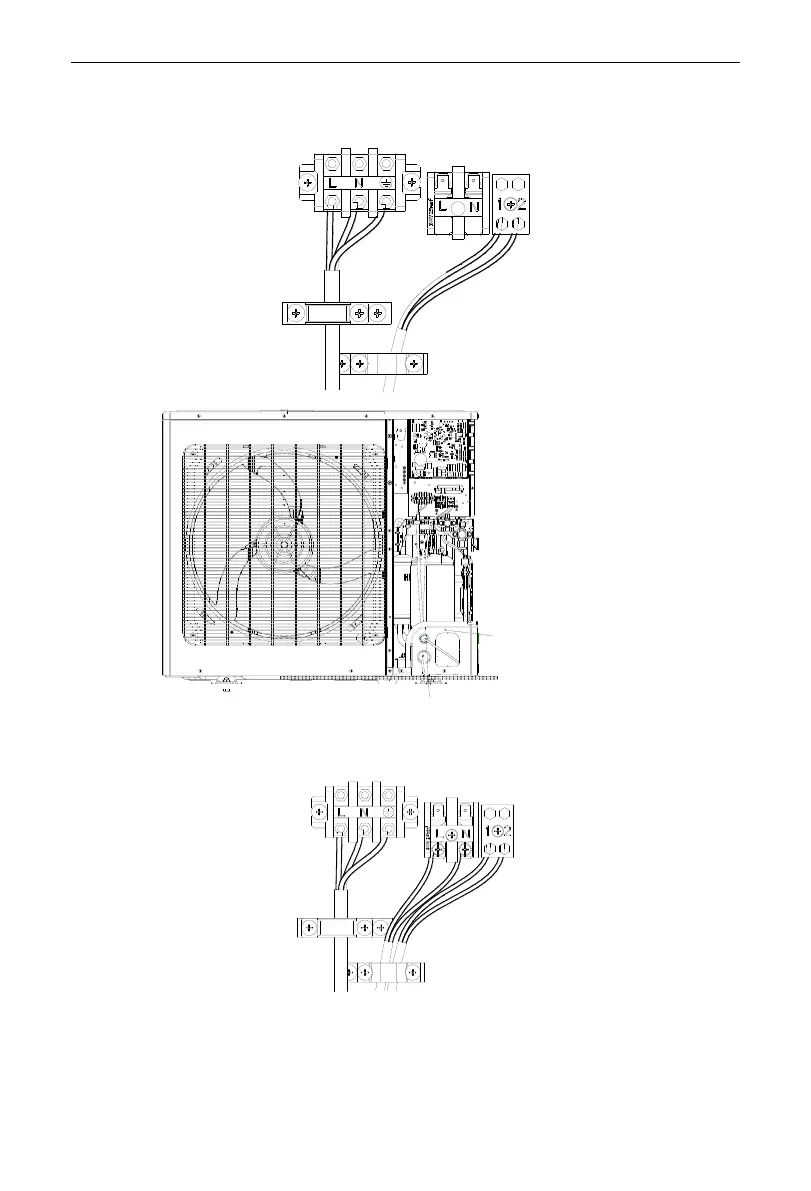

a) Wire routing of separated power supply for single phase.
The power cords of outdoor unit
and indoor unit get in from the lower hole.
The communication wire
gets in from the upper hole
b) Wire routing of unified power supply for single phase.
