 For the units: 48k
A
B
C
D
E
F
G
H
I
J

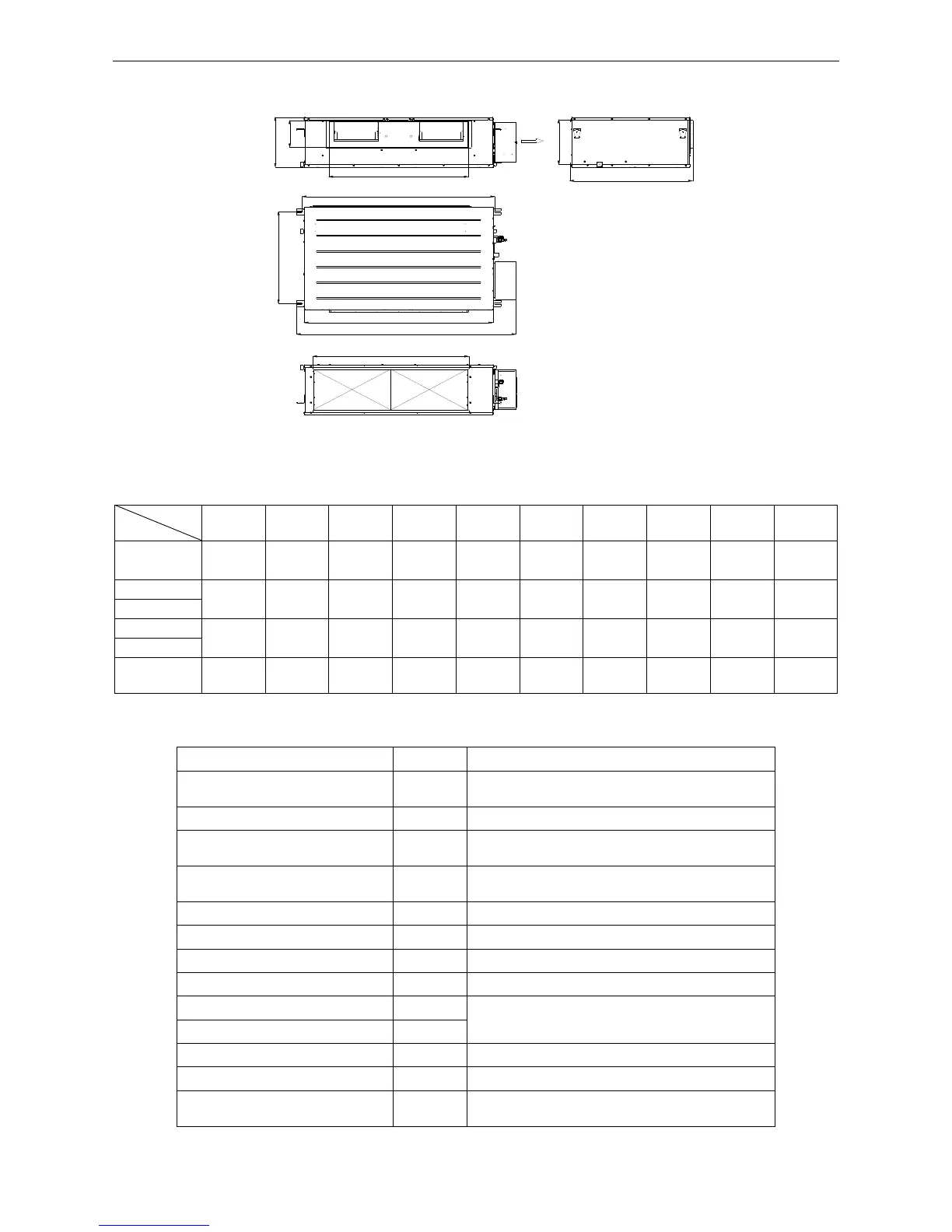

Figure 3-1-6
Table 3-1-1
Unit: mm (inch)
Item
Model
A
B
C
D
E
F
G
H
I
J
GFH18D3FI
945
(37-1/4)
618
(24-3/8)
738
(29)
892
(35-1/8)
1037
(40-7/8)
721
(28-3/8)
738
(29)
125
(4-7/8)
203
(8)
266
(10-1/2)
GFH24D3FI
1101
(43-3/8)
517
(20-3/8)
820
(32-1/4)
1159
(45-5/8)
1279
(50-3/8)
558
(22)
1002
(39-1/2)
160
(6-1/4)
235
(9-1/4)
268
(10-1/2)
GFH30D3FI
GFH36D3FI
1011
(39-3/4)
748
(29-1/2)
820
(32-1/4)
1115
(43-7/8)
1226
(48-1/4)
775
(30-1/2)
979
(38-1/2)
160
(6-1/4)
231
(9-1/8)
290
(11-3/8)
GFH42D3FI
GFH48D3FI
1177
(46-3/8)
646
(25-3/8)
852
(33-1/2)
1150
(45-1/4)
1340
(52-3/4)
750
(29-1/2)
953
(37-1/2)
190
(7-1/2)
316
(12-1/2)
350
(13-3/4)
Table 3-1-2 Installation Accessories List for Duct-type Indoor Unit
Name & Shape
QTY
Notes
Installation and Operating
Instructions
1
Insulation materials for gas pipe
1
Used for gas pipe connector on indoor unit.
Insulation materials for liquid
pipe
1
Used for liquid pipe connector on indoor unit.
Insulation materials for drainage
pipe
2
Used for wrapping the condensate pipe and
rubber plug.
Nut
1
To connect liquid pipe.
Nut
1
To connect gas pipe.
Nut M6 with gasket
8
Use for fixing the hanger hook.
Nut M10 with gasket
4
Use for fixing the hanger hook.
Nut M10
4
4 sets, used for ceiling mounting of the indoor
unit.
spring gasket
4
Hook
4
Used for ceiling mounting of the indoor unit.
Wired controller
1
Screw M4
2
To fix the base plate of wired controller and
installation hole of the wall together.
