0~1000mm(0~39-3/8inch)
≥100mm(3-7/8inch)
T-joint converging drain pipes
T-joint converging drain pipes

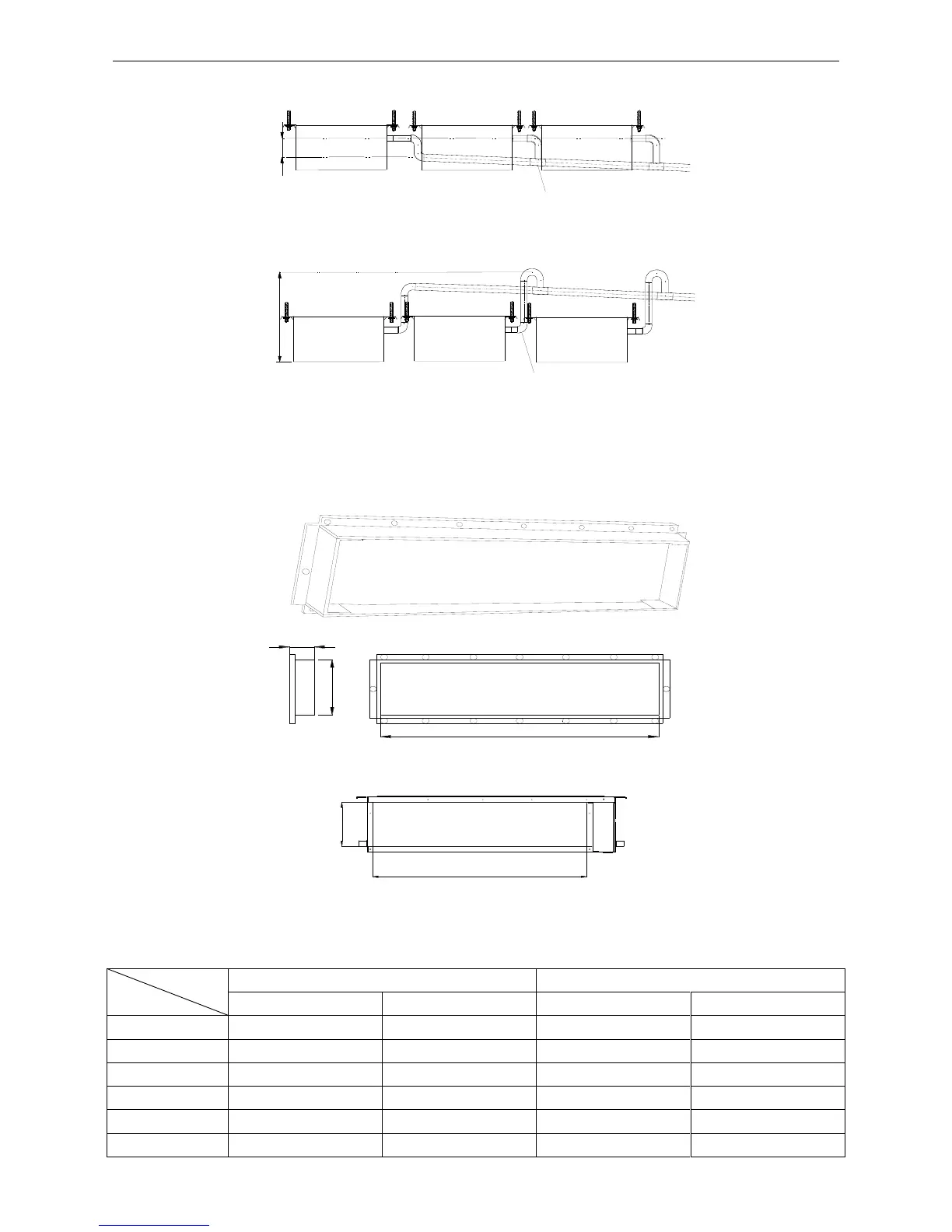

Figure 3-1-17
1.1.7 Installation of air duct
Dimensions of the Supply Air Outlet/Return Air Inlet
B
A
21mm(7/8inch)
Figure 3-1-18 Supply Air Outlet
C
D
Figure 3-1-19 Return Air Inlet
Table 3-1-3
Unit: mm (inch)
Item
Model
Supply Air Outlet
Return Air Inlet
A
B
C
D
GFH18D3FI
123(4-7/8)
736(29)
710(28)
166(6-1/2)
GFH24D3FI
158(6-1/4)
818(32-1/4)
994(39-1/8)
195(7-5/8)
GFH30D3FI
158(6-1/4)
818(32-1/4)
994(39-1/8)
195(7-5/8)
GFH36D3FI
158(6-1/4)
818(32-1/4)
1000(39-3/8)
206(8-1/8)
GFH42D3FI
158(6-1/4)
818(32-1/4)
1000(39-3/8)
206(8-1/8)
GFH48D3FI
190(7-1/2)
850(33-1/2)
940(37)
286(11-1/4)
