U-Match Series DC Inverter Service Manual
73

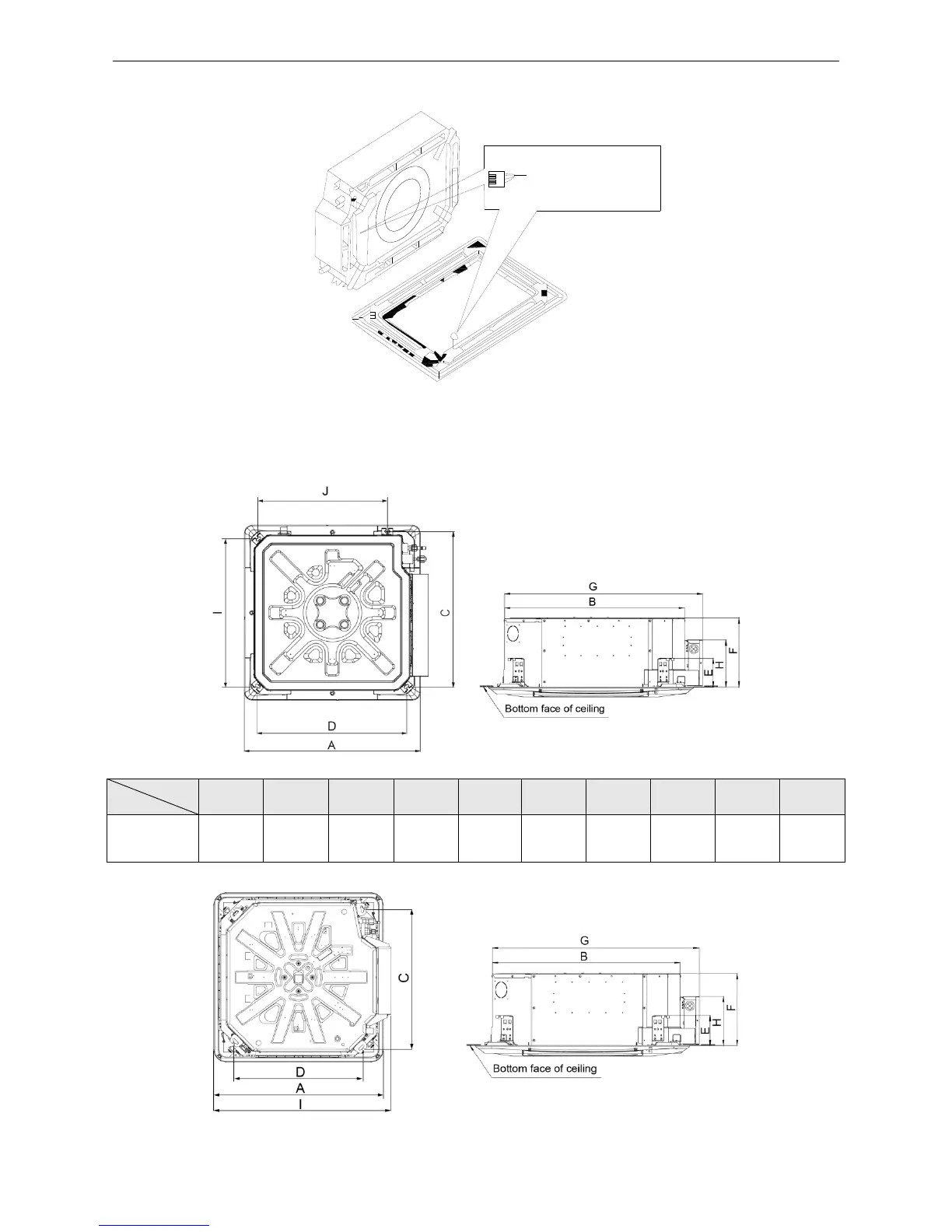

(9) Wire the swing flap motor as shown in Figure 3-1-48.
Connect them to the
main body according
to the size of terminals
Figure 3-1-48
1.3.7 Dimension Data
For the units: 18k
Table 3-1-8 Unit: mm (inch)
Item
Model
A
B
C
D
E
F
G
H
I
J
GKH18D3FI
670
(26-3/8)
596
(23-1/2)
592
(23-1/4)
575
(22-5/8)
145
(5-3/4)
240
(9-1/2)
665
(26-1/8)
236
(9-1/4)
575
(22-5/8)
505
(19-7/8)
For the units: 24k~42k
Table 3-1-9
