clamp (Figure 3-4-3).
①. Before starting work, check that power is not being supplied to the indoor unit and outdoor unit.
②. Match the terminal block numbers and connection cord colors with those of the indoor unit side. Erroneous wiring
may cause burning of the electric parts.
③. Erroneous wiring may cause burning of the electric parts.
④. Connect the connection cords firmly to the terminal block. Imperfect installation may cause a fire.
⑤. Always fasten the outside covering of the connection cord with cord clamps. (If the insulator is not clamped, electric
leakage may occur.)
⑥. Always connect the ground wire.

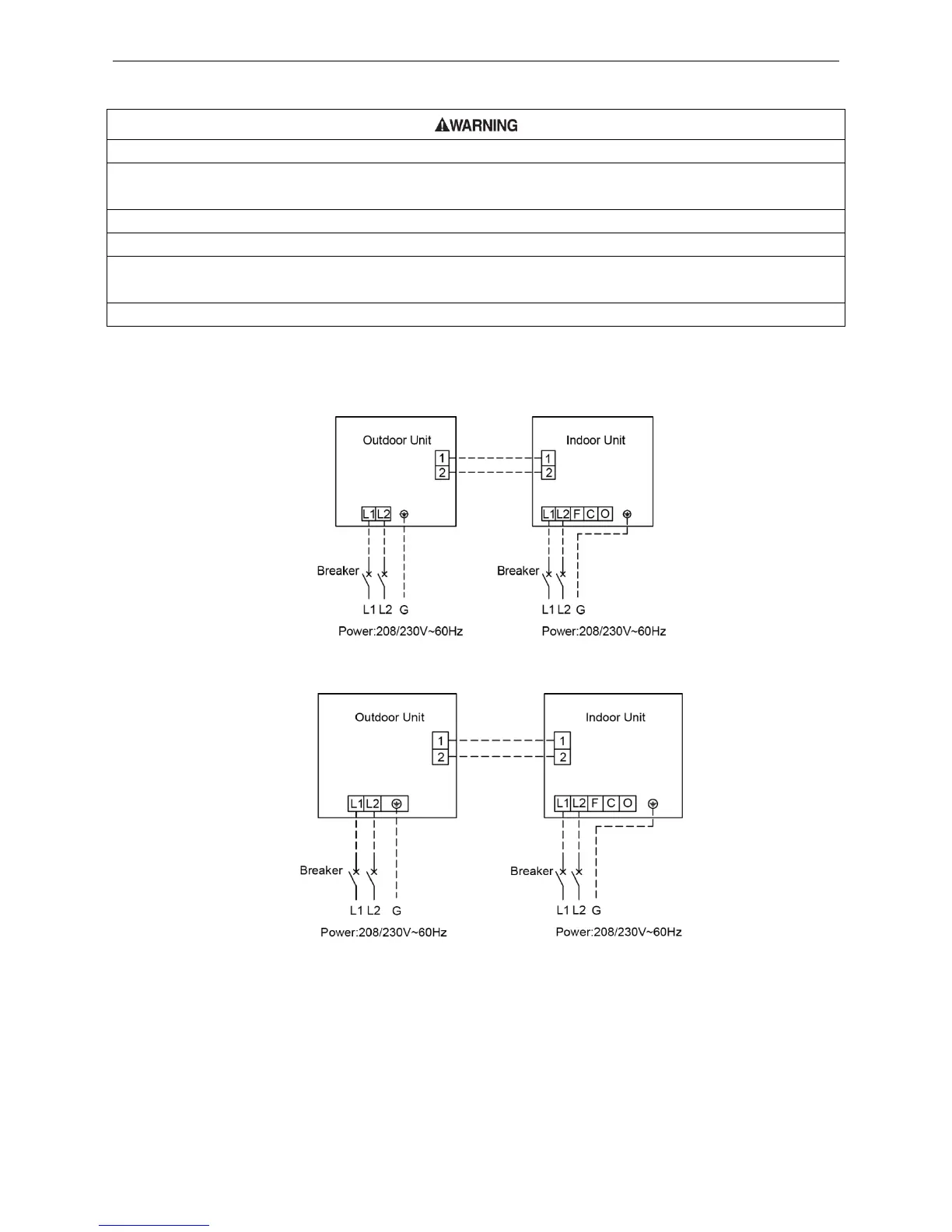

(4) Electric wiring between the indoor and outdoor units
Duct Type Unit:
Single-phase units (18k~30k)
Single-phase units (36k~48k)
