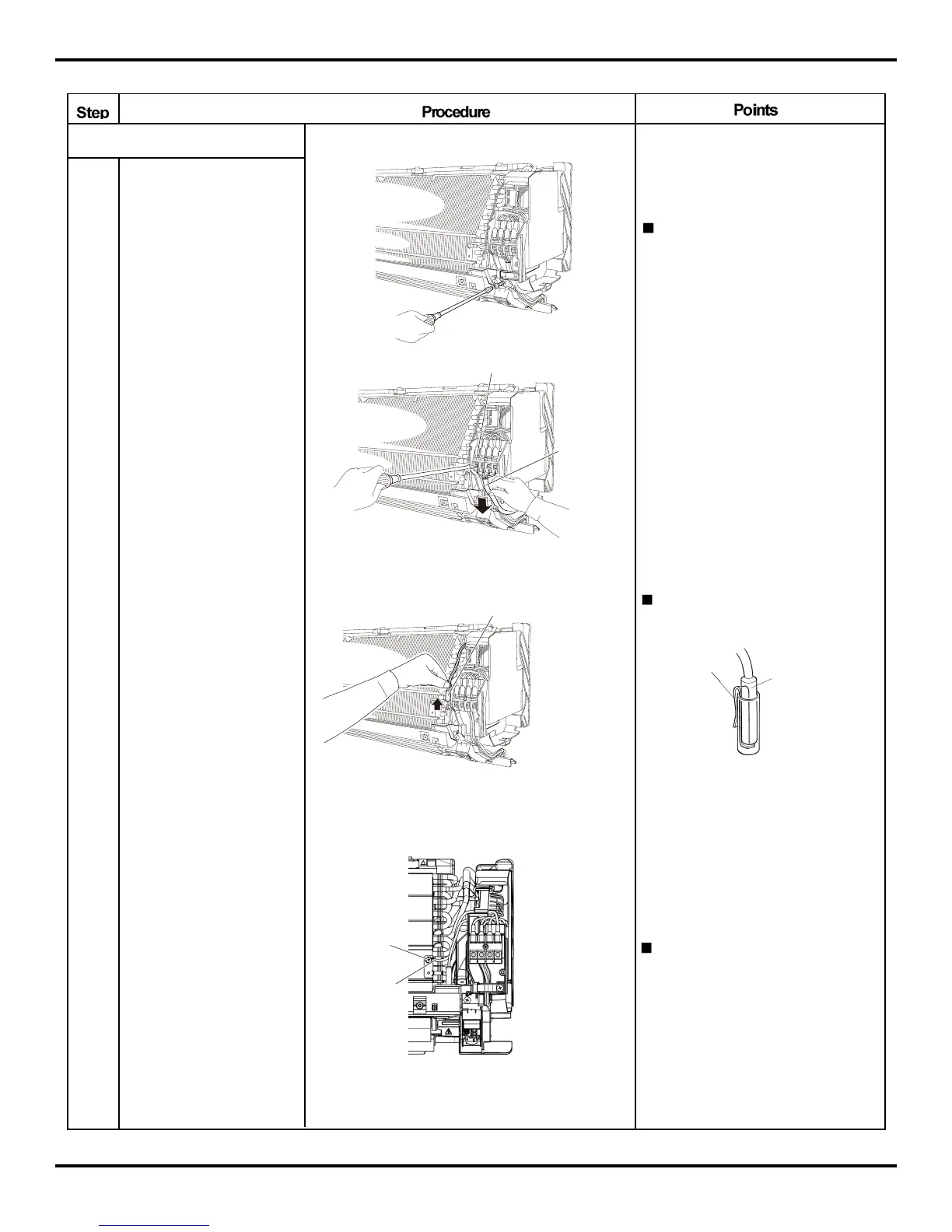

Removal Procedure
7. Remove electrical box
Disconnect the Cable
clamp
1
Disconnect the
connection wires.
2
Pay attention to the direction
of the retainer of the
thermistor so that the
retainer will not touch the
harness (same as the
existing models.)
Remove Temperature Sen-
sor
3
Remove a screw on the
terminal board.
4
Screw
Earth wire
Take care not to lose the clip
of thermistor.
Terminal board
Connecting
wires
(R11244)
Heat exchanger thermistor
Clip
(R11268)
Heat exchanger
thermistor
The electrical box can be
removed instead of
disengaging the terminal
board.
