22
7HFKQLFDO,QIRUPDWLRQ
Service Manual
1234
5
6
7
8910111213

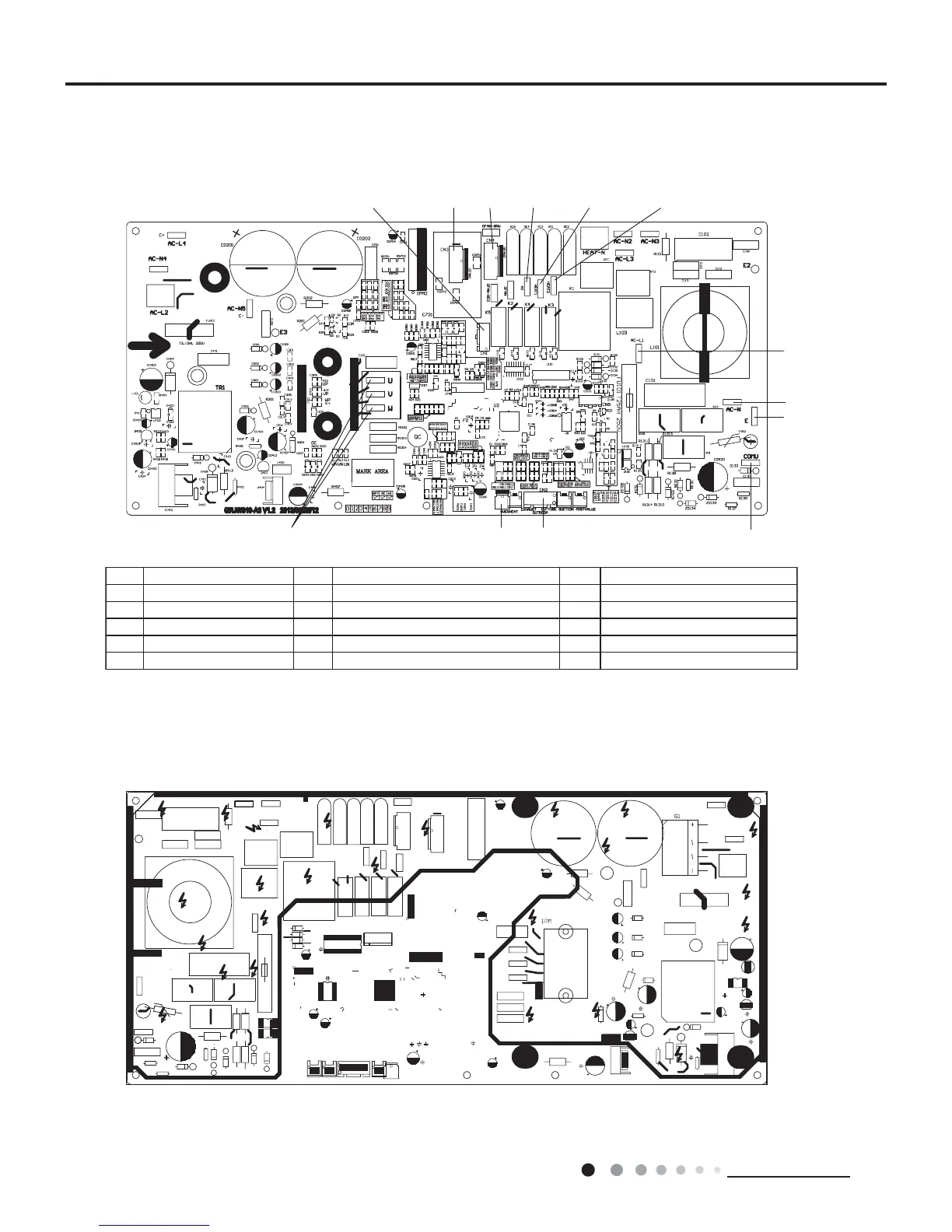

NO. Name NO. Name NO. Name
1 Compressor output port 6 Port of power neutral wire 11 Port of AC fan motor
2 Overload port 7
Live wire
12 Port of DC fan motor
3 Temperature sensor port 8 Port of compressor electric heating belt 13 Port of electronic expansion valve
4 Communication wire port 9 Port of compressor electric heating belt / /
5 Earthing wire port 10 Port of AC fan motor / /
GRJW819-A3 V1.2 2013/06/25/12
ƔTop view
Outdoor Unit
ƔBottom view
GWC09QC-A3DNA1D/O GWH09QC-A3DNA1D/O GWC12QC-A3DNA1D/O GWH12QC-A3DNA1D/O
