86
Installation and Maintenance
Service Manual

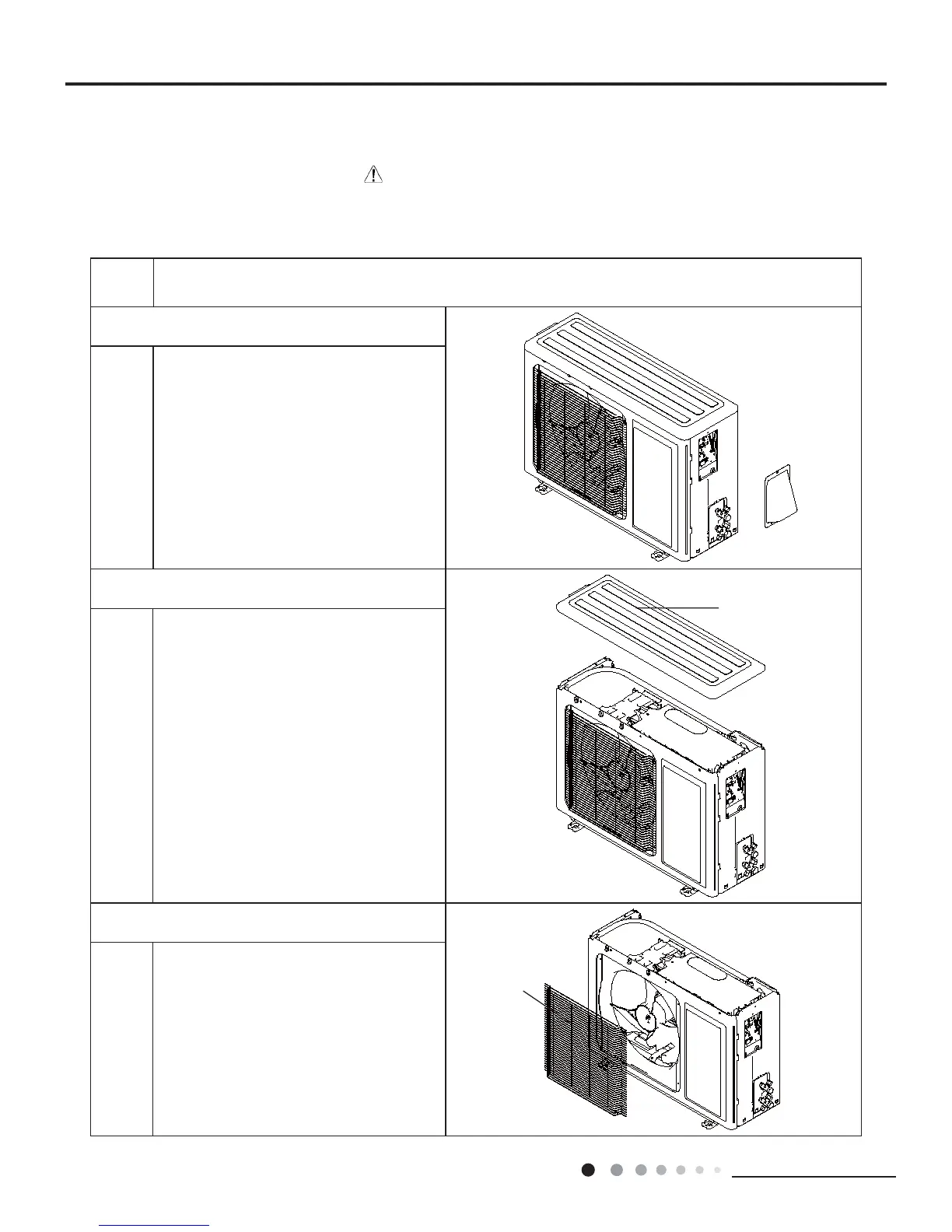

11.2 Removal Procedure of Outdoor Unit
ProcedureSteps
1.Remove panel
3.Remove front grille
2.Remove top cover
Open the front panel Push the rotor shaft on
both sides of the panel to make it separate
from the groove. Remove the panel.
Remove connection screws connecting the
top cover plate with the front panel and the
right side plate,and then remove the top
cover.
Remove connection screws between the
front grille and the front panel. Then remove
the front grille.
top cover
front grille
Warning: Be sure to wait for a minimum of 20 minutes
after turning off all power supplies and discharge the
refrigerant completely before removal.
To Next Page
