Gree GWC30QF-D3DNB4G - Indoor Unit; Outdoor Unit

11
Technical Information
Service Manual
53 9/64
12 53/64
10
11 19/32
3 1/2
1 37/64
13 25/32 1029 3/8
Φ2 3/4
Φ2 3/4

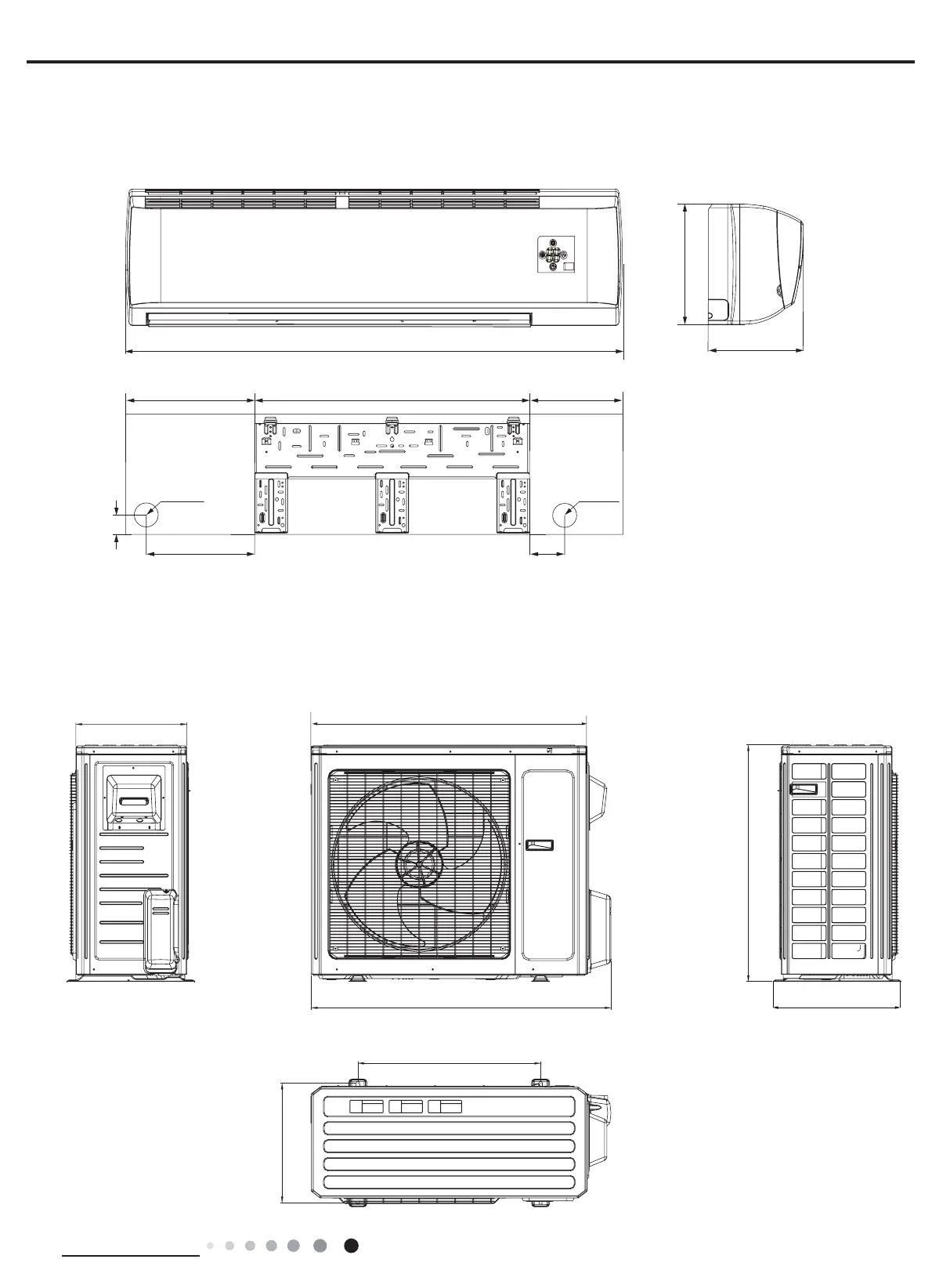

3. Outline Dimension Diagram
Unit:inch
3.2 Outdoor Unit
Unit:inch
14 37/64
31 7/64
16 13/16
15 9/16
39 1/2
24
36 2/9
3.1 Indoor Unit
GWC30LB-D3DNA3G/O VIRU30HP230V1AO
GWC36LB-D3DNA3G/O VIRU36HP230V1AO
