Gree GWH(09)KF-K3DNA6E/I - Page 12

9
Technical Information
Service Manual

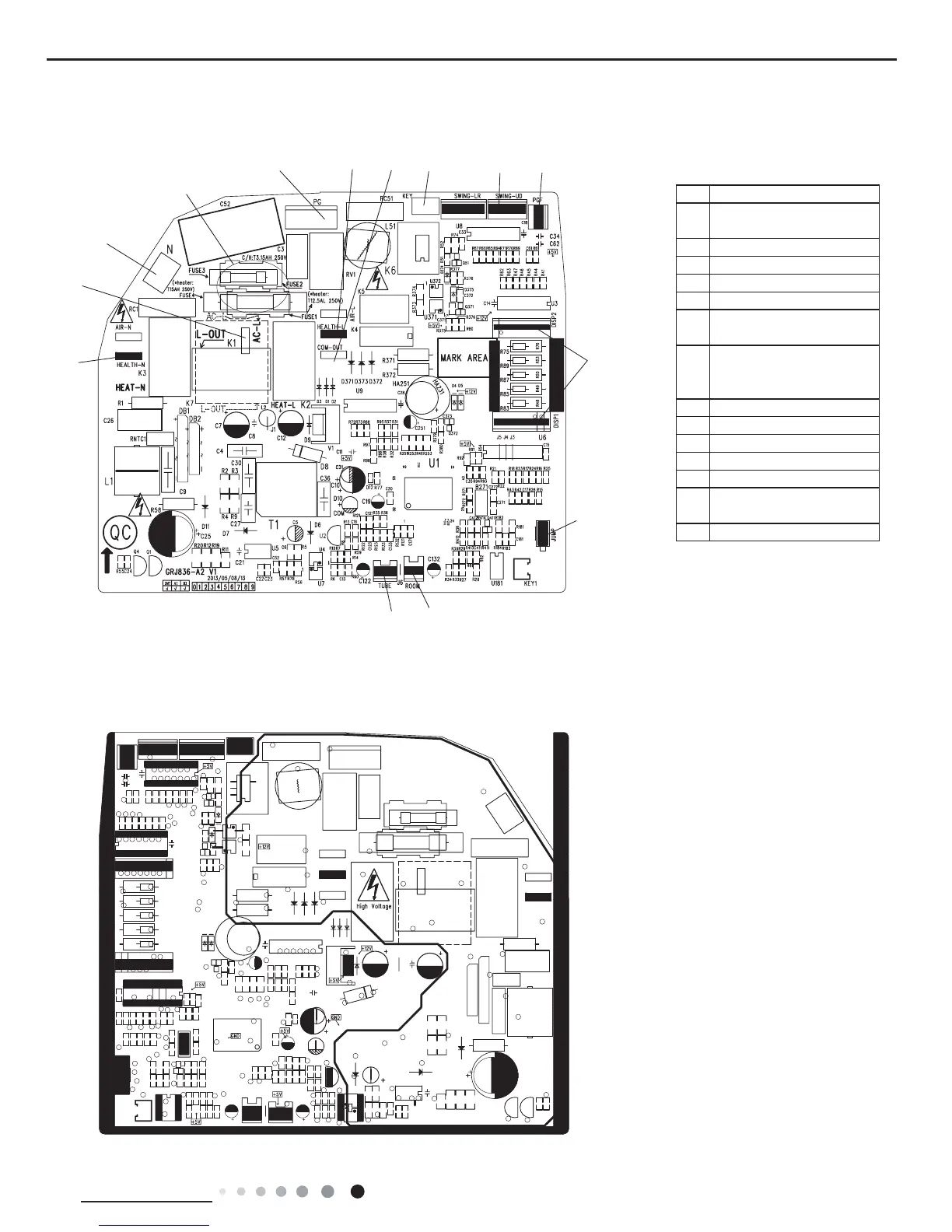

● Top view
● Bottom view
(2) 18K
No. Name
1
Interface of health function
neutral wire
2 Interface of live wire
3 Neutral wire
4 Fuse
5 PG motor
6
Interface of health function
live wire
7
Communication interface
between indoor unit and
outdoor unit
8 Auto button
9 Up&down swing
10 PG feedback
11 Display interface
12 Jumper cap
13
Ambient temperature
sensor
14 Tube temperature sensor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
