Gree GWH09AAB-K3DNA1A/I

7
Technical Information
Service Manual

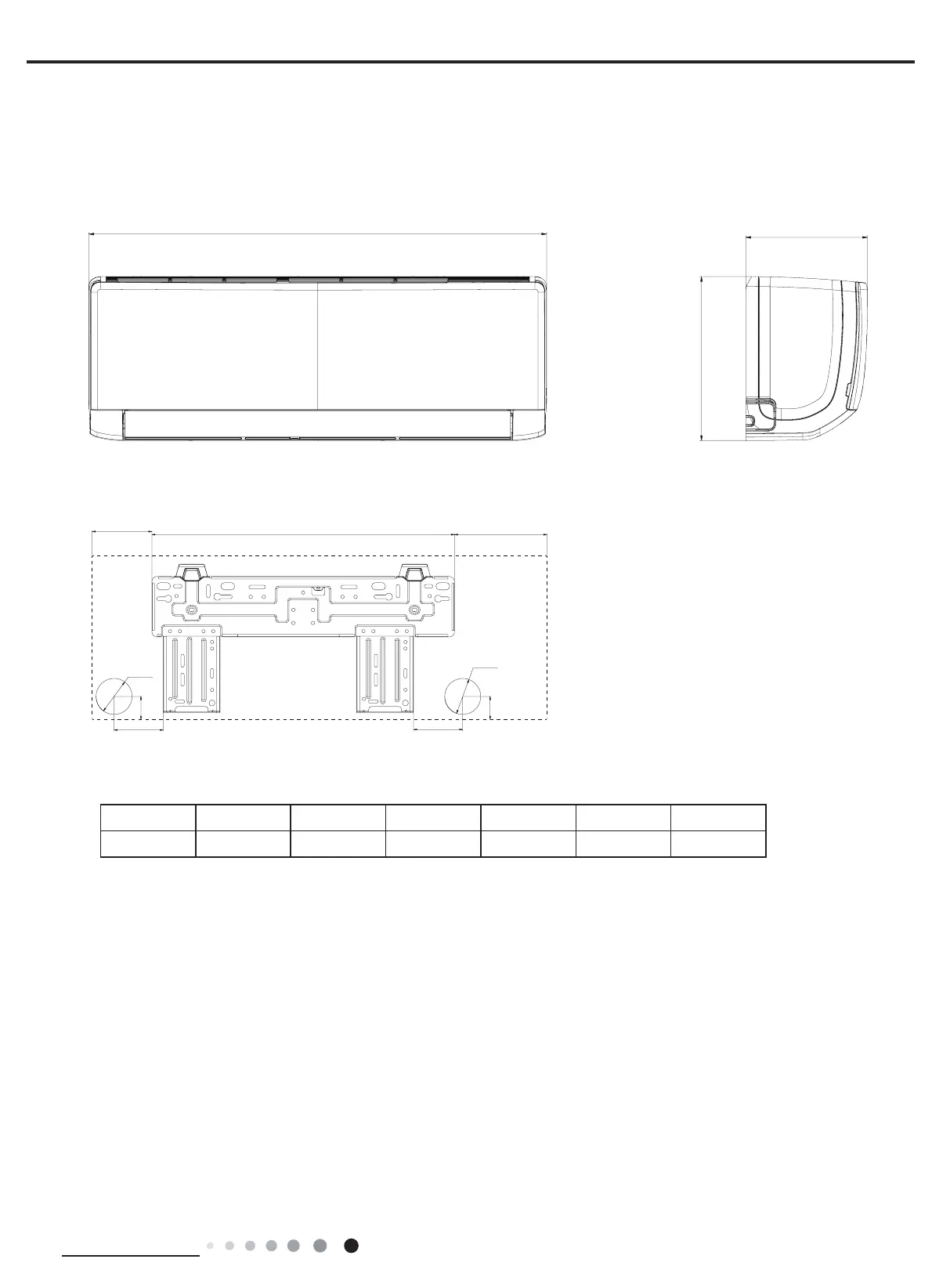

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
Models W H D W1 W2 W3
09K(AAB) 773 250 185 131 462 180
D
H
W
75
35
Φ55
W3W2
W1
Φ55
35
75
