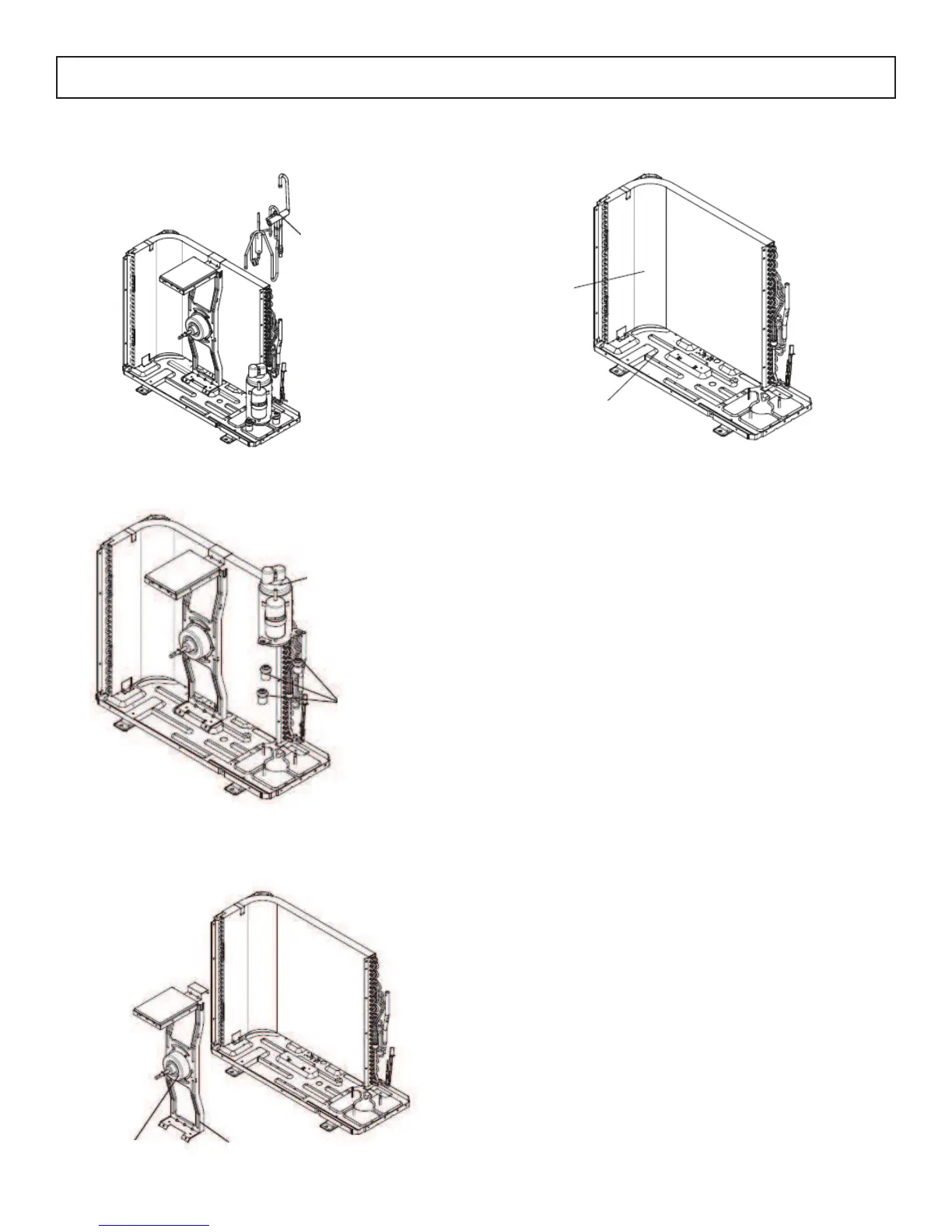

11. Remove 4-way valve
Properly remove refrigerant charge, then remove valve by heating
brazed joints and withdrawing pipe from valve.
13. Remove fan motor and support
Remove the 4 screws holding the motor, remove wire connector,
then remove the two screws holding the motor support bracket
14. Remove condenser
Remove the screws holding the condenser assembly and chassis,
then li and remove
12. Remove compressor
Remove the three screws holding the compressor.
Disassembly of Outdoor Unit
18,000 btuh Warning - Wait 10 minutes a er power is disconnected before starting disassembly.
Motor support
Fan Motor
Washers
Compressor
4-way Valve
Condenser
Chassis
