Schematic Diagram
27
1
23 4 5 6
7
8
9
10
11
1314 12

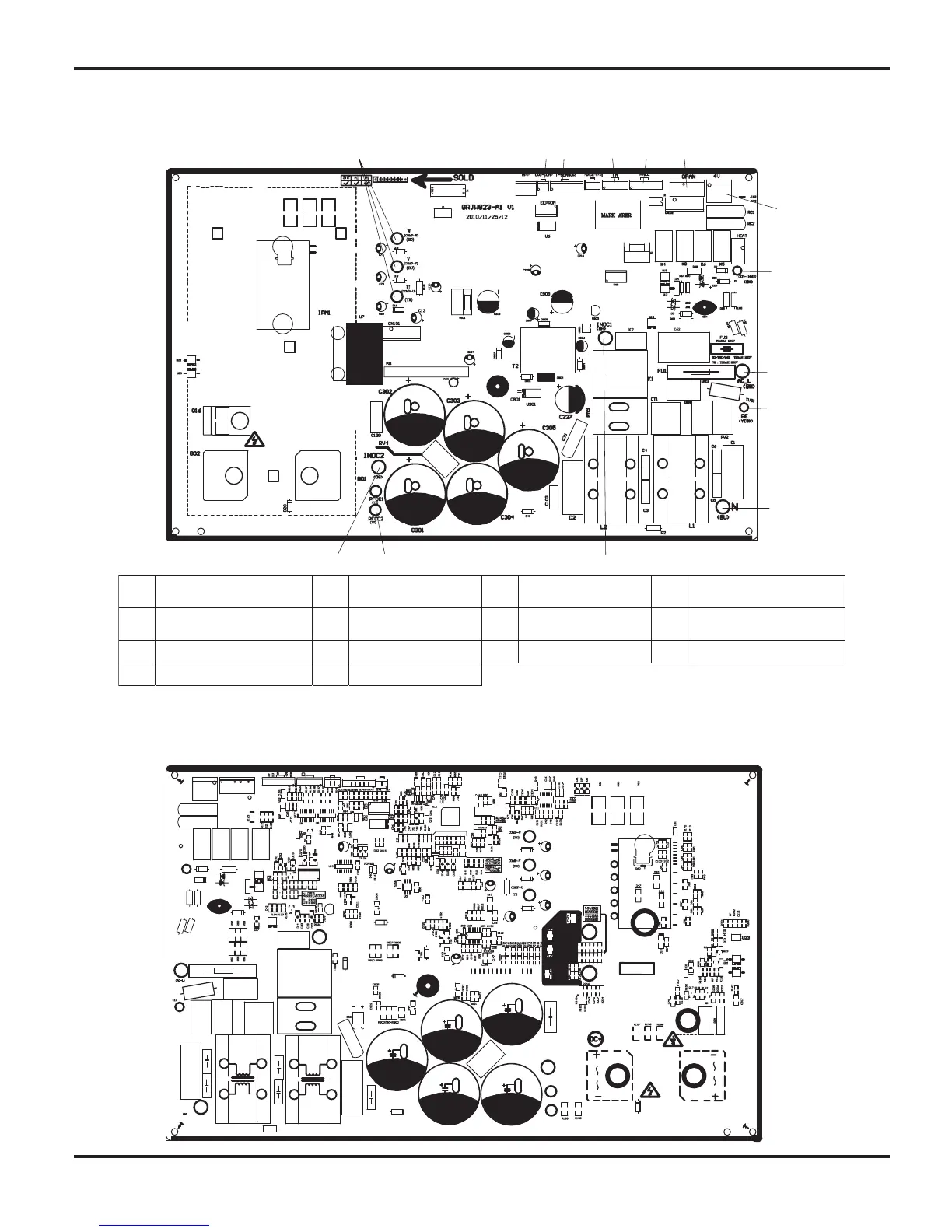

1 Compressor interface 2
Compressor overload
protector
3 Temperature sensor 4 Electric expansion valve
5 Fan HALL interface 6 Outdoor fan 7 4-way valve 8
Communication interface
with indoor unit
9 Live wire 10 Earthing wire 11 Neutral wire 12 Reactor interface 1
13 PFC capacitor interface 1 14 Reactor interface 2
Ɣ TOP VIEW
Ɣ BOTTOM VIEW
Ɣ Outdoor unit(24k)
