Step Procedure

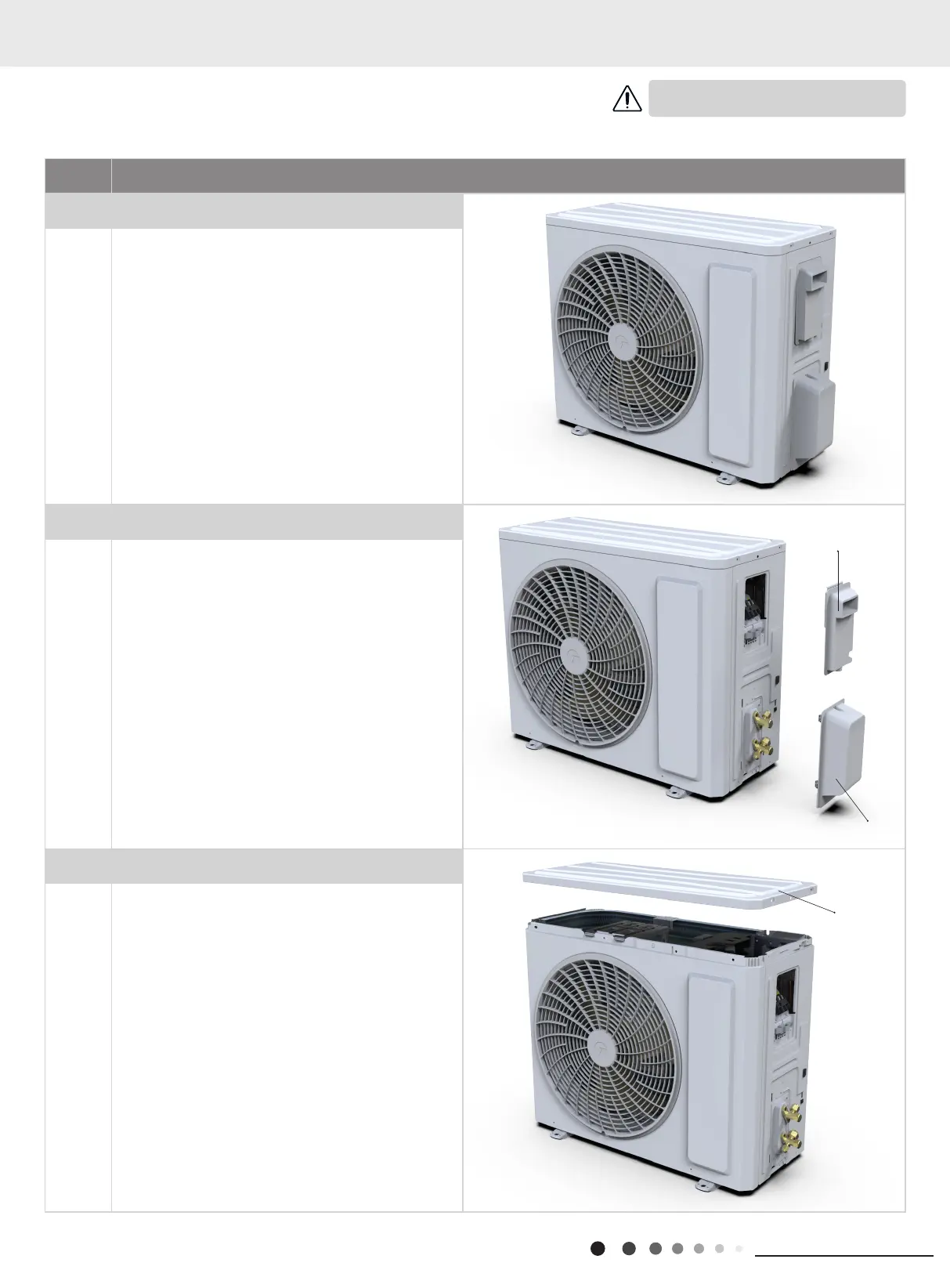

1. Before disassembly
2. Remove big handle and valve cover
Remove the connection screw xing the big handle and
then remove the valve cover.
3. Remove top cover
Remove connection screws connecting the top panel
with the front panel and the right side plate, and then
remove the top panel.
GWH09AFC-K6DNA2F/O GWH12AFC-K6DNA2F/O GWH18ALD-K6DNA1A/O
11.2 Removal Procedure of Outdoor Unit
Caution: discharge the refrigerant
completely before removal.
big handle
valve cover
top cover
To Next Page
