37
Technical Information
Service Manual

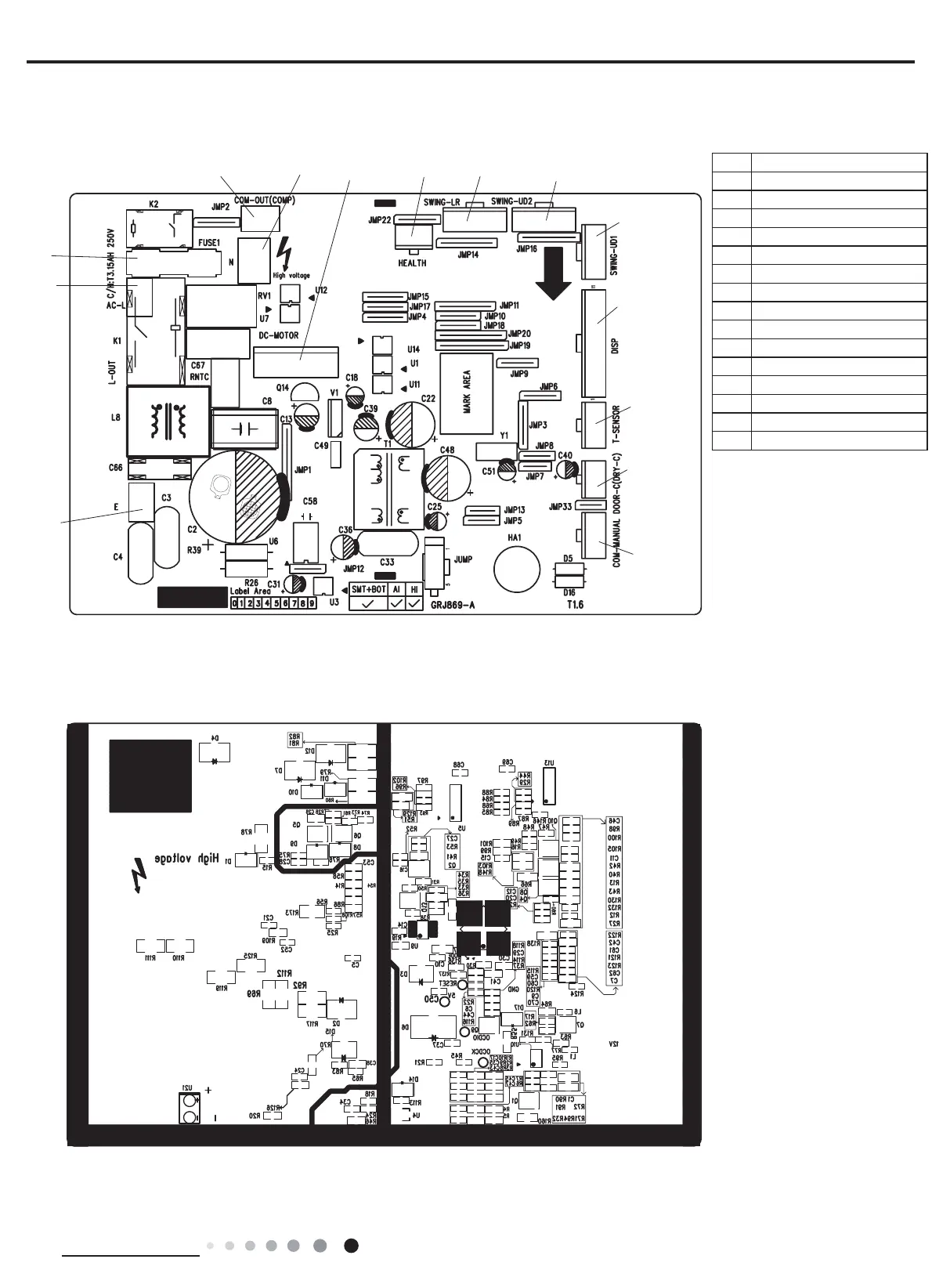

● Bottom view
● Top view
No Name
1 Fuse
2 Live wire
3 Neutral wire
4 Dommunication wire
5 DC fan
6 Cold plasma
7 Left&right swing
8 Up&down swing 2
9 Up&down swing 1
10 Interface of display board
11 Temperature sensor
12 Door control
13 Wired controller
14 Earthing wire
15 Terminal of live wire
GWH24AGD-K6DNA1A/I
1
3
45
67
8
9
10
11
12
13
14
15
