Outdoor Unit

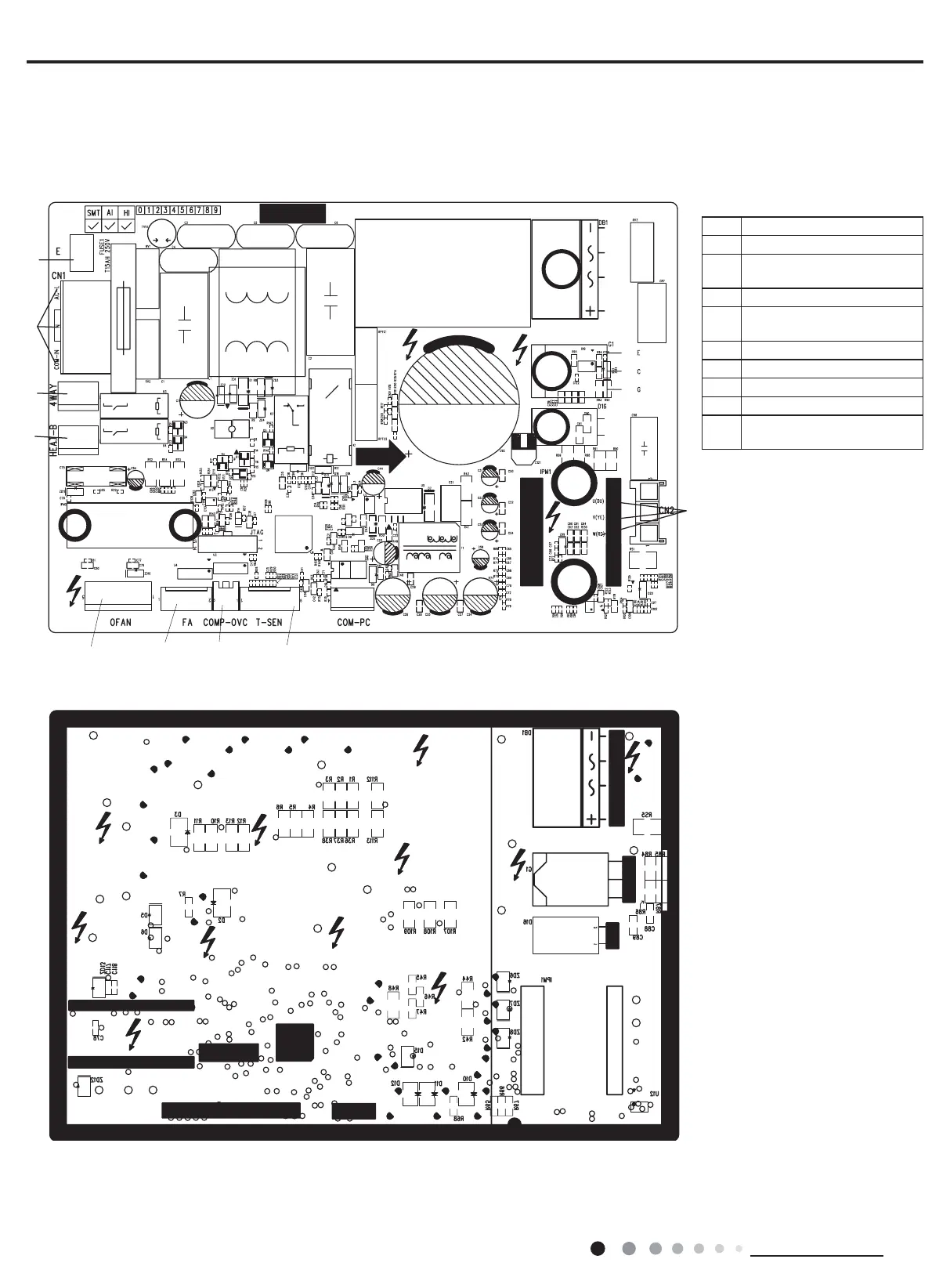

● Bottom view
● Top view
*5-:$
1
2
3
4
5
6
7
8
9
No Name
1 Earthing wire
2
Neutral wire, live wire and
communication cable
3 4-way valve
4
electric heating belt of
chasssis
5 Outdoor fan
6 Electronic expansion valve
7 Overload
8 Temperature sensor
9
Three-phase terminal of
compressor
