Gree LIVS36HP230V1CH - 6. Function and Control

27
Technical Information
Service Manual

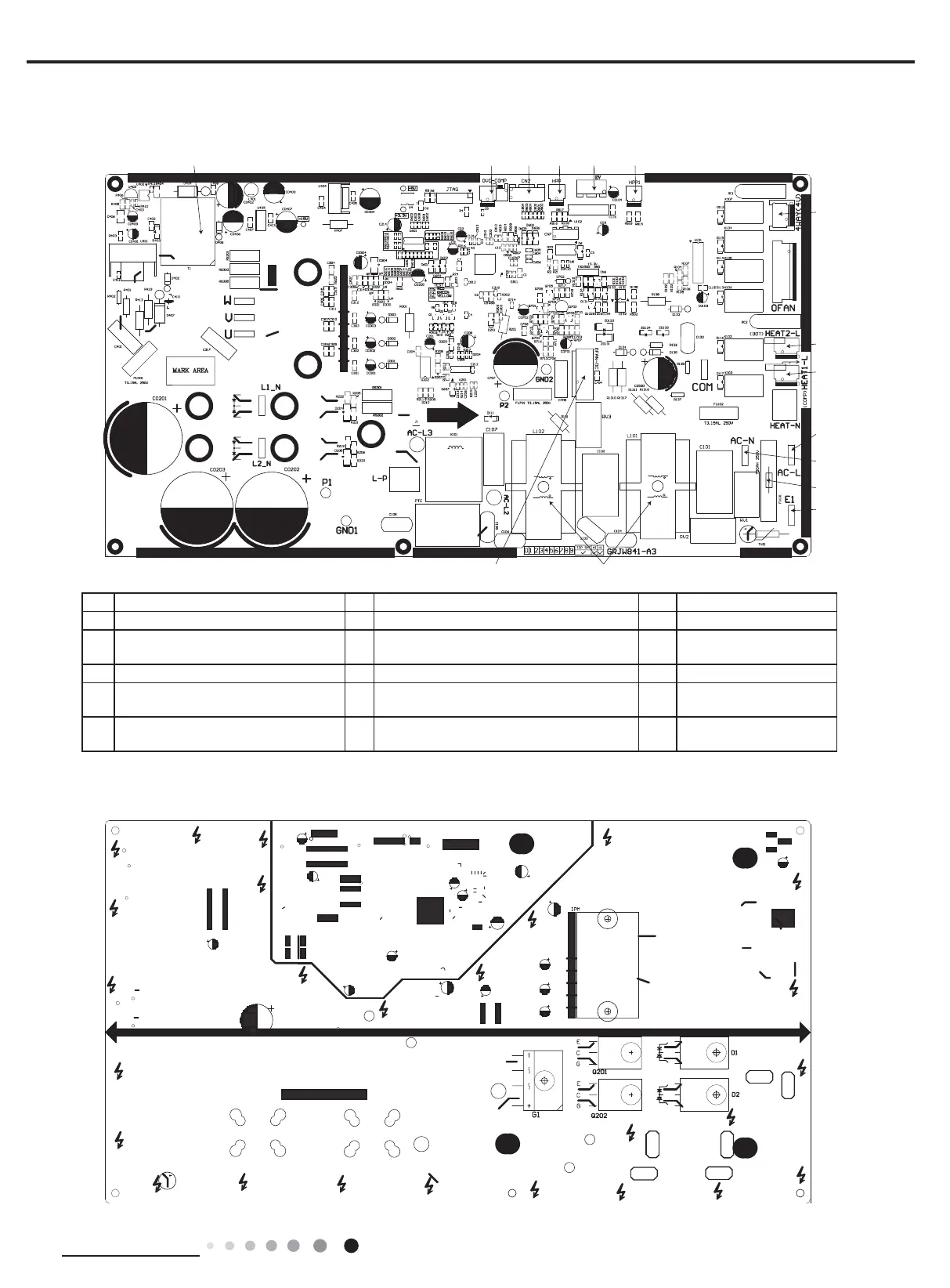

● Top view
● Bottom view
No. Name No. Name No. Name
1 High-frequency transformer T1 6 High pressure protection terminal HPP1 11 Terminal of neutral wire
2
Overload protection terminal of
compressor OVC-COMP
7 Terminal of 4-way valve 12 Protective tube FU101
3 Terminal of temp sensor CN2 8 Electric heater band of chassis HEAT2-L 13 Terminal of ground wire
4
High pressure protection terminal
HPP
9
Electric heater band of compressor
HEAT1-L
14 Choke L 101 and L102
5
Electronic expansion valve terminal
EV
10 Terminal of live wire 15
Terminal of outdoor fan
OFAN-DC
1 2345 6
7
8
9
10
11
12
13
1415
Outdoor Unit
GWC30LB-D3DNA3G/O VIR30HP230V1BO VIR36HP230V1CO(CB432W08100)
LIVS36HP230V1CO GWC36LB-D3DNA3G/O VIR36HP230V1BO
