3. Fix power connection wire by wire clamp.
4.
5.
1.
Ensure wire has been fixed well.
Install the handle.
Air-conditioner Air switch capacity
MULTI24HP230V1EO 25A
Remove the handle at the right side plate of the
outdoor unit (one screw).
Remove the cable clamp, connect the power
connection cable with the terminal at the row of
connection and fix the connection. The fitting line
distributing must be consistent with the indoor
unit. terminal of line bank. Wiring should meet
that of indoor unit.
Note: The above figures are only intended to be a simple
diagram of the appliance and may not correspond to the
appearance of the units that have been purchased.
An all-pole disconnection switch having a contact
separation of at least 3mm in all pole should be
connected in fixed wiring.
The appliance shall be installed in accordance with
national wiring regulations.
Including an air switch with suitable capacity,
please note the following table. Air switch
should be included magnet buckle and heating
buckle function, it can protect the circuit-short
and overload. (Caution: please do not use the
fuse only for protect the circuit)
Wrong wire connection may cause malfunction of
some electric components.After fixing cable, ensure
that leads between connection to fixed point have
some space.
The connection pipes and the connection wirings
of the unit A, unit B and unit C must be corresponding
to each other respective.
INSTALLER
8
INDOOR UNIT A
A
INDOOR UNIT B
3 32 32
N(1)
2
black
(brown)
B
N(1)
INDOOR UNIT C
C
N(1)
To the power supply
To unit BTo unit A
connecting
To unit C
cable
connecting
connecting
cable
cable
L2L1
POWER
white
(blue)
white red
(blue)
green
L1 L2
(yellow-green)
green
(yellow-green)
black
(brown)
white red
(blue)
green
(yellow-green)
black
(brown)
white red
(blue)
green
(yellow-green)
(brown)
black
Power cord
L1 L2

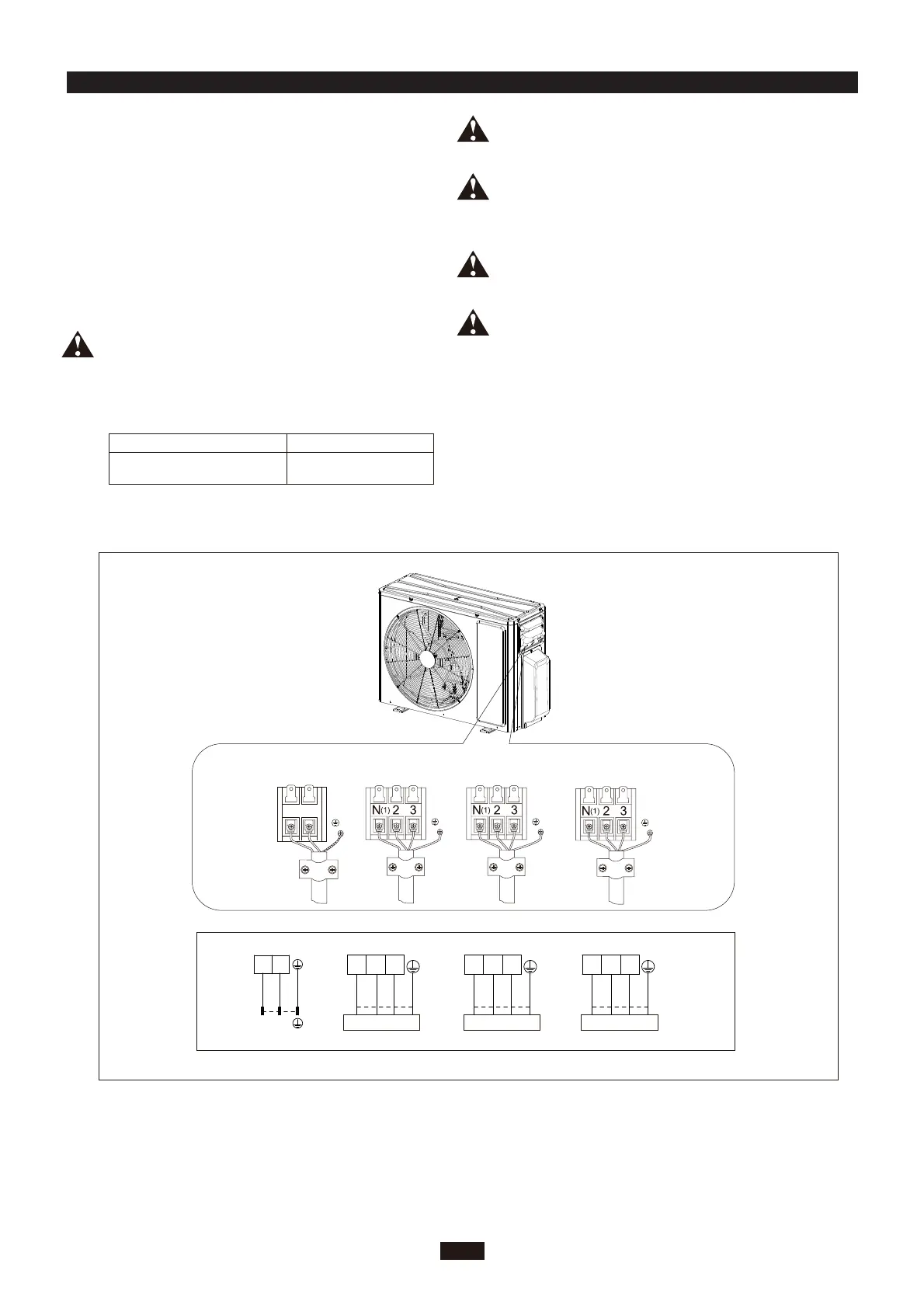

ELECTRICAL CONNECTIONS
