GREE U-Match 6 SERIES UNIT SERVICE MANUAL
102

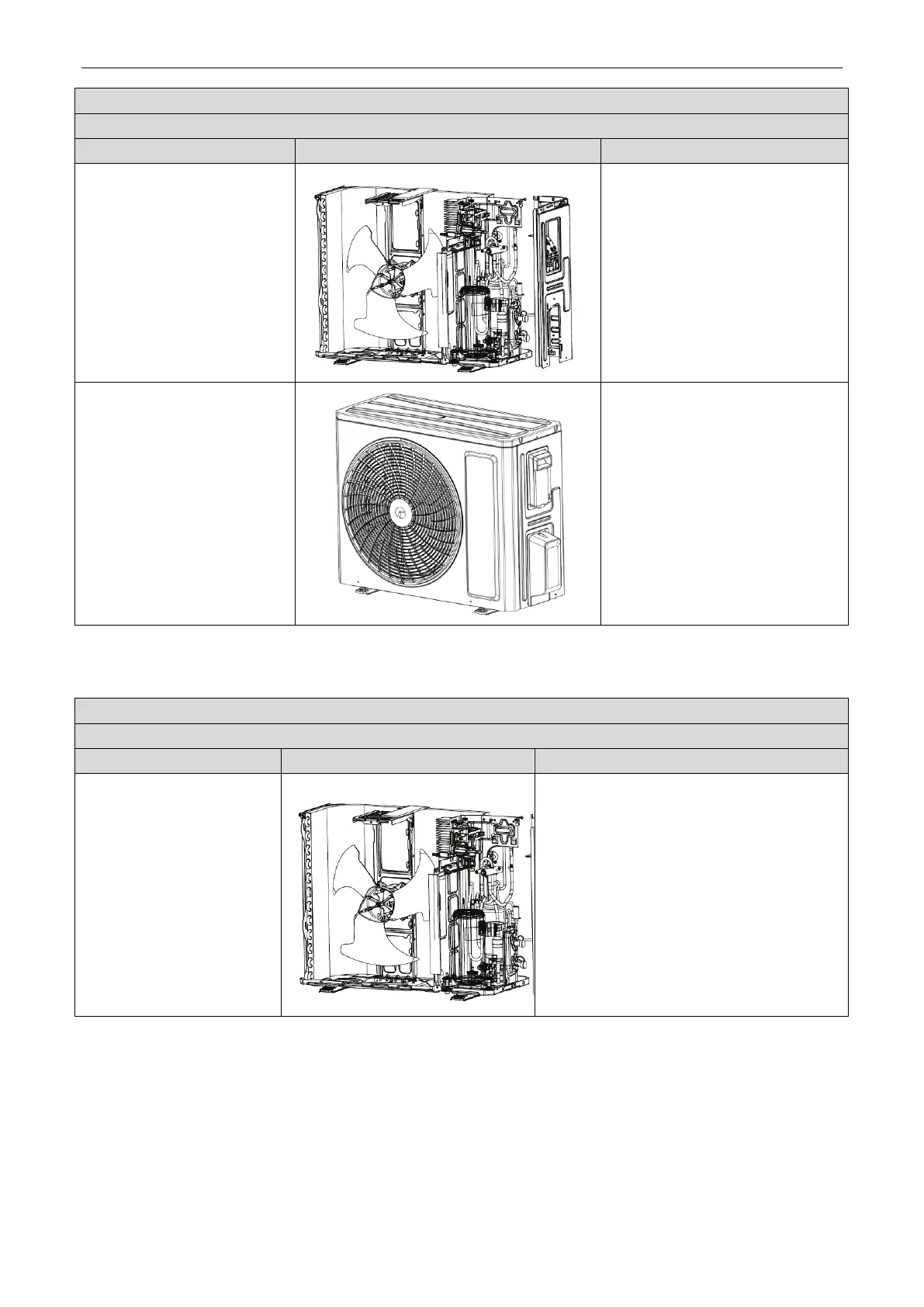

Removal of condenser
Note: Before removing the condenser, make sure there is no refrigerant in the pipeline and power is cut off.
Step Picture Work instruction
7. Secure the electric box and
arrange the wires
according to the
requirement.
 Put the electric box in place and
tighten up the screws of electric
box.
 Arrange and secure the wires
as original.
8. Check and open the upper
and side panels.
 Check whether each
component and connection wire
is well connected.
 If everything is OK, place back
the upper, left and right side
panels.
Model: GUD35W1/NhA-S,GUD50W1/NhA-S,GUD71W1/NhA-S,GUD85W1/NhA-S
Removal of electronic expansion valve
Note: Before removing the electronic expansion valve, make sure there is no refrigerant in the pipeline and power is cut off.
Step Picture Work instruction
1. Loosen the wire clamp at
the bottom of the electric
box and the screws of
electric box.
 Remove the upper, lower and front panels.
 Loosen the wire clamp at the bottom of the
electric box.
 Unscrew the screws of electric box.
