169
Installation and Maintenance
Service Manual
Step Procedure

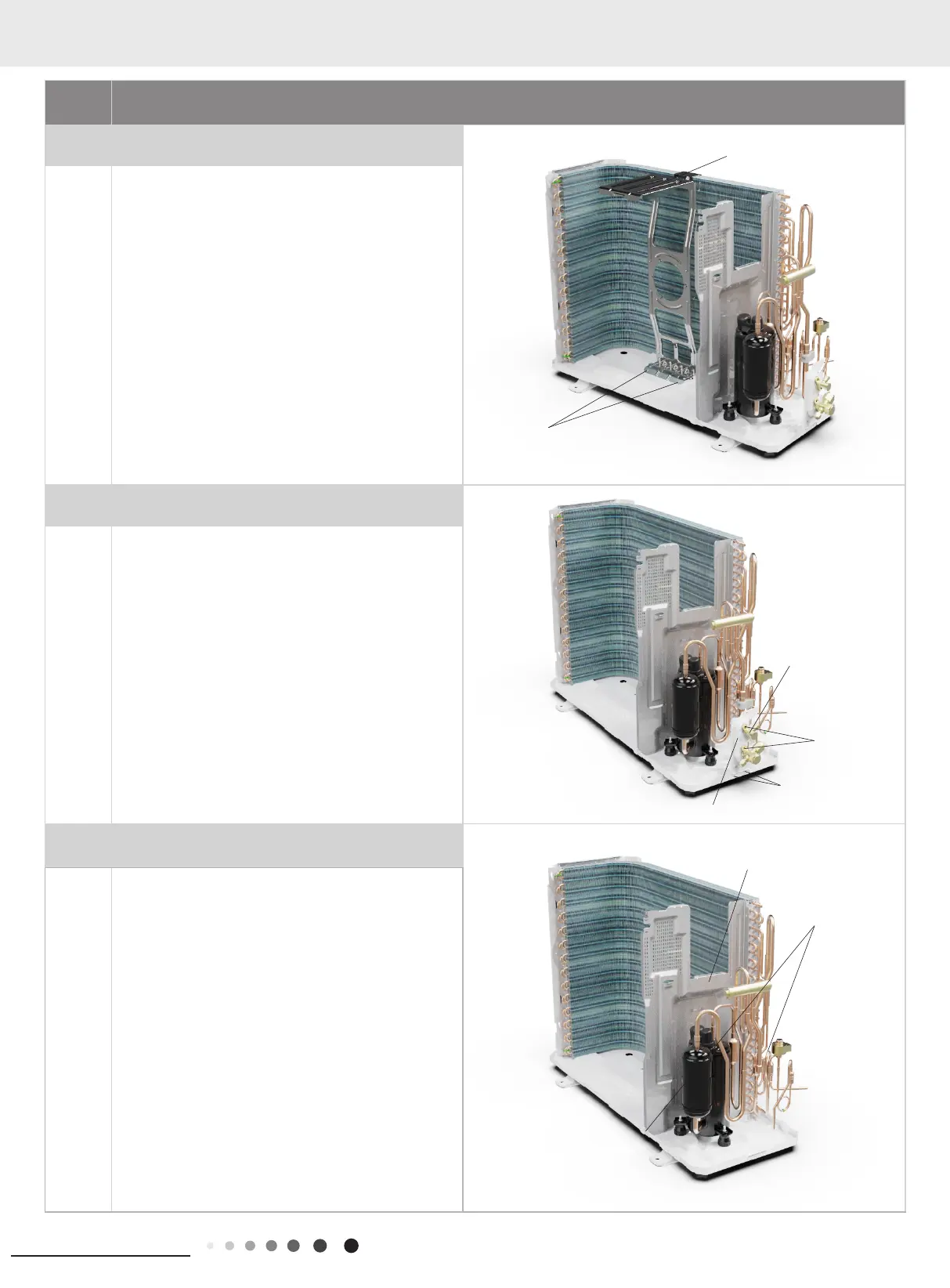

10. Remove motor support
Remove screws fixing the motor support and then
remove the motor support.
11. Remove cut off valve and valve support sub-assy
Remove screws fixing the cut off valve and then
remove the cut off valve;
Remove screws fixing the valve support subassy and
then remove the valve support subassy.
Note:
When pulling out the wiring terminal, pay attention to
loose the clasp and don’t pull it so hard.
12. Remove isolation sheet
Remove the screws xing the isolation sheet and then
remove the isolation sheet.
motor support
screws
cut off valve
screws
screws
valve support sub-assy
screws
isolation sheet
To Next Page
