170
Installation and Maintenance
Service Manual
Step Procedure

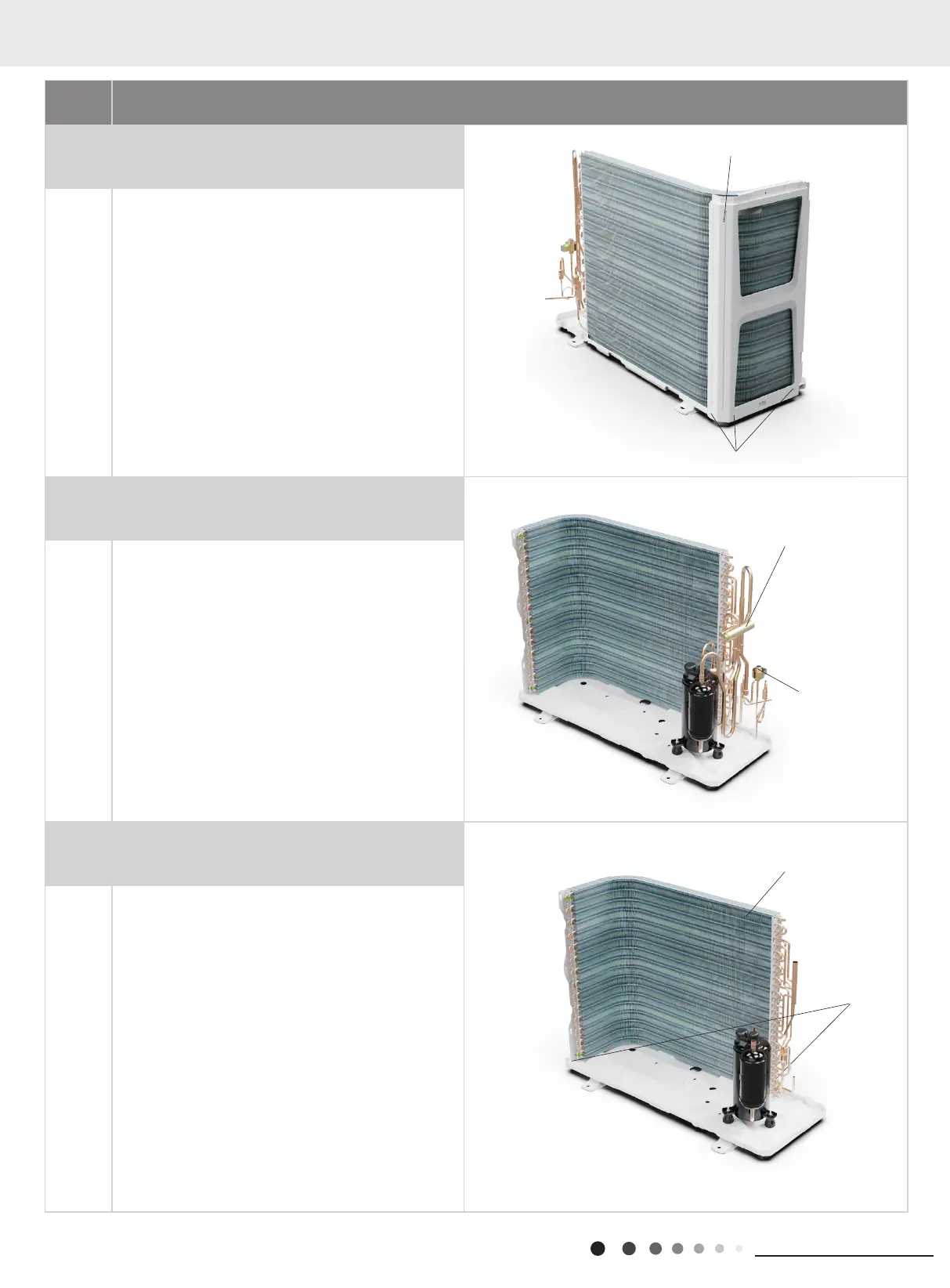

13. Remove left side plate
Remove the screws fixing the left side plate and the
chassis, and then remove the left side plate.
14. Remove 4-way valve assy and
electronic expansion valve assy
Unsolder the welding joints connecting electronic
expansion valve assy the 4-way valve assy with
capillary sub-assy, compressor and condenser; remove
the electronic expansion valve assy and 4-way valve.
Note:
Before unsoldering the welding joint, wrap the 4-way
valve with a wet cloth completely to avoid damage to
the valve caused by high temperature.
15. Remove condenser sub-assy
Remove the screws xing the condenser and chassis,
and then lift the condenser upwards to remove it.
left side plate
screws
4-way valve assy
electronic
expansion
valve assy
condenser sub-assy
screws
To Next Page
