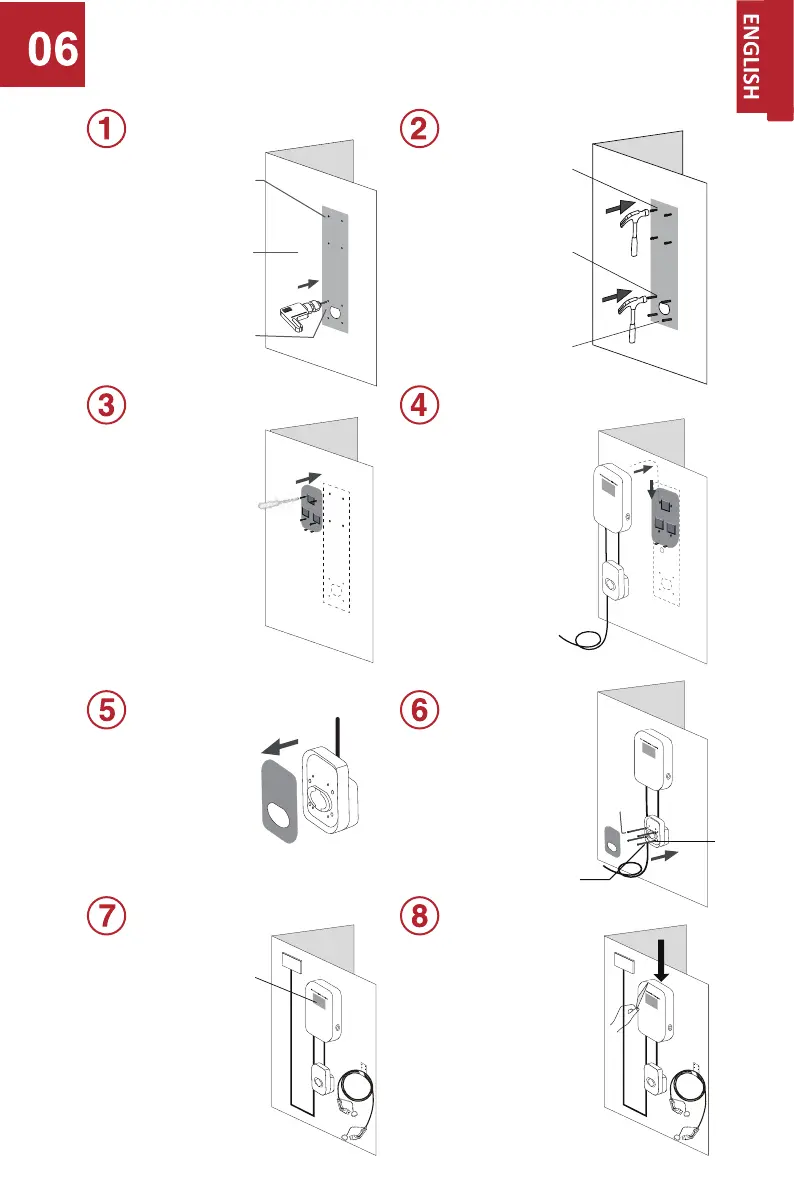

Installation Guide
REFERENCE PAPER
of installing screw hole size
Hammer the
30mm PLASTIC BOLTS
into the holes
Hammer the
30mm METAL BOLTS
into the holes
Take down the
REFERENCE PAPER
from the wall later
Take out the plate from
the body of charging
SOCKET
Connect the inlet cable and
the power supply correctly
This is the final completion pic,
you can put the HOOK
anywhere you need
Drill the holes according to
the REFERENCE PAPER
Fix the PLATE with
30mm SCREWS on the wall
Embed STATION
into PLATE on the wall
Fix the SOCKET on the wall
with95mm SCREWS
by ALLEN KEY
and put the plate back to the
body of SOCKET
Screw Shim
Wall
The cable can be hung on the
HOOK
95mm SCREWS
Tear off the protector
