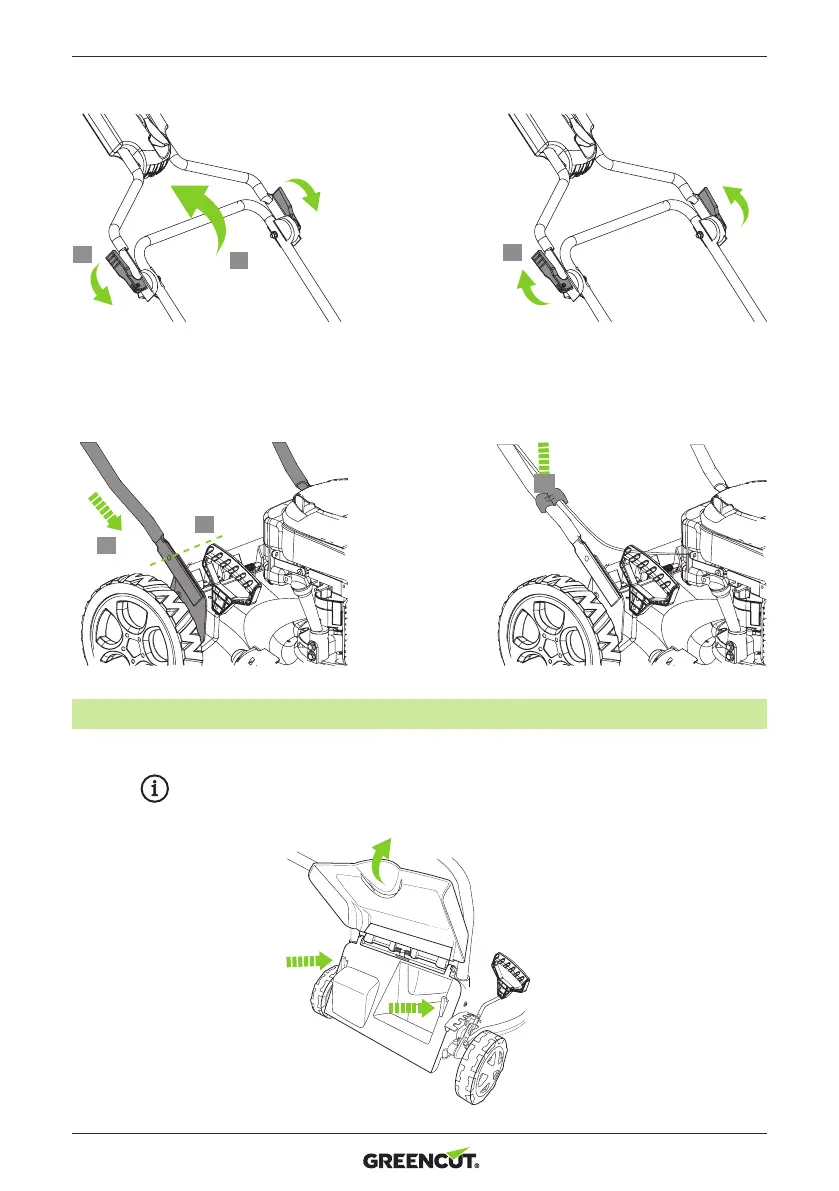

3. Make sure the cables are on the top of the handlebar, and then place the ends of the handlebar in position
with the assembly brackets (4)
4. Insert the bar xing screws through the second hole in each leg of the bar from the inside, then secure the bar
with the bar xing nuts (5). Tighten the nuts rmly (clockwise).
5. Once the handlebar is secured, check that all the cables are positioned correctly, without kinks, etc., and
secure them to the bar with any of the supplied clips (6).
GRASS CATCHER INSTALLATION
Secure the plastic hooks under the fabric part of the grass catcher in the steel tube.
NOTE: The lawn mower is equipped with a ll indicator. It is a plastic ap that is located on the
back of the product. When the basket is not full, the ap is raised; when it is closed it indicates that
the basket must be emptied.
