USING THE PRODUCT
TILLER CONTROLS
CLUTCH ACTUATION (2)
Push the clutch actuator to transfer the engine movement to the gearbox, remember to lower the engine speed
before actuating the clutch.
The clutch actuator acts as a safety device when using the tool in reverse, do not use your power tiller if this device is
damaged and/or does not operate properly.
GEAR SELECTOR (3)
Methodology of use:
a) Lower the engine speed to idle using the accelerator (1).
b) Set the gear selector (3) according to the type of work and ground conditions.
c) Increase the engine speed to an average speed using the accelerator (1).
d) Push down on the clutch actuator (2) and increase the engine speed until the appropriate engine speed is
reached.
e) To change gear, repeat steps a, b, c and d.
HORIZONTAL HANDLEBAR ADJUSTMENT (4)
Allows lateral orientation of the handlebars; the handlebar release is obtained by turning the cam (4) counterclockwise
and clockwise for locking in the desired position.
VERTICAL ADJUSTMENT OF THE HANDLEBAR (5)
Allows vertical adjustment of the handlebars; releasing the handlebars is achieved by turning the cam (5)
counterclockwise and clockwise for locking in the desired position.
ENGINE START
NOTE: For all information regarding the engine, please refer to the manual regarding its use and
maintenance.
ATTENTION: Oil bath air lter - The new machine comes assembled with the air lter without the
oil included. Before use, it is sufcient to top up with motor oil to the indicated level.
7
2
3

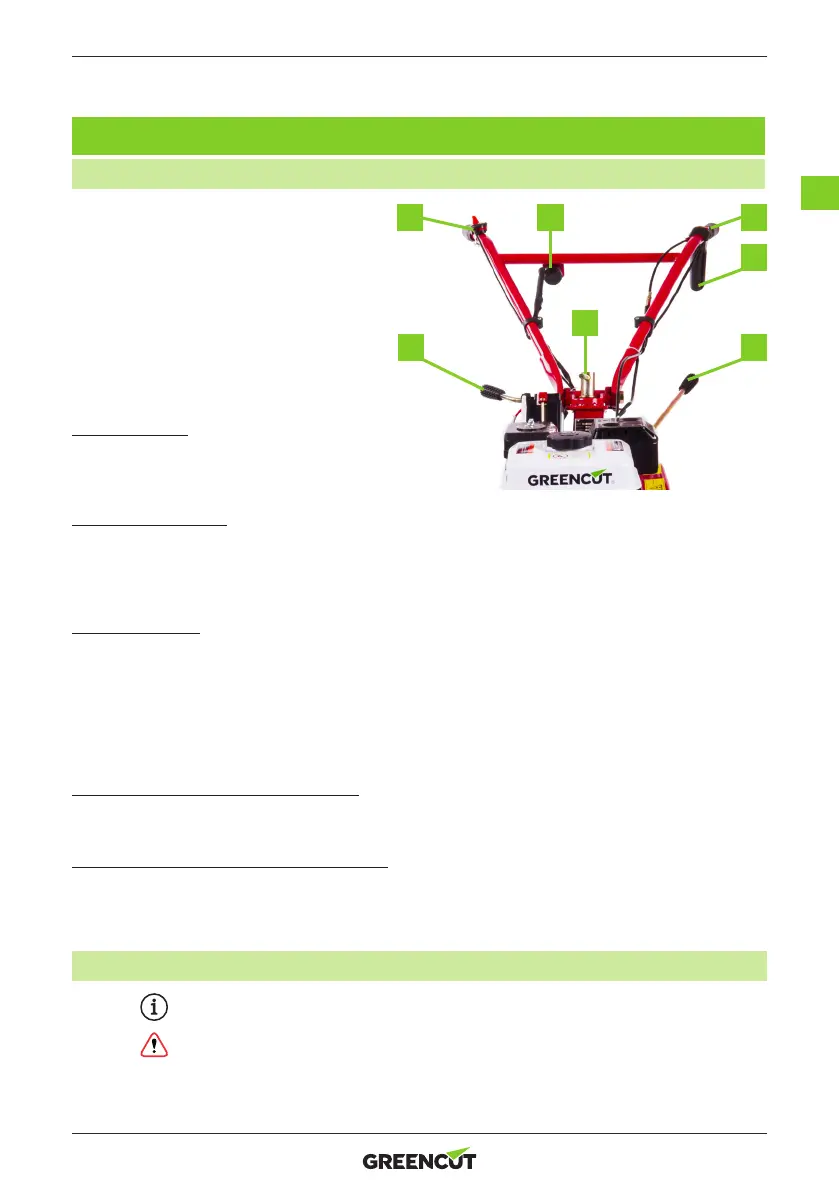

1. Accelerator
2. Clutch actuation
3. Gear selector
4. Handlebar horizontal adjustment
5. Vertical adjustment of the handlebars
6. Clausor
7. On/off switch
ACCELERATOR (1)
- Left: minimum engine speed.
- Right: maximum engine speed.
